Benefits of your new heim joints.

Includes Joints, Jam nuts, tube adapters and spacers

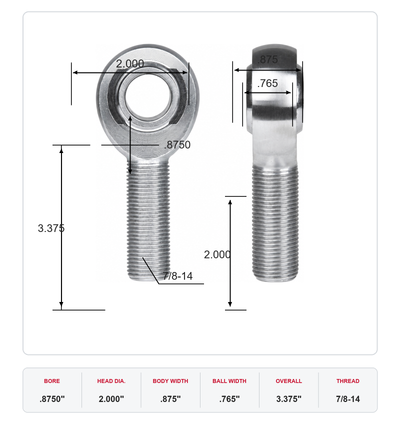

Left and right hand 7/8' bore with 7/8" shank heim joints
Left and right Tube Adapters fit 1.25" ID tube
Misalignment spacers for 5/8" bolt
2.5" mounting width
Left and right Jam nuts
44,000 pound load rating.
Never needs grease
Left and RIght hand, full kits.

They are heat-treated and hard chrome plated to give you a better finish for longer.
The race is Teflon impregnated nylon for superior durability.
These rod ends have a 7/8” Shaft with 14tpi.
The 7/8” bore is the strongest way to make this heim.
The included zinc-coated misalignment spacers reduce that down to a 5/8” standard bolt.
The included jam nut is zinc coated for superior durability.
Also included is the 1.25” ID tube adapter.
They will fit snugly in any 1.25” ID tube.

These HeimJoints.net joints area great fit for your rock crawler Jeep Toyota Buggy or any project you may be building.
Common uses are steering joints and link joints on hot rods drag racing 4-link lowrider or custom builds.

.875" 7/8" Rod End Heim joint kit left and right thread 5/8" bolt
