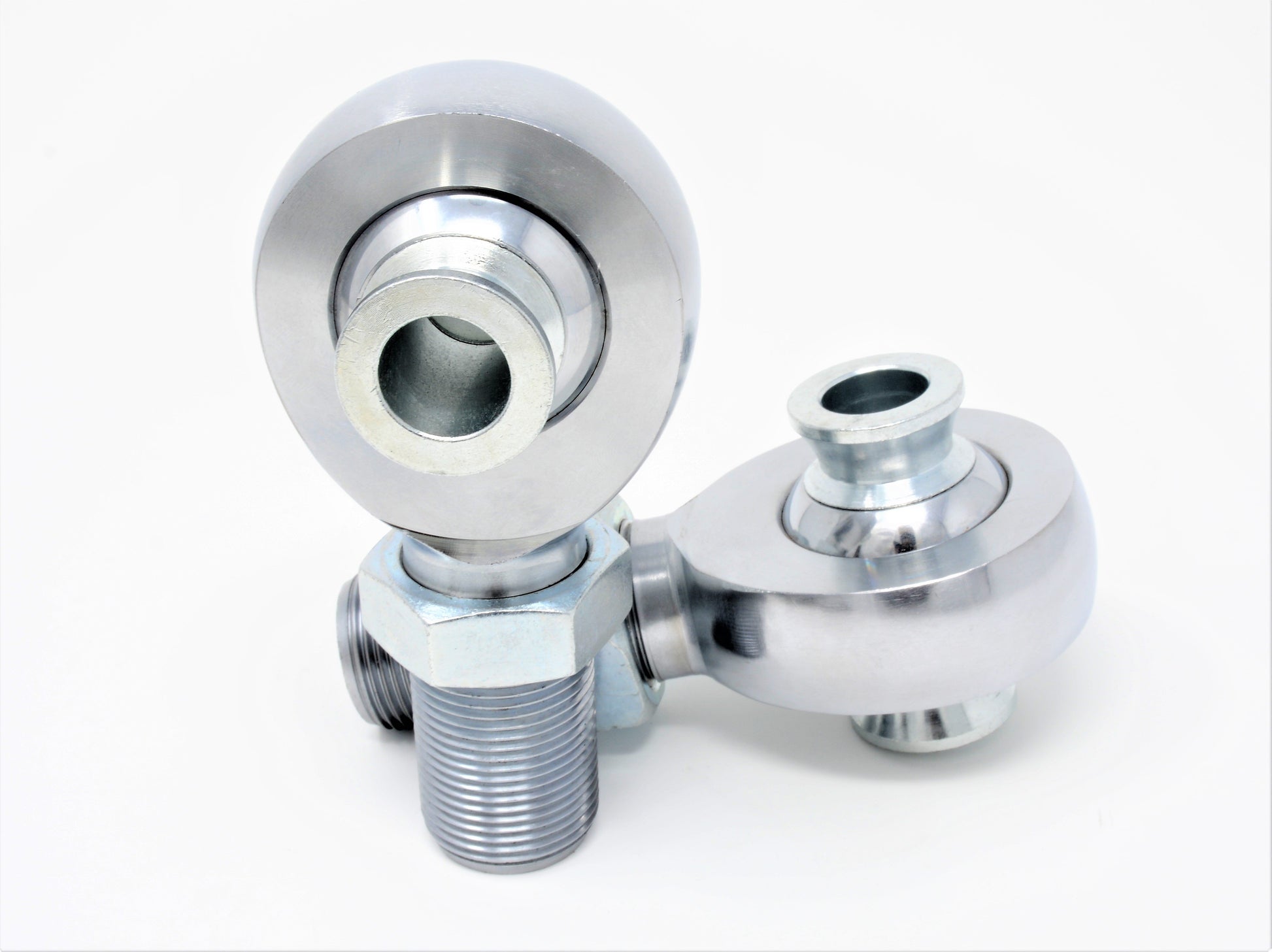

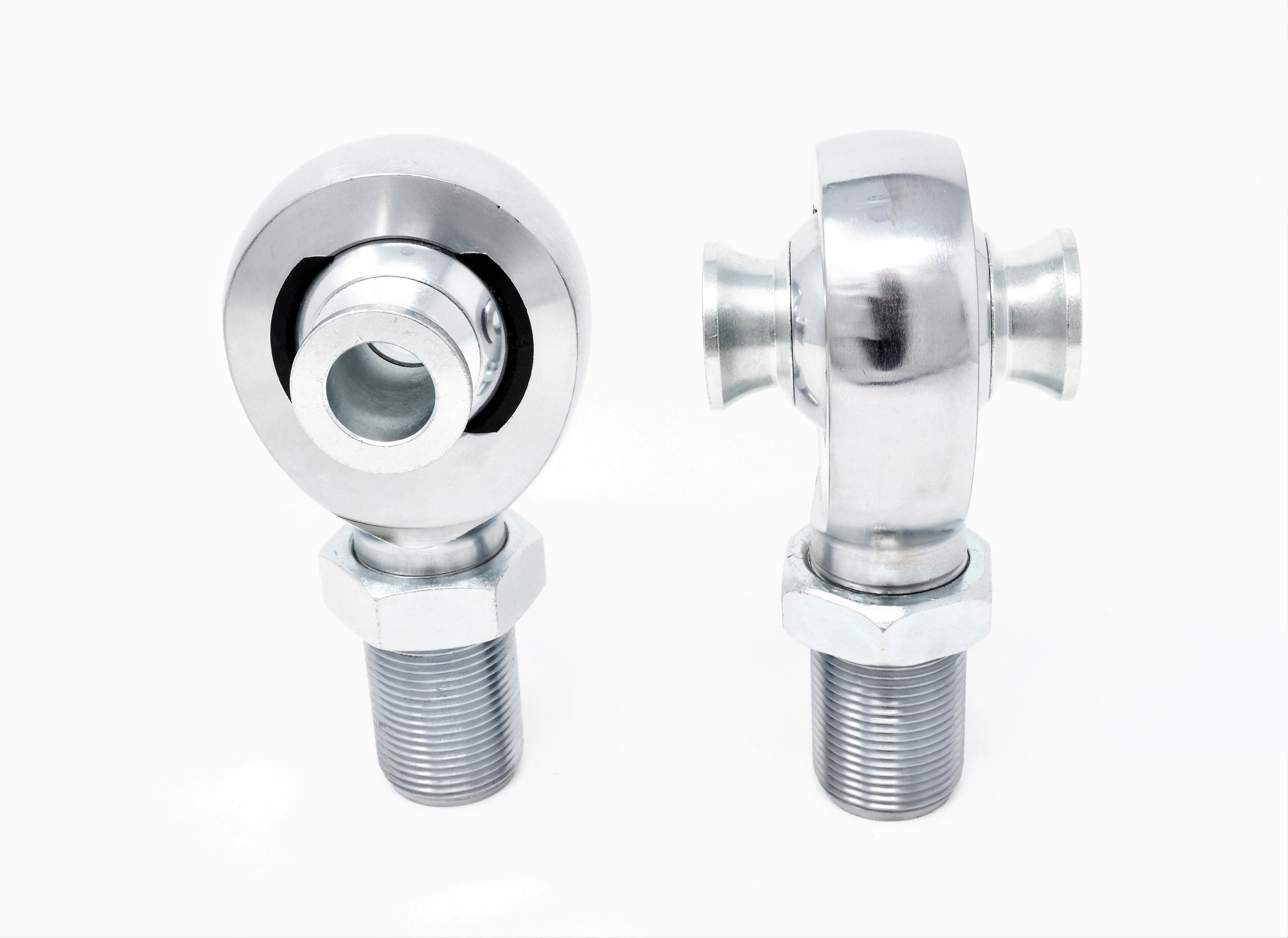

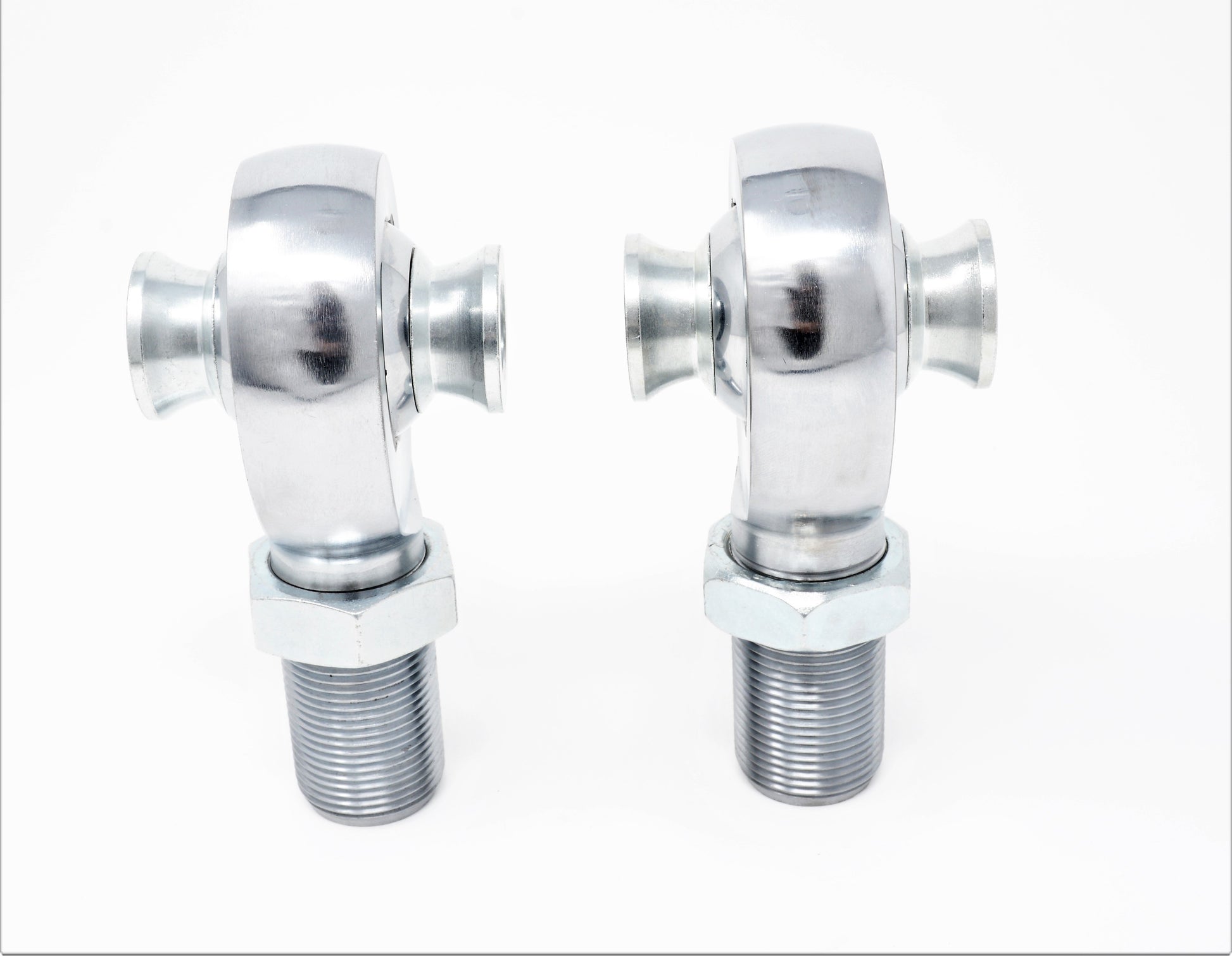

1.25” Rod End Heim Joint Aluminum Link KIT Left and Right thread

1.25” Rod End Heim Joint Aluminum Link KIT Left and Right thread

Regular price $105.00 USD
Regular price Sale price $105.00 USD
Sale Sold out
Shipping calculated at checkout.

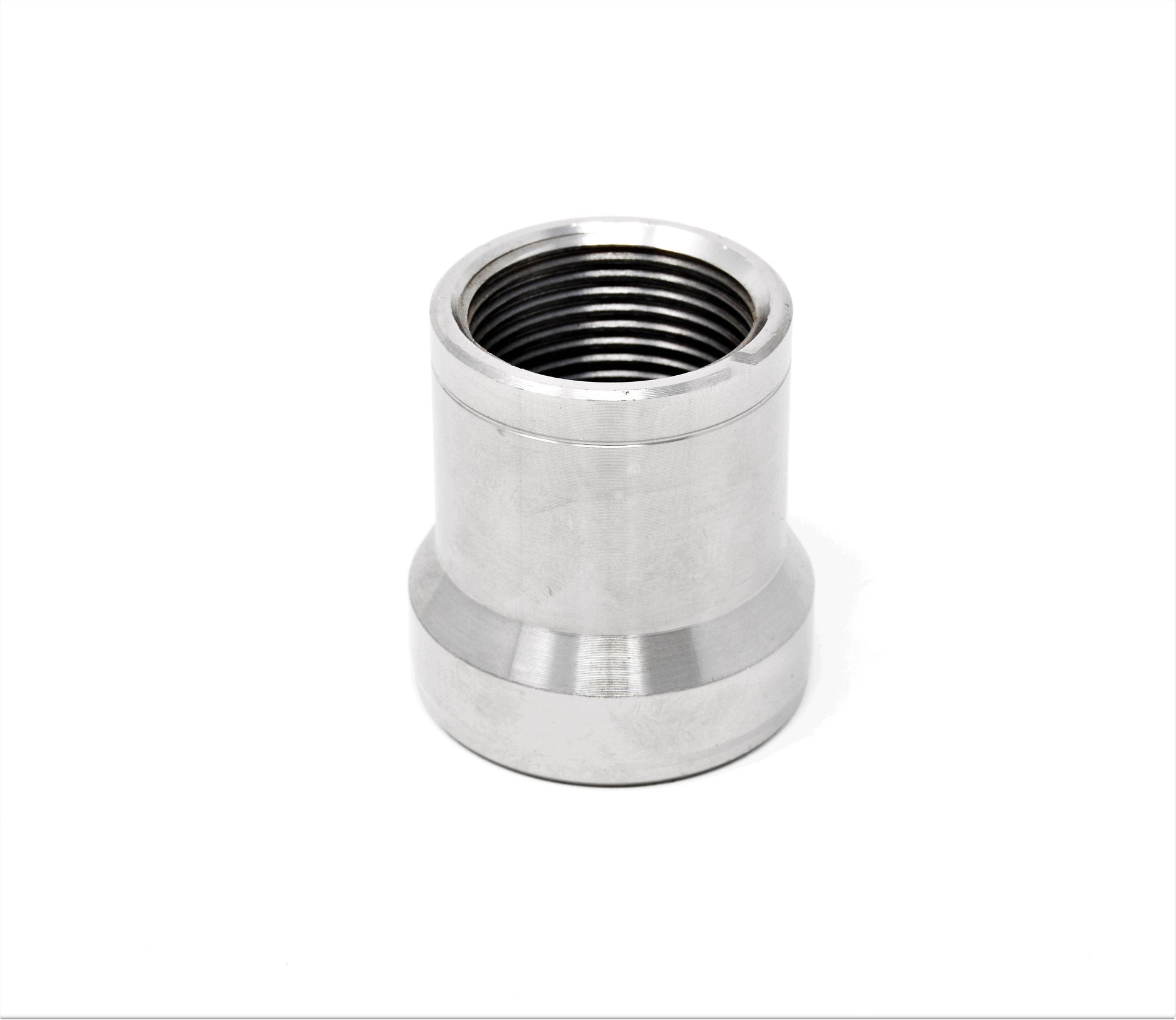

  • Designed for threaded aluminum links

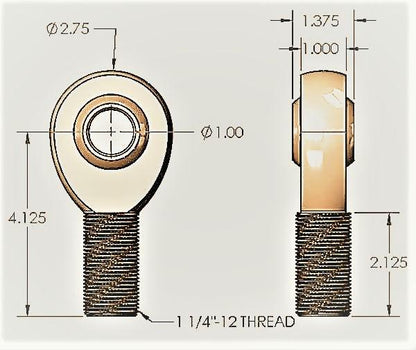

  • 1.25” 12tpi Thread
  • 1-piece design Heat Treated steel
  • Misalignment spacers fit 3/4" standard bolts (Grade 8 or better recommended)
  • 2 5/8" mounting width
  • Never needs grease
  • 76,000 Pound load rating
  • The strongest joint that we offer
  • Aluminum 4-link design, adjusts easily


They are heat-treated and hard chrome plated to give you a better finish for longer. The race is Teflon impregnated nylon for superior durability. These rod ends have a 1.25” Shaft with 12tpi. The 1” bore is the strongest way to make this heim.

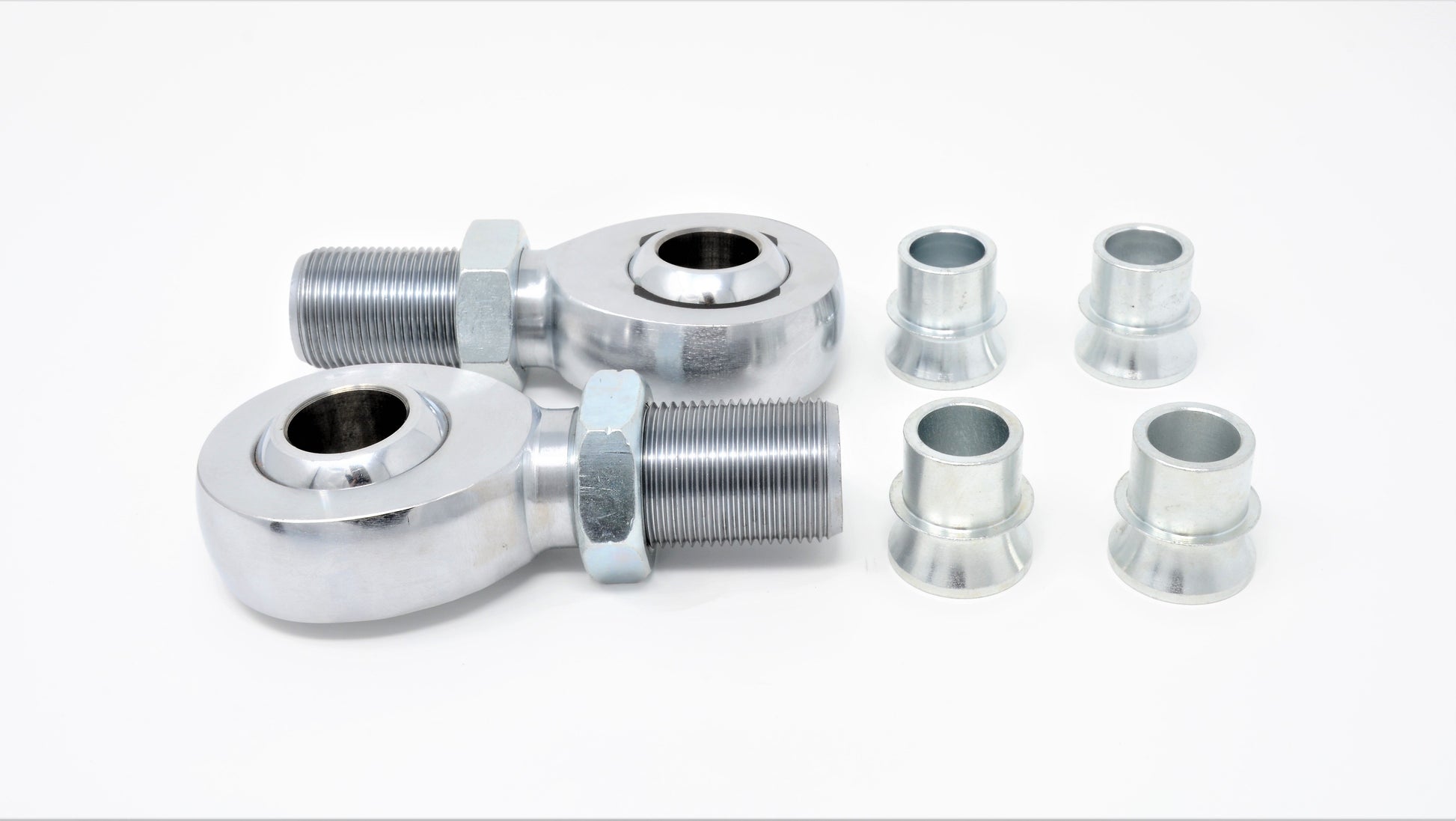

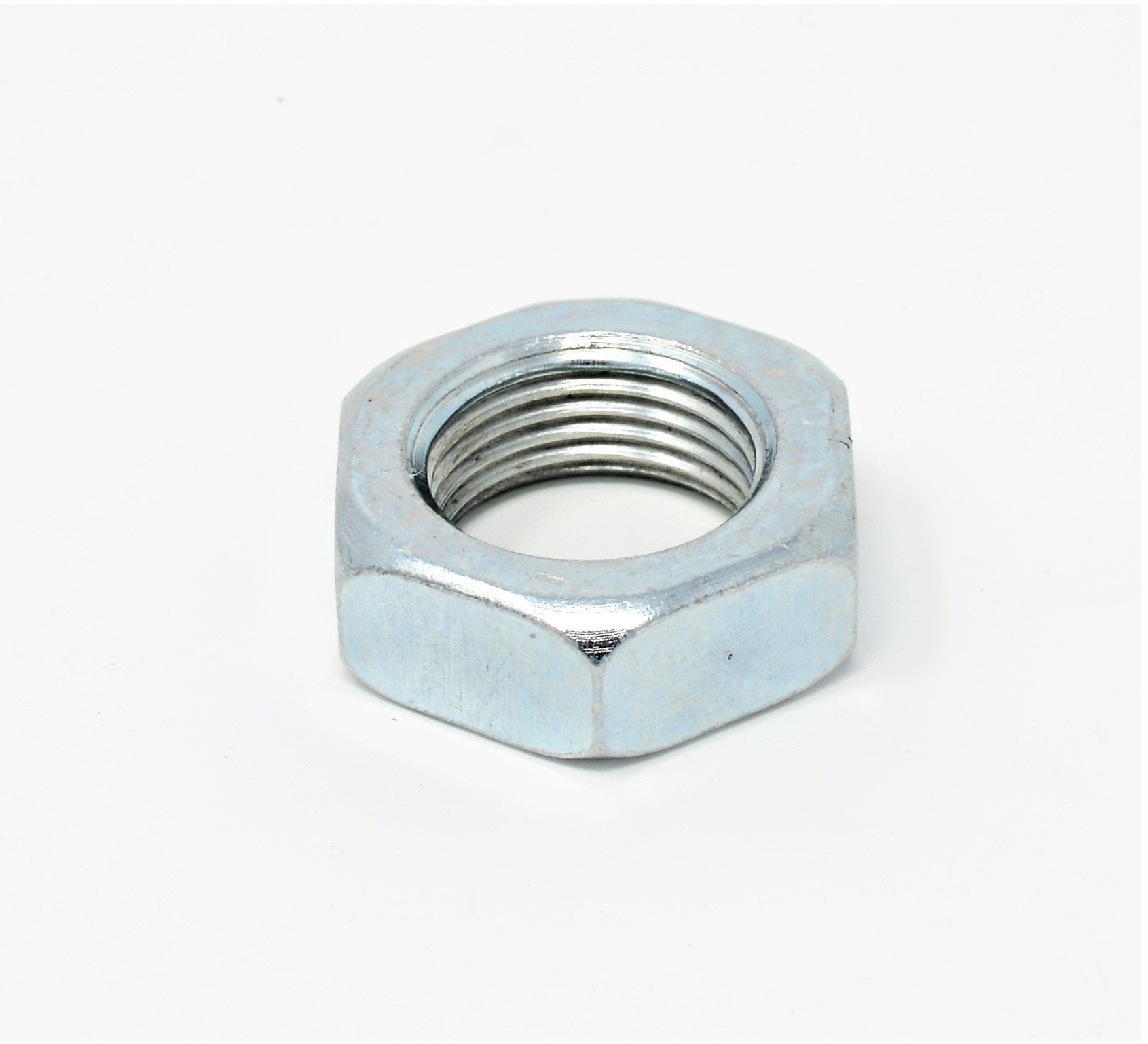

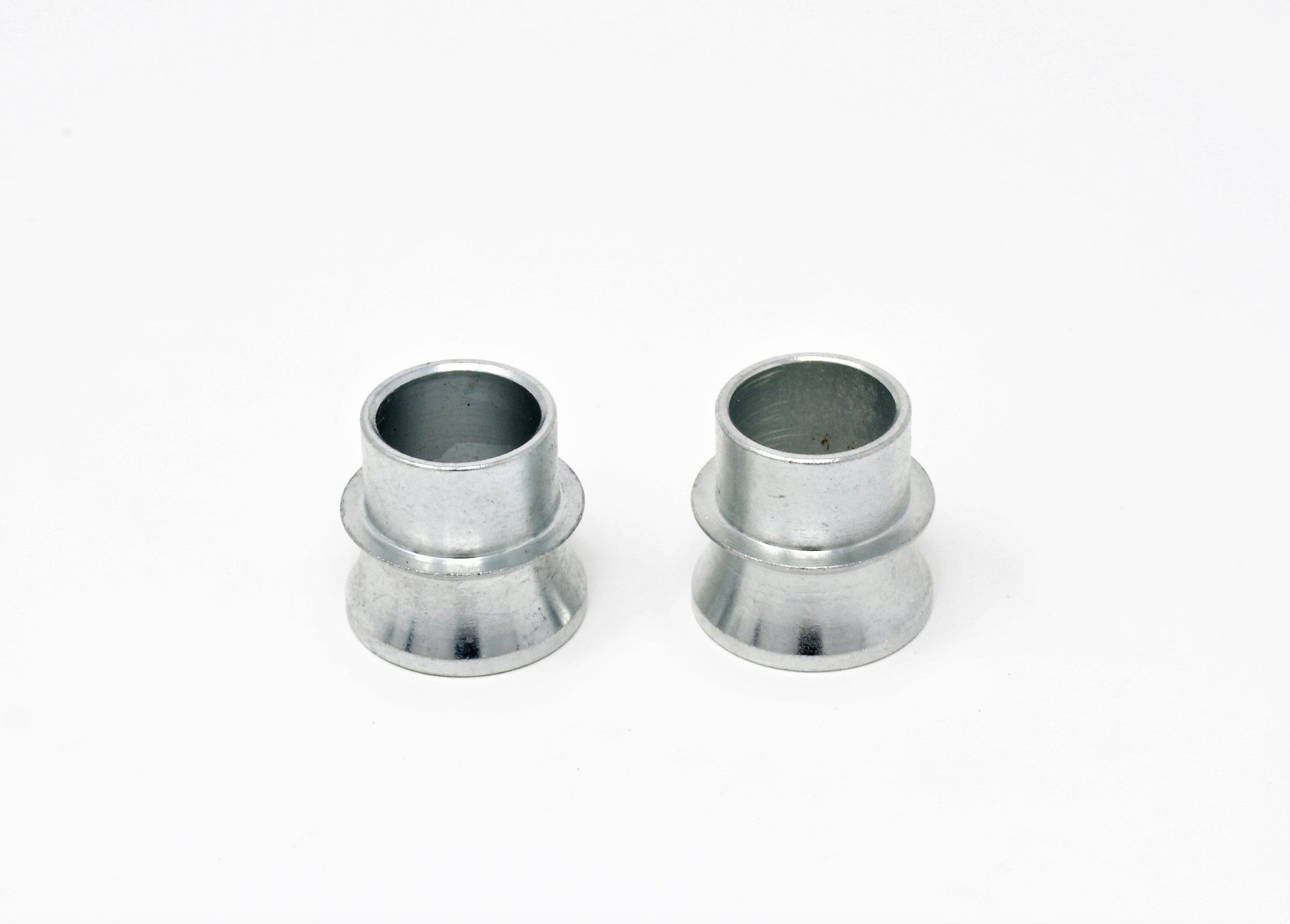

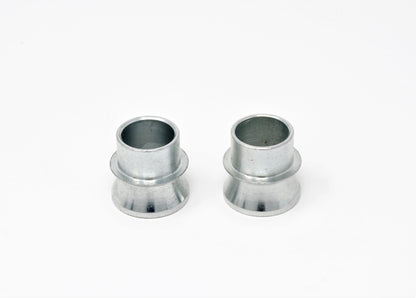

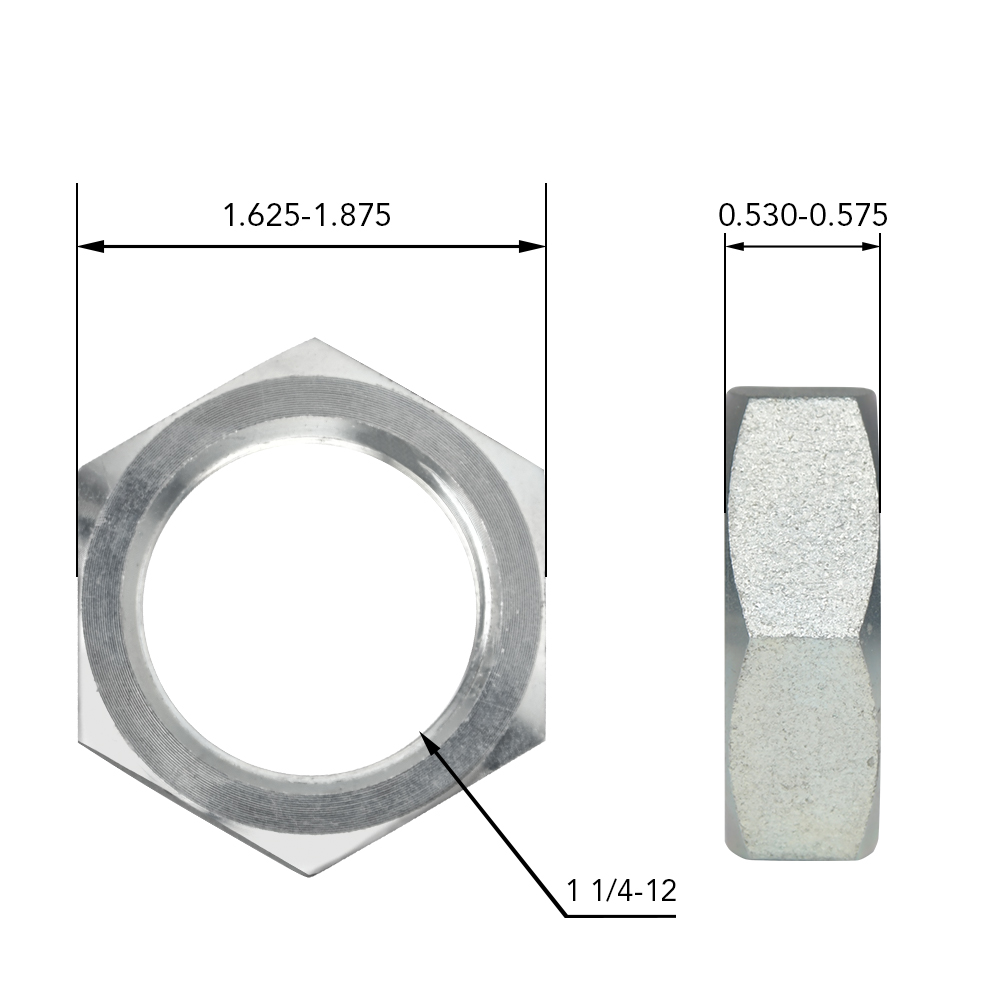

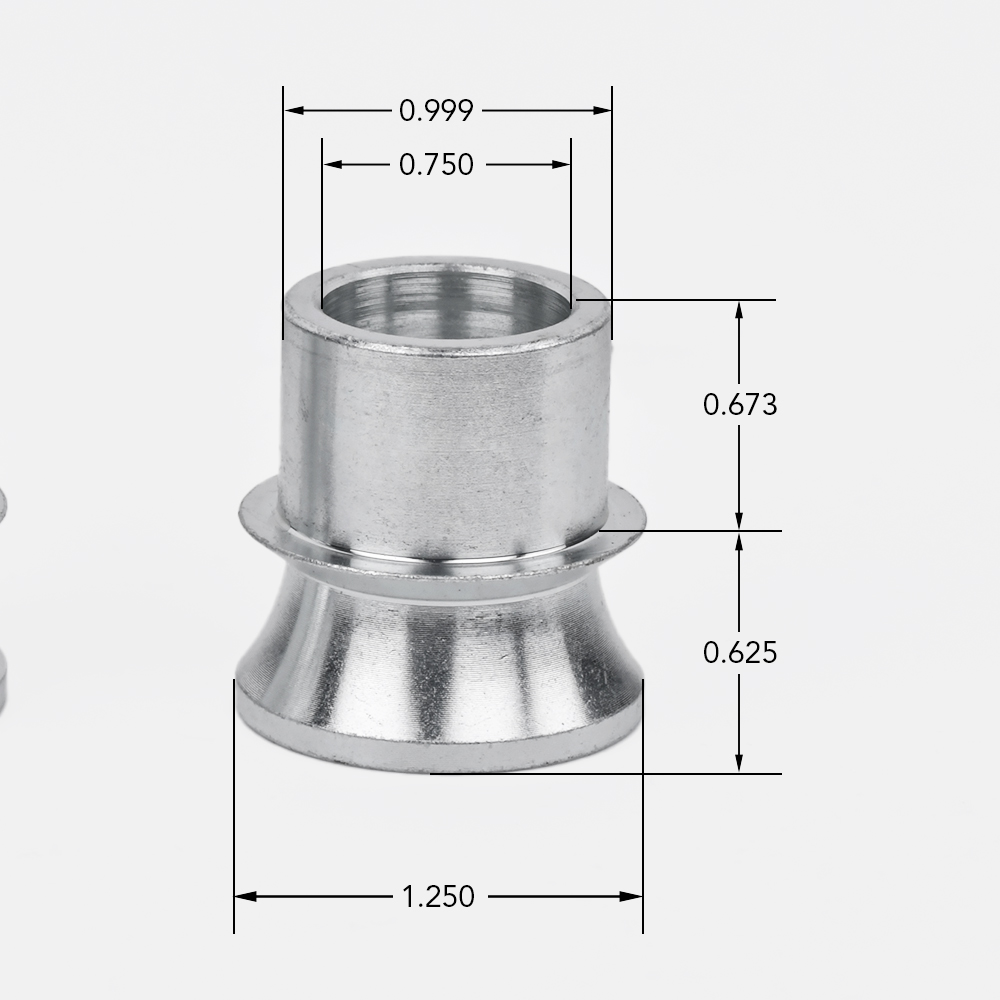

The included zinc-coated misalignment spacers reduce that down to a 3/4” standard bolt. The included jam nut is zinc coated for superior durability. Designed to fit Aluminum threaded links, or any threaded link or trailing arm you may have.

These HeimJoints.net joints area great fit for your rock crawler Jeep Toyota Buggy or any project you may be building.
Common uses are steering joints and link joints on hot rods drag racing 4-link lowrider or custom builds.
