4-sets (Right and Left) 1.25" Heim Joints for 1.5" ID tube

4-sets (Right and Left) 1.25" Heim Joints for 1.5" ID tube

Regular price $445.00 USD
Regular price Sale price $445.00 USD
Sale Sold out
Shipping calculated at checkout.

This Heim Joint kit has the following benefits

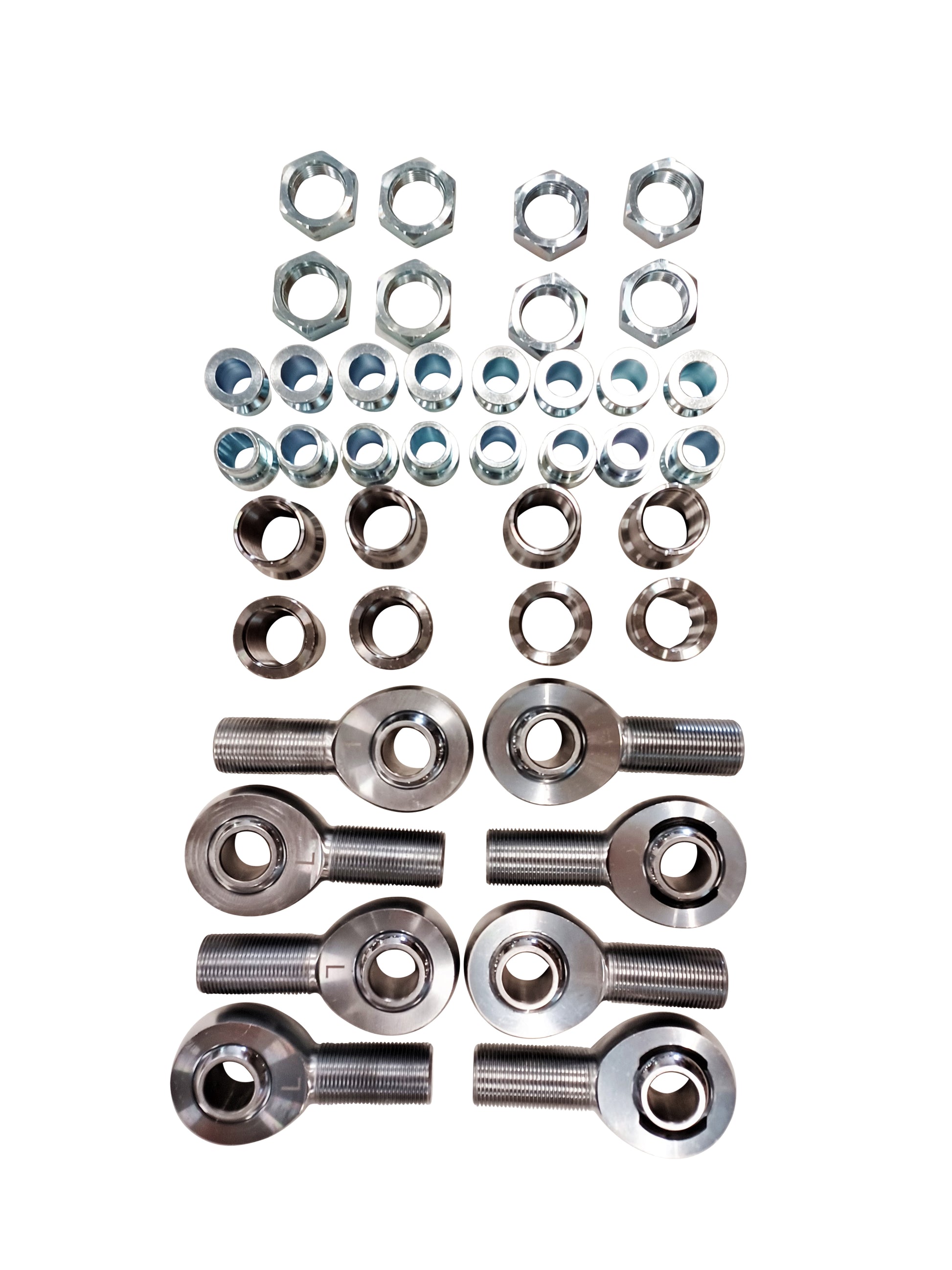

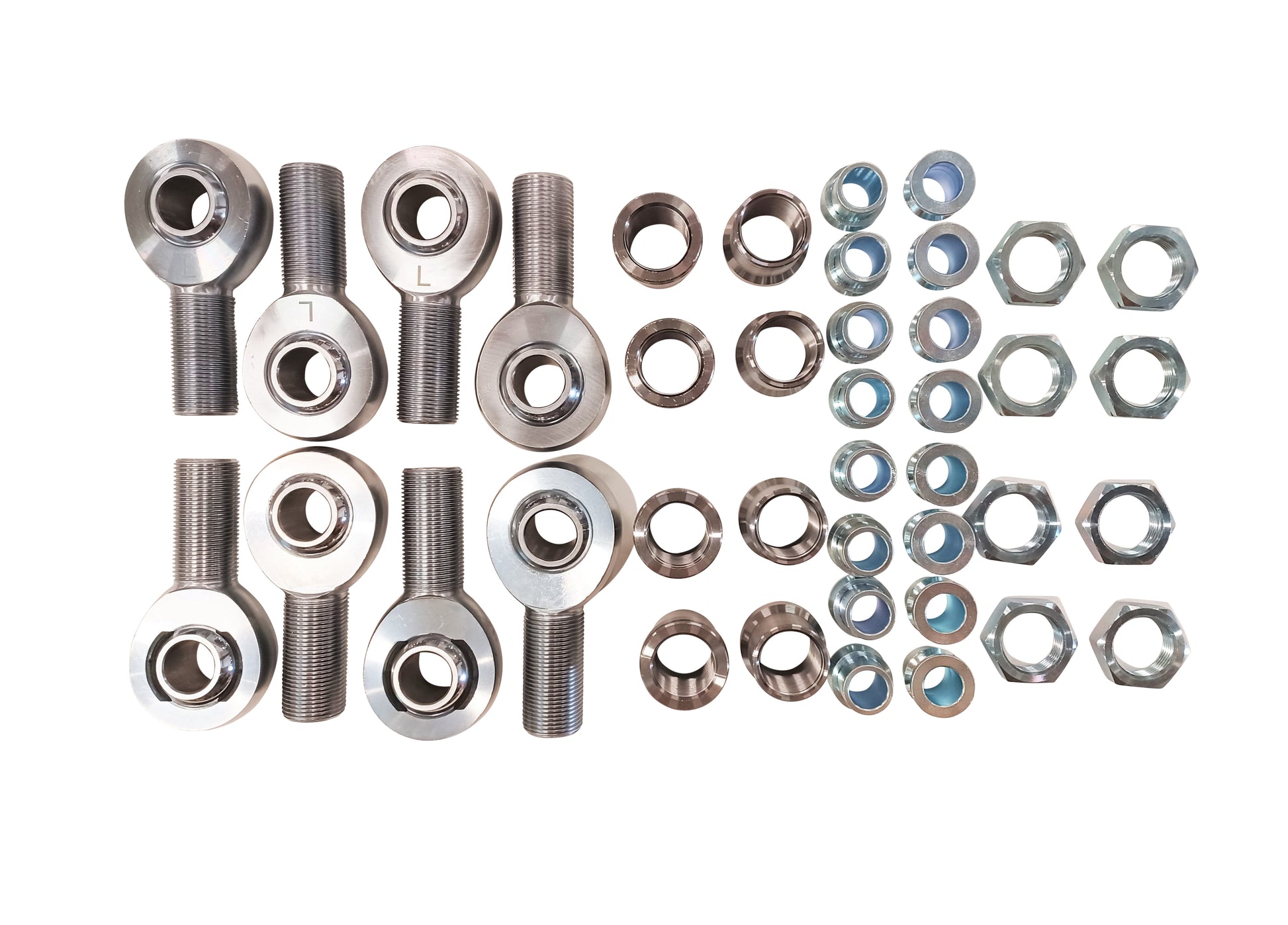

  • Includes 4-right hand thread 4-Left hand thread Heim set. 16 Spacers, 8 Jam nuts and 8 tube adapters included.
  • 1.25” 12tpi Thread
  • 1-piece design Heat Treated steel
  • 2 5/8" mounting width
  • Misalignment spacers fit 3/4" standard bolts (Grade 8 or better recommended)
  • Never needs grease
  • 76,000 Pound load rating
  • Tube adapters fit 1.5" ID tube (inside diameter)
  • The strongest joint that we offer
  • Enough parts for 4 link bars, usually used on lower inks

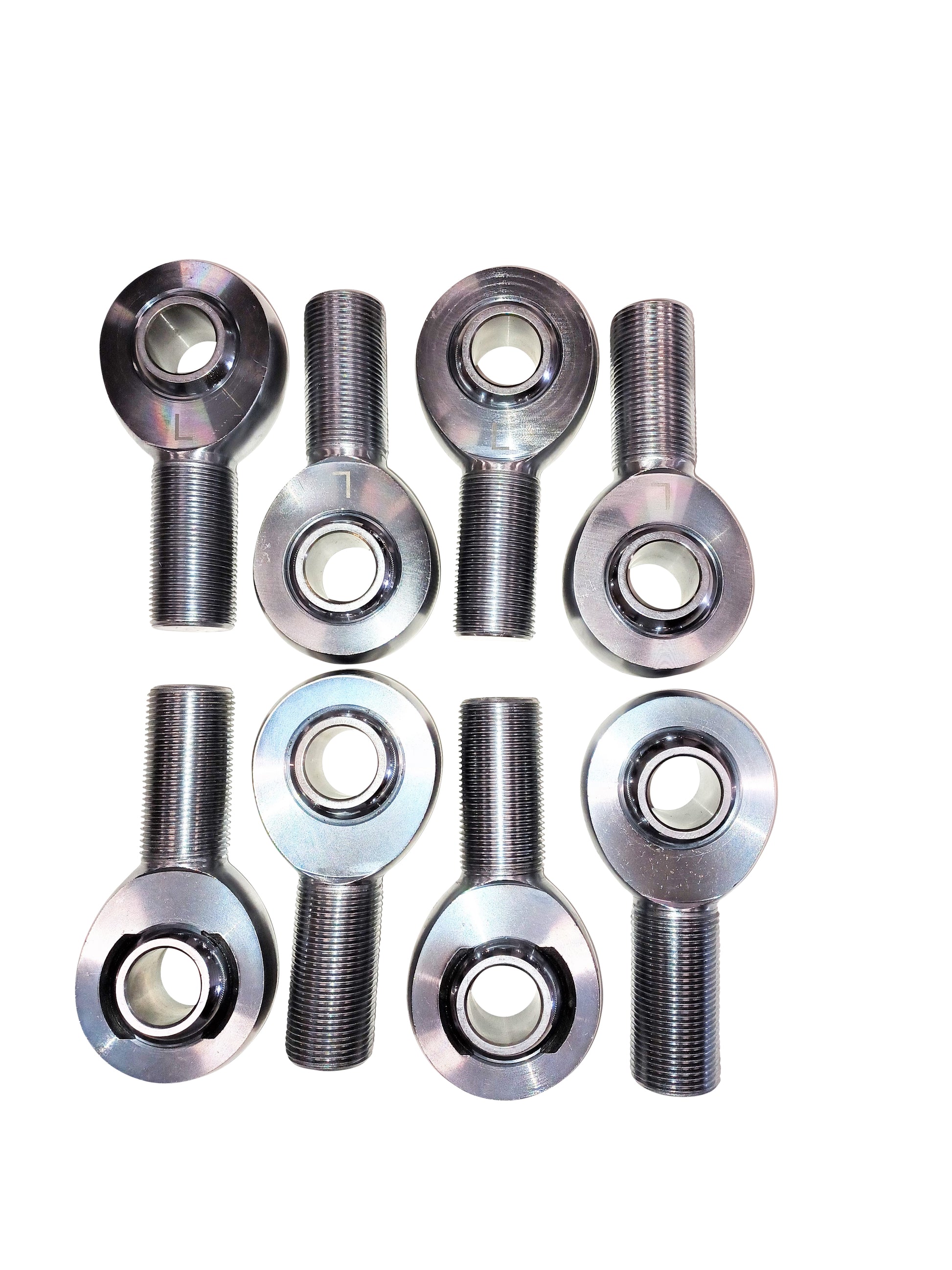

This kit contains enough parts to make 4 link bars. Each link uses a right and a left hand joint. The different thread joints are used for easy adjustment. No need to remove he link to lengthen or shorten it for your alignment needs.

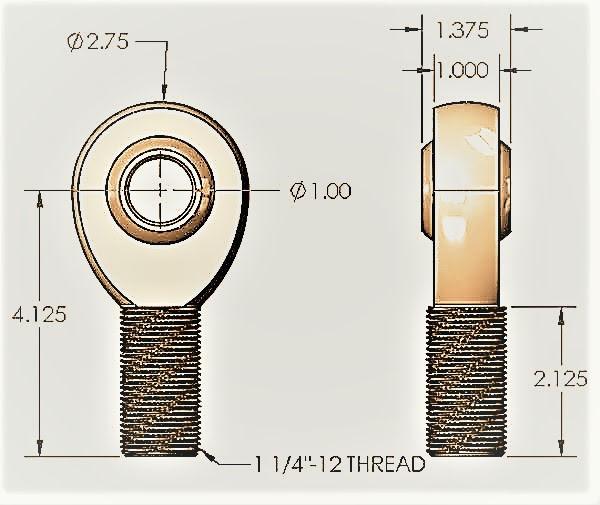

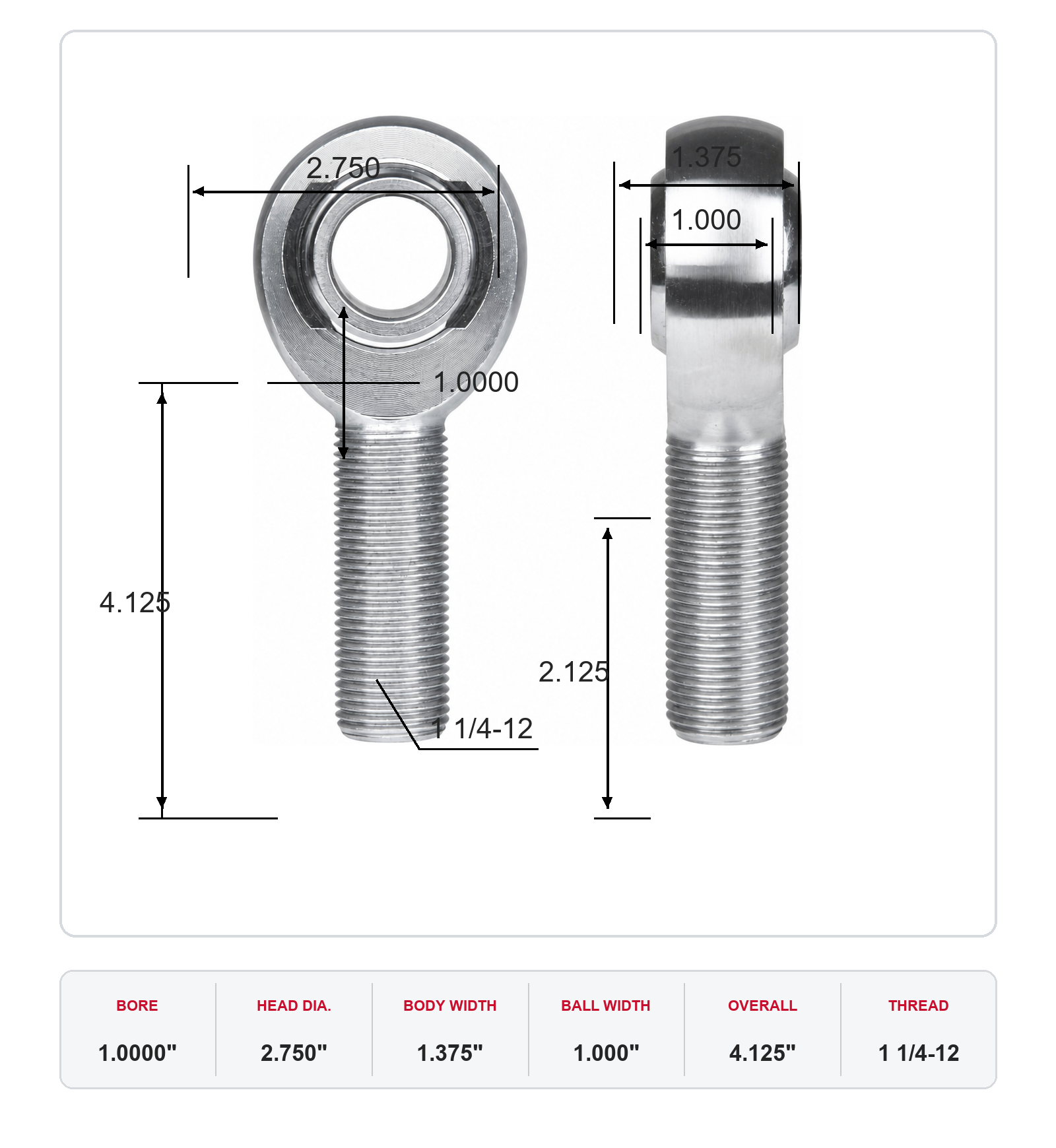

They are heat-treated and hard chrome plated to give you a better finish for longer. The race is teflon impregnated nylon for superior durability. These rod ends have a 1.25” Shaft with 12tpi. The 1” bore is the strongest way to make this heim.

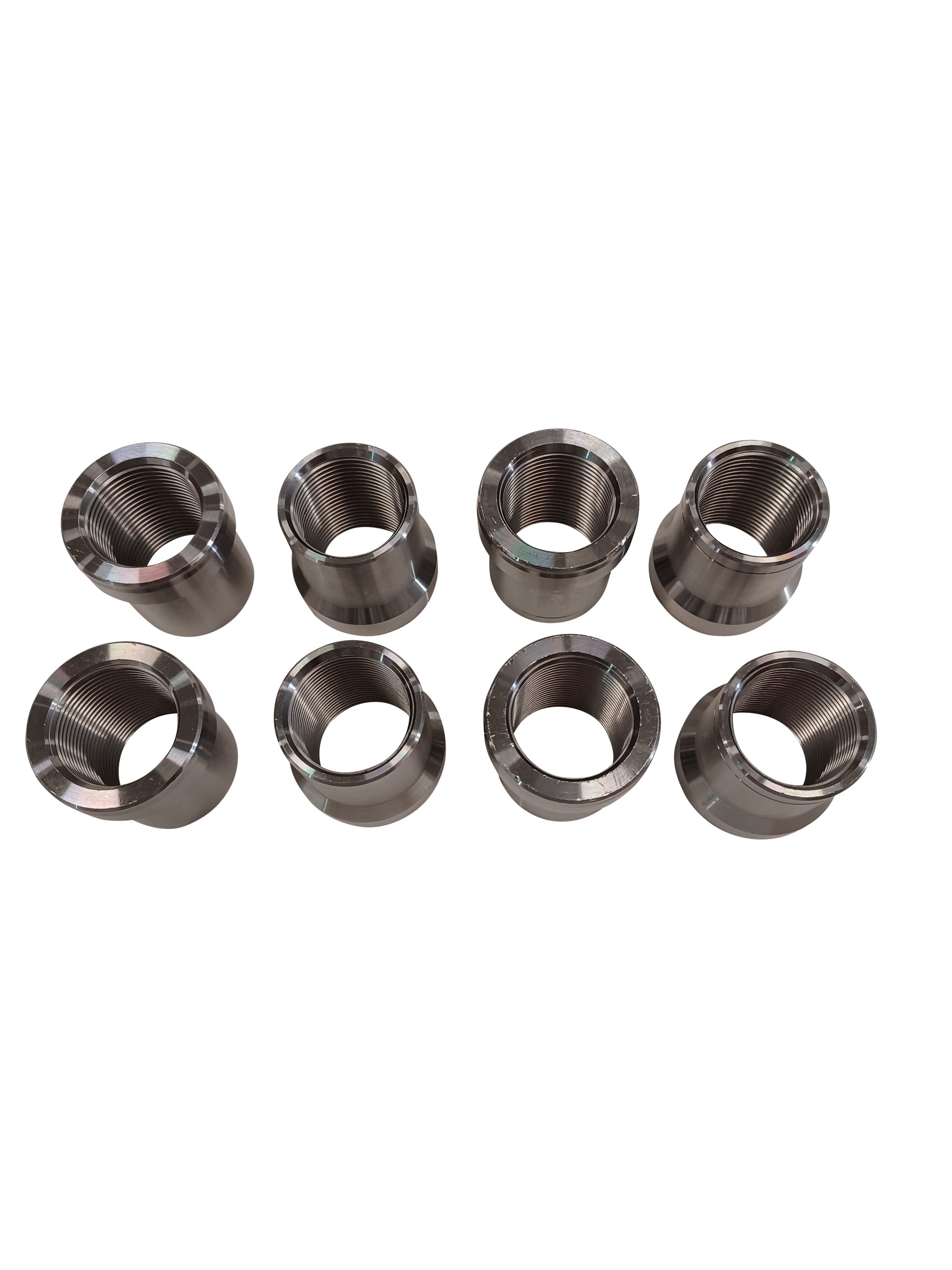

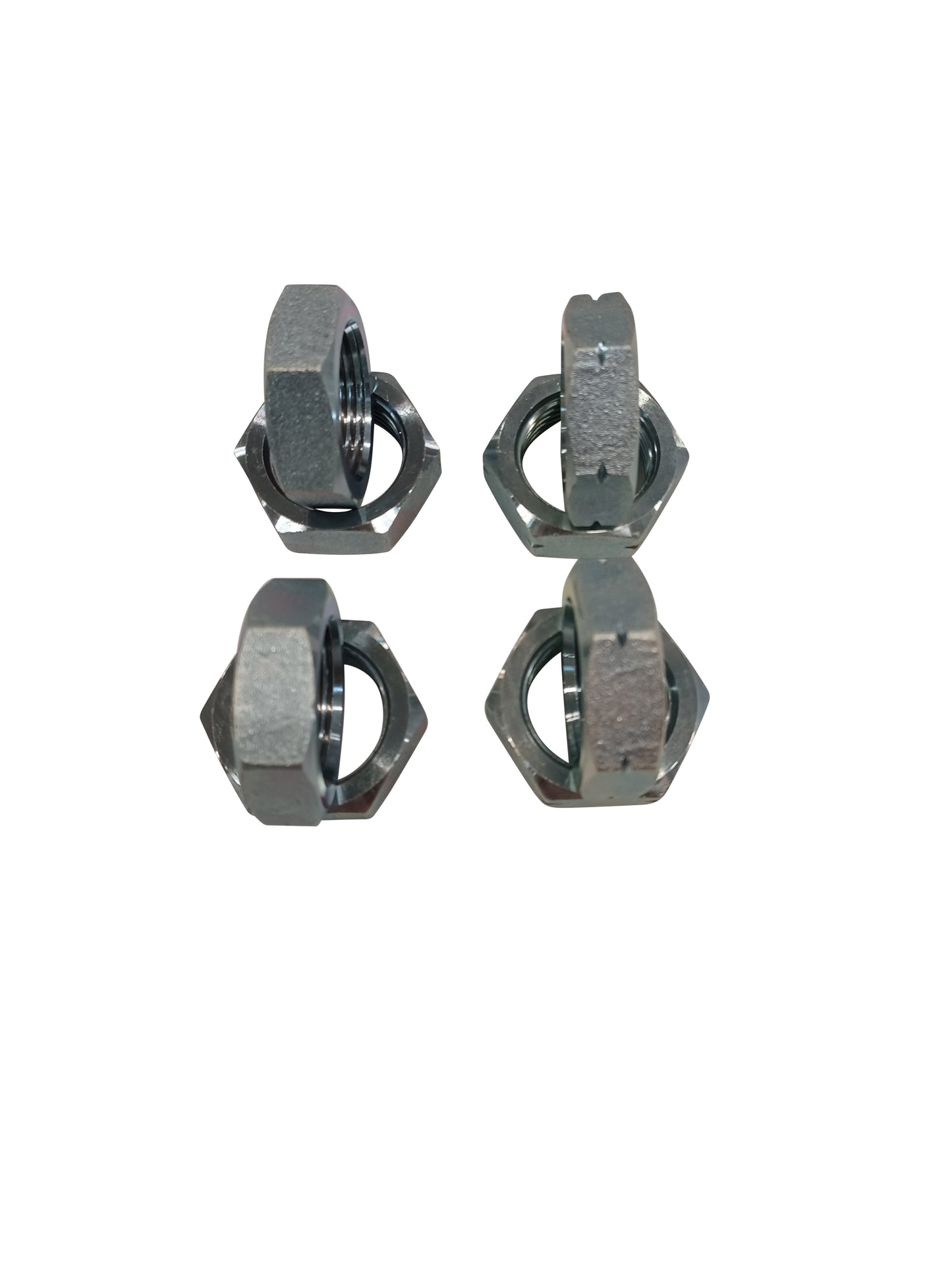

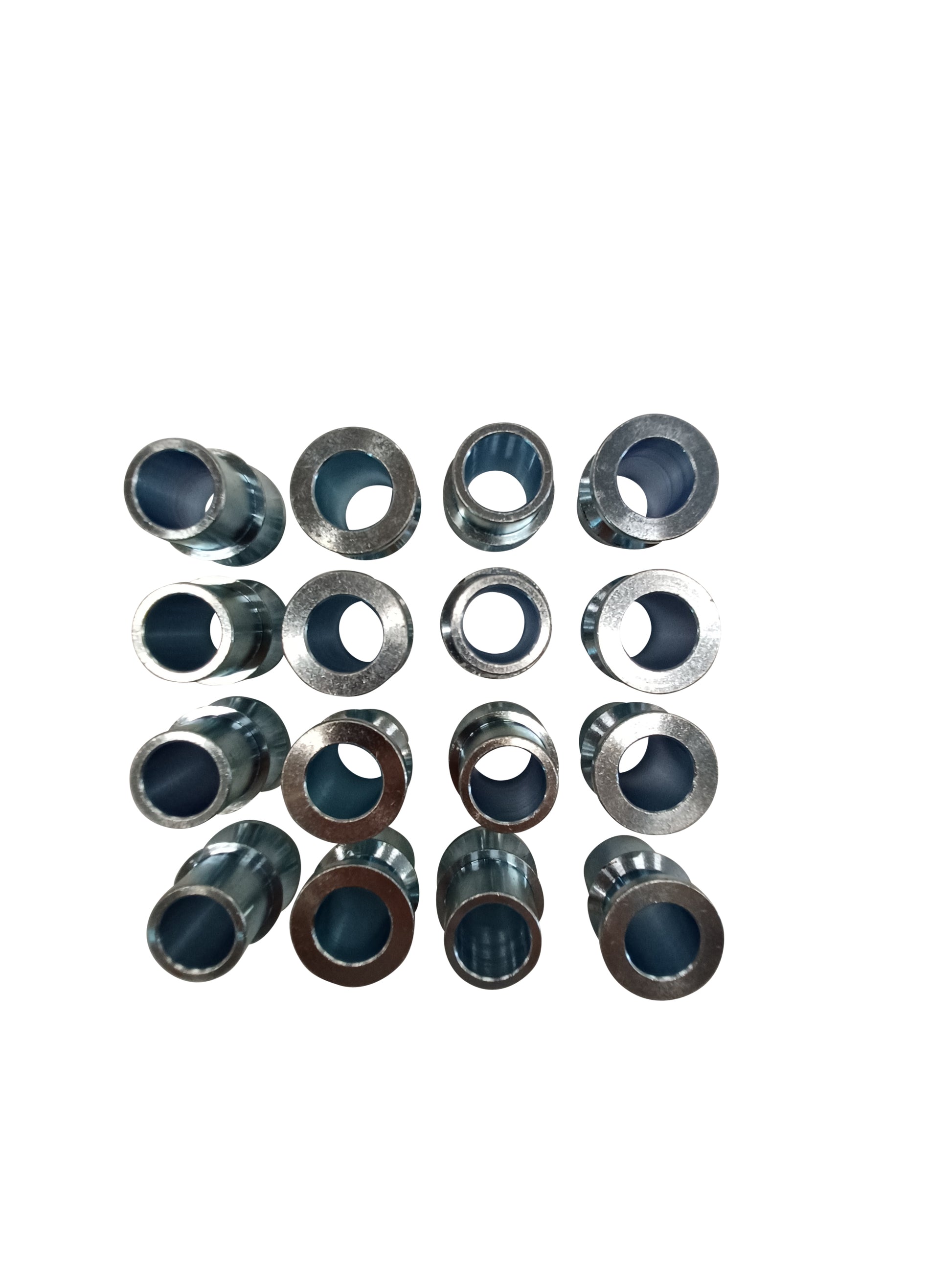

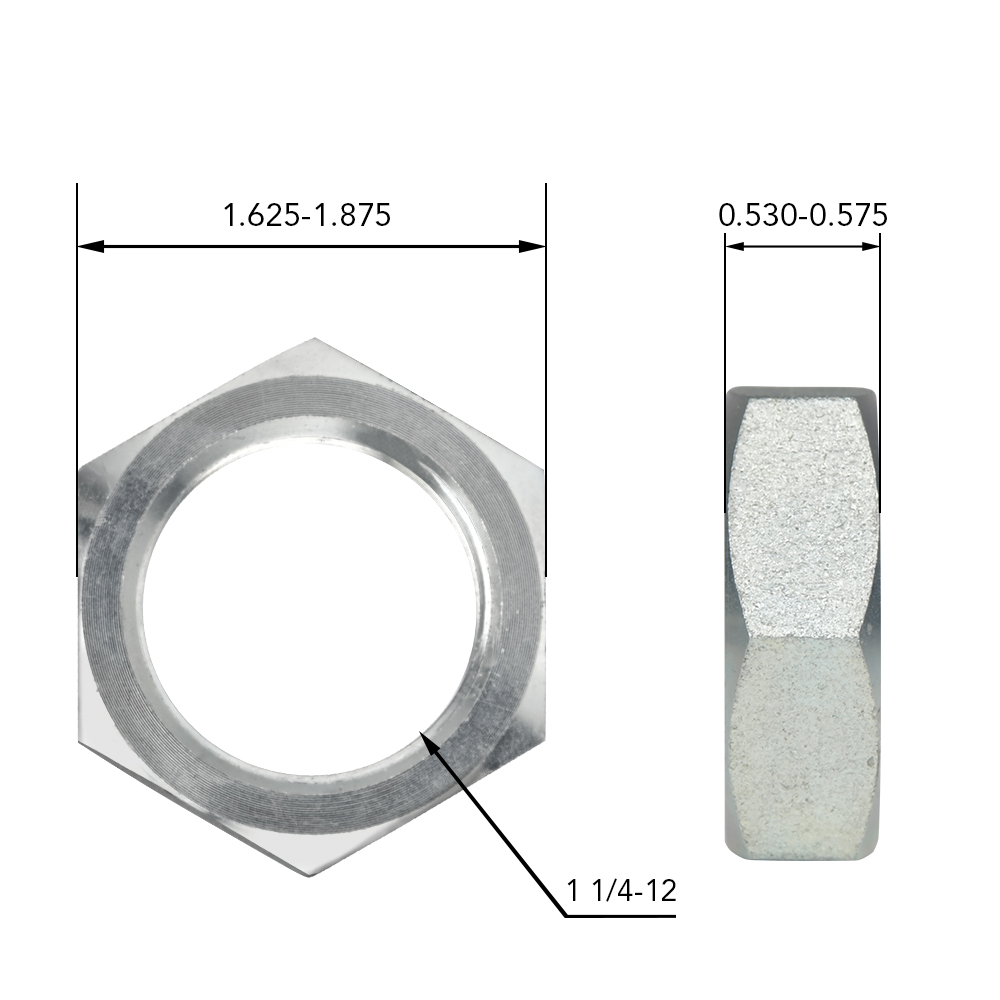

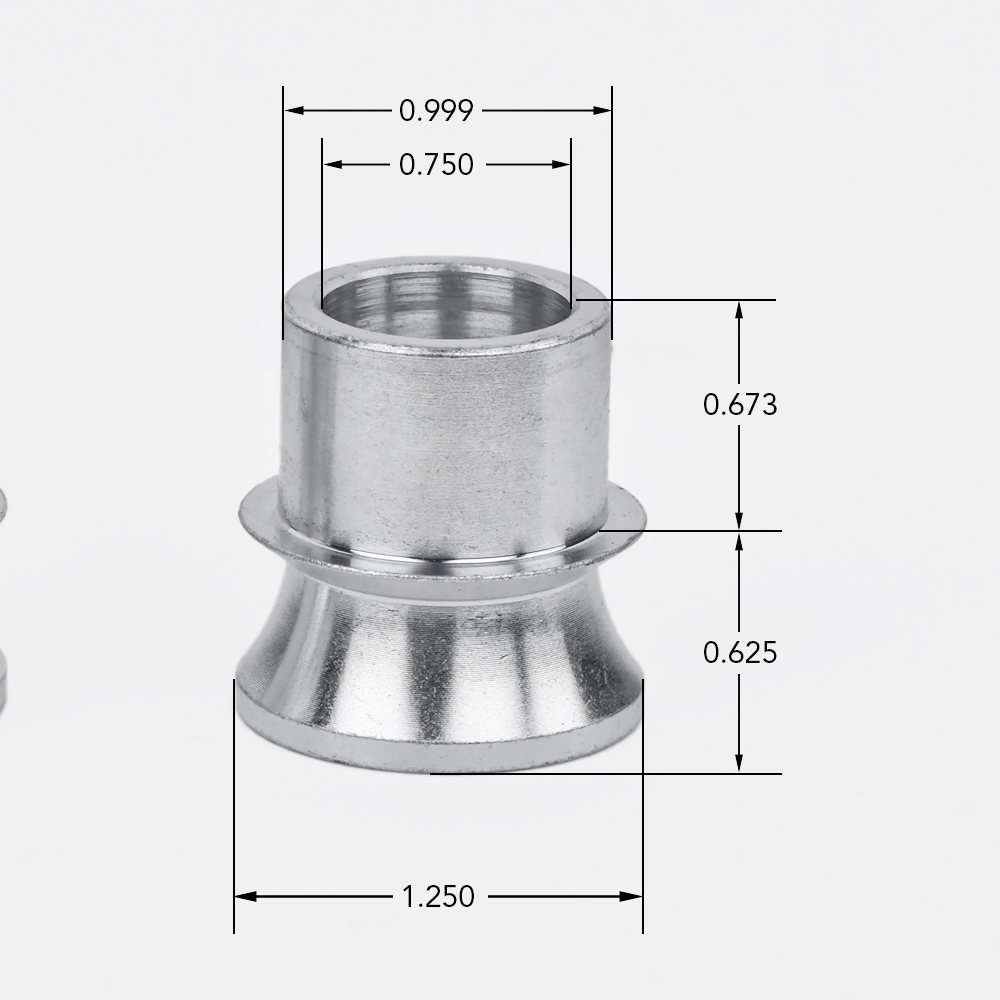

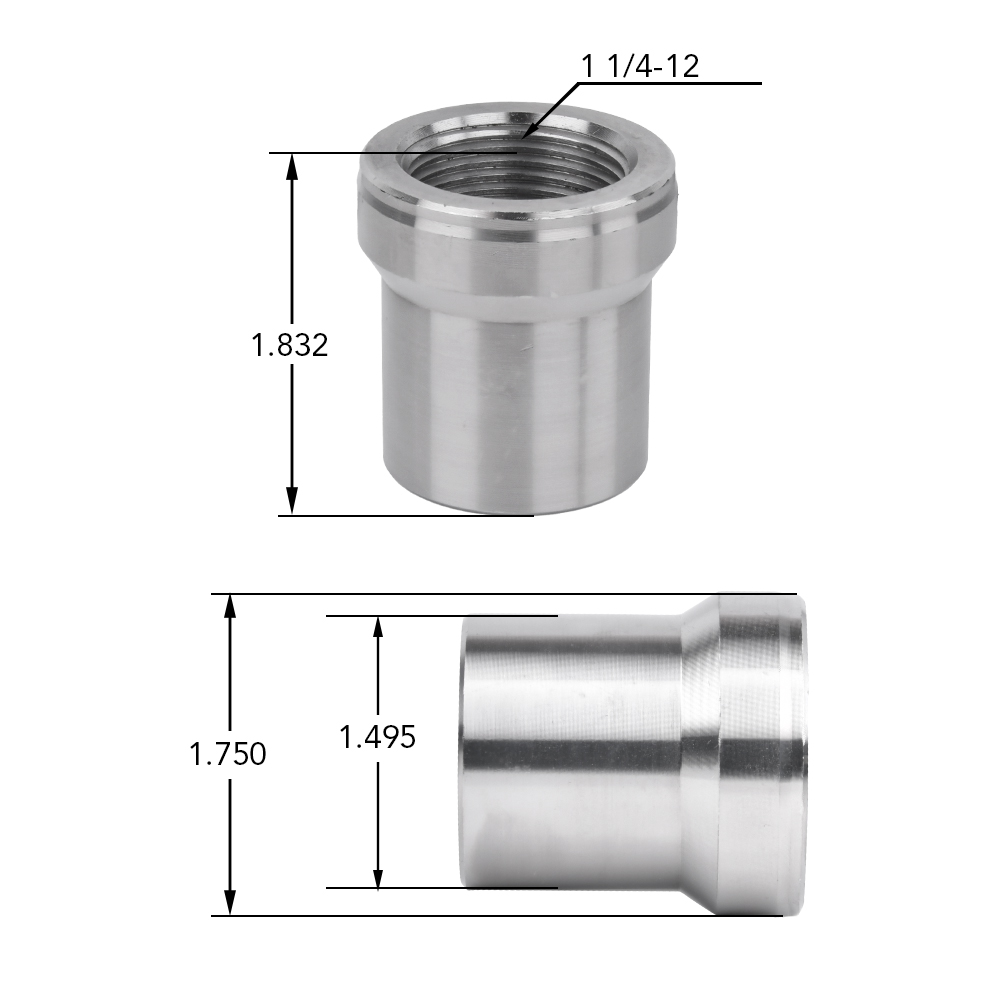

The included zinc-coated misalignment spacers reduce that down to a 3/4” standard bolt. The included jam nut is zinc coated for superior durability. Also included is the 1.5” ID tube adapter. They will fit snugly in any 1.5” ID tube.

These HeimJoints.net joints area great fit for your rock crawler Jeep Toyota Buggy or any project you may be building.
Common uses are steering joints and link joints on hot rods drag racing 4-link lowrider or custom builds.
