Heim Joints

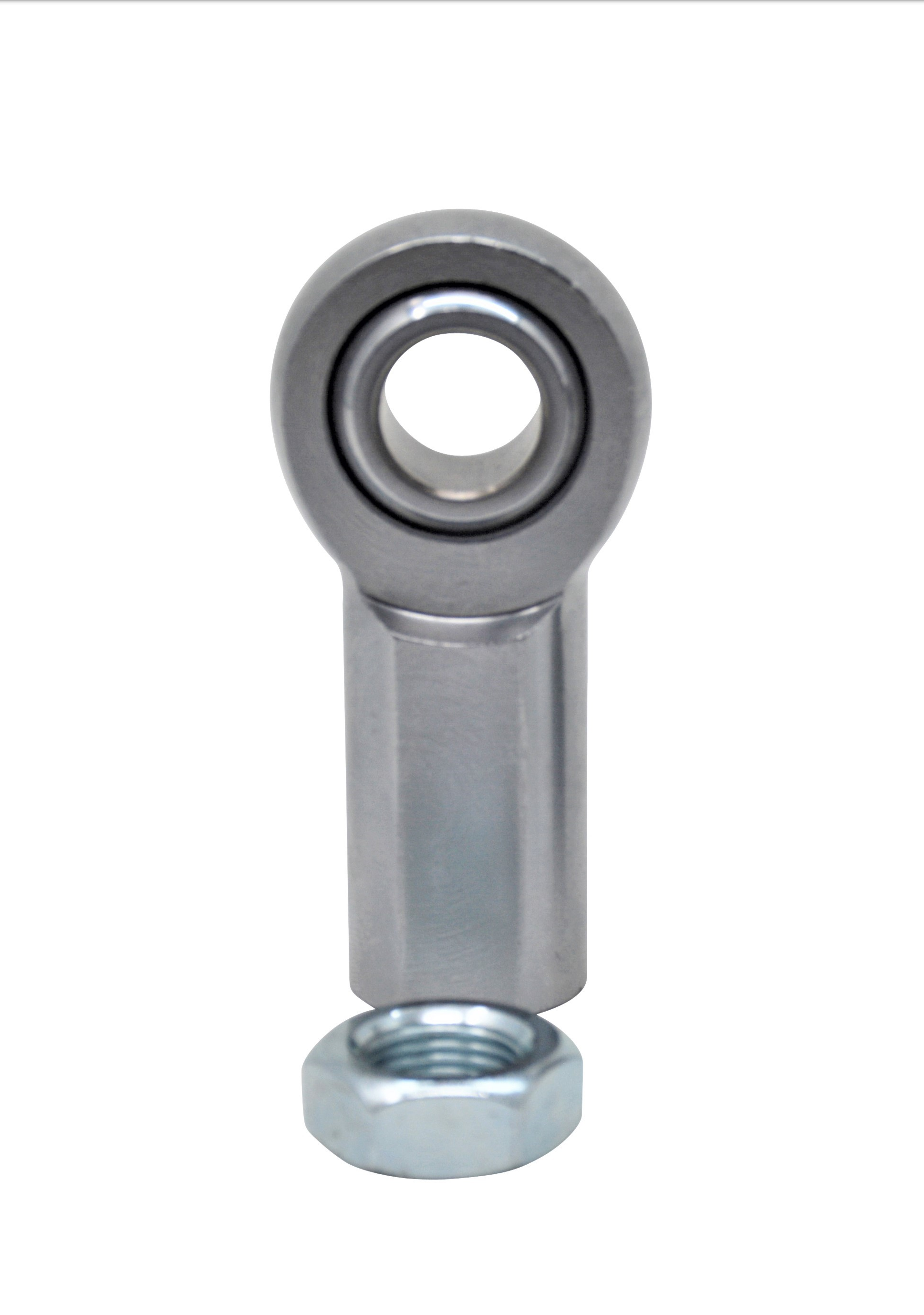

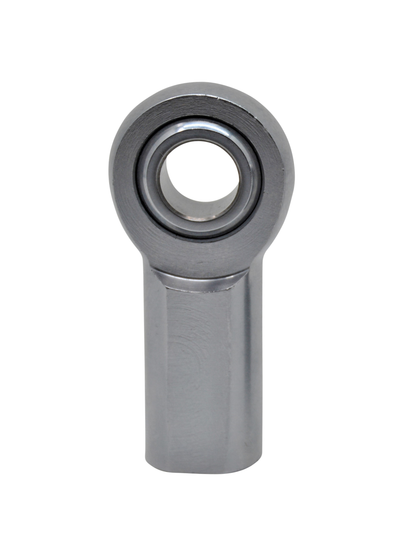

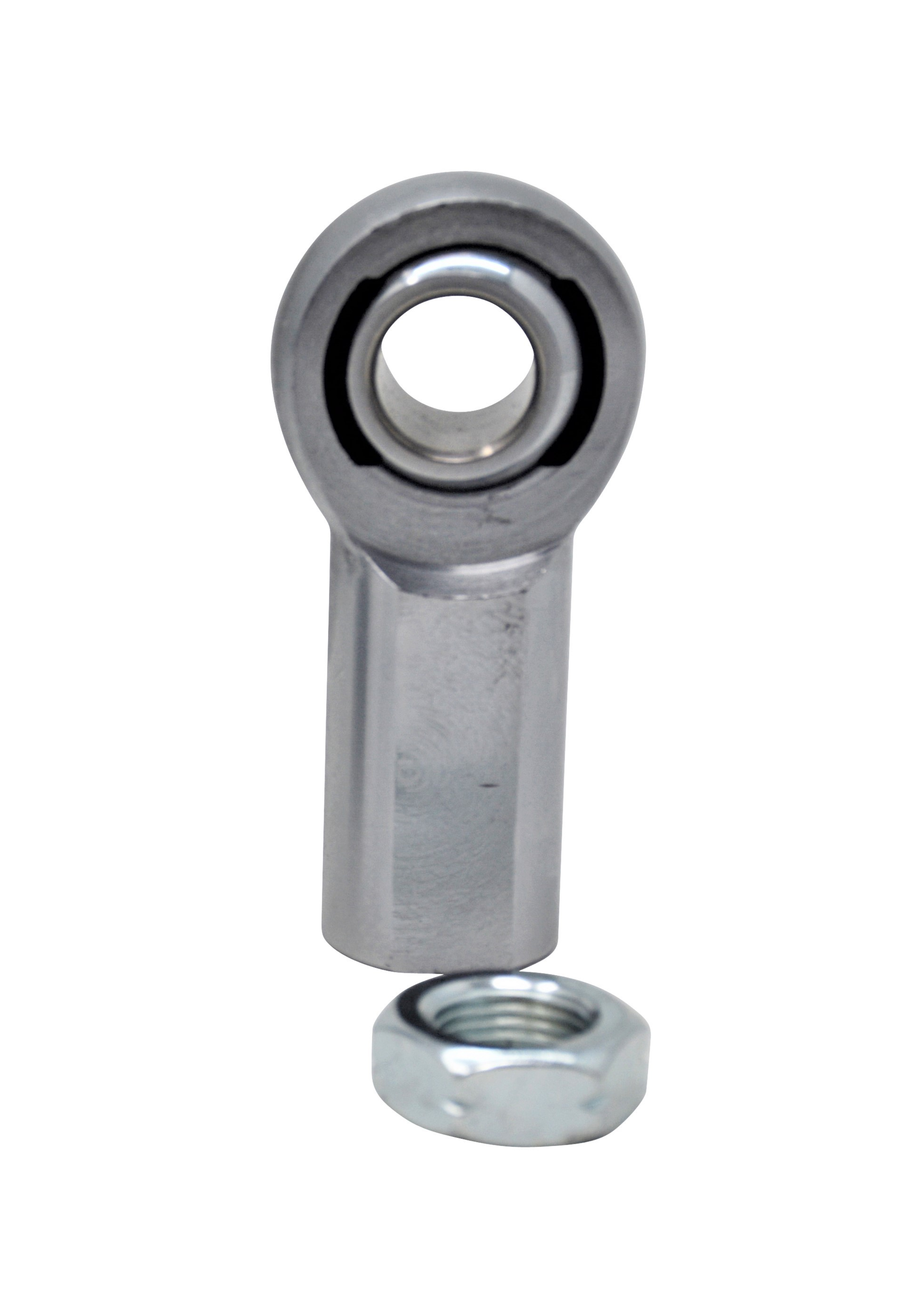

5/8" Female heim joint Right-hand (normal) thread, Heavy duty

5/8" Female heim joint Right-hand (normal) thread, Heavy duty

Regular price $11.00
Regular price Sale price $11.00
Sale Sold out
Shipping calculated at checkout.

Benefits from your new female heim joint

  • 4130 Aircraft-grade Chromoly steel
  • Right-Hand thread (normal)
  • Chrome plated finish

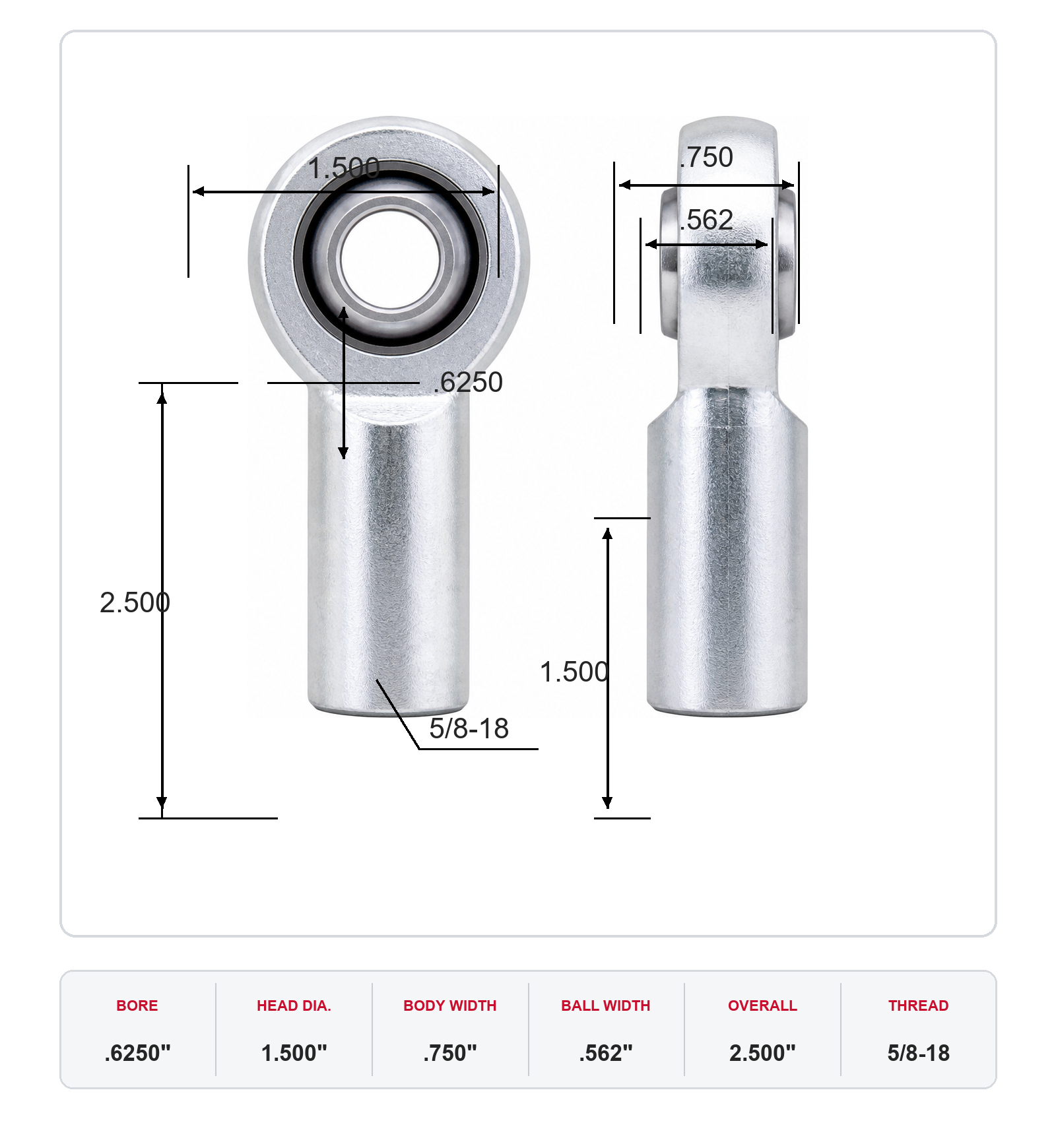

  • 5/8-18tpi with 5/8” hole .625
  • 17,955-pound load rating
  • Nylon/PTFE lined
  • Includes Jam nut
  • 1.5" Thread length
  • 16-degree misalignment

These massive heim joints are the best you can buy. They are heat-treated and hard chrome plated to give you a better finish for longer.
The race is Teflon impregnated nylon for superior durability.

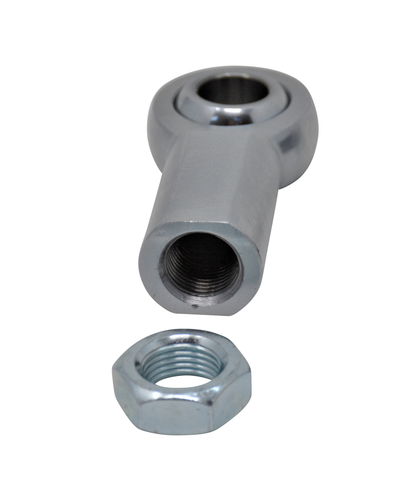

These rod ends have a 5/8” female thread with 18tpi.
The 5/8” bore is the strongest way to make this heim.
Used on sand rails, a-arms, drag cars, rock crawlers or anywhere a high-quality heim is needed.
