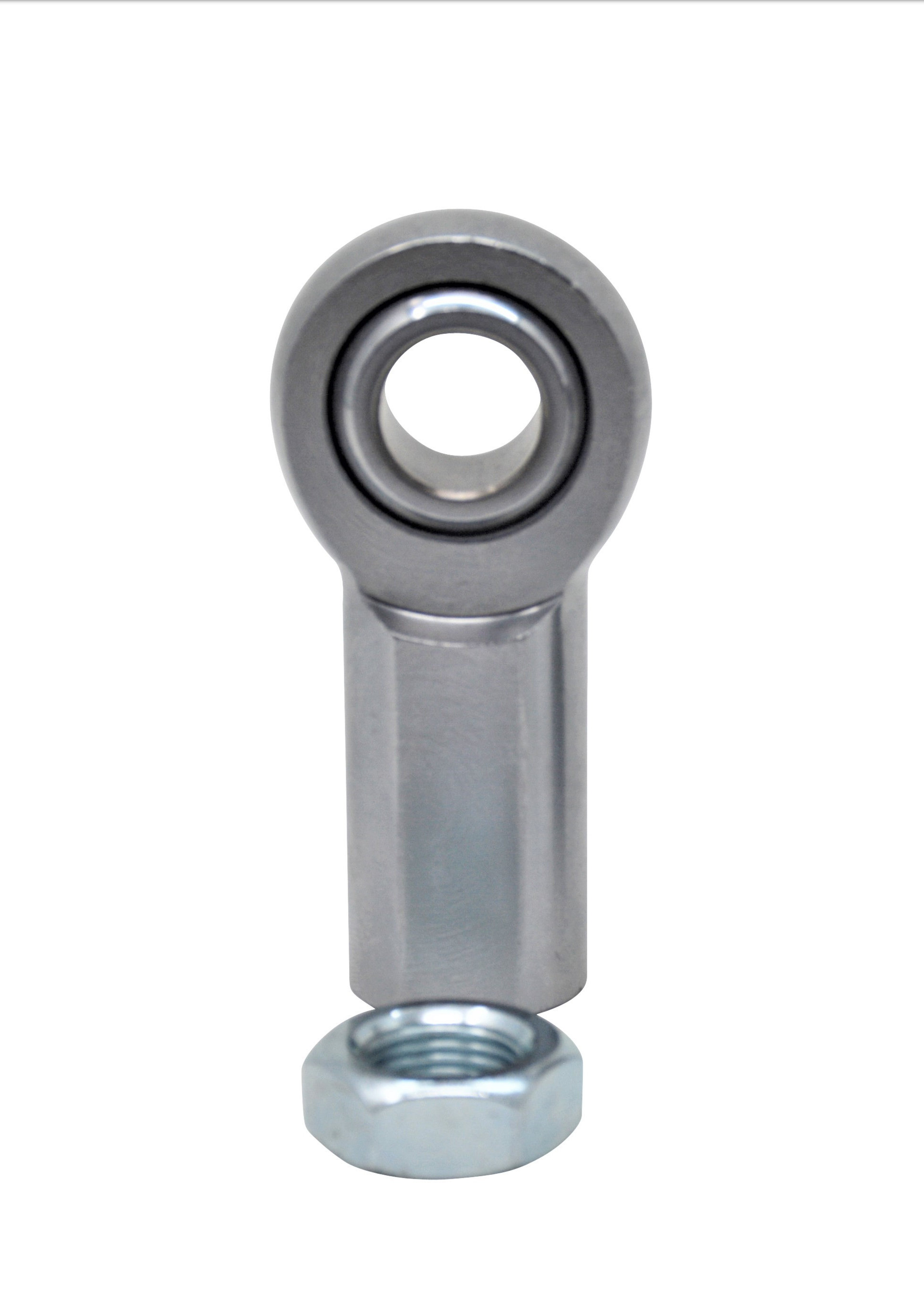

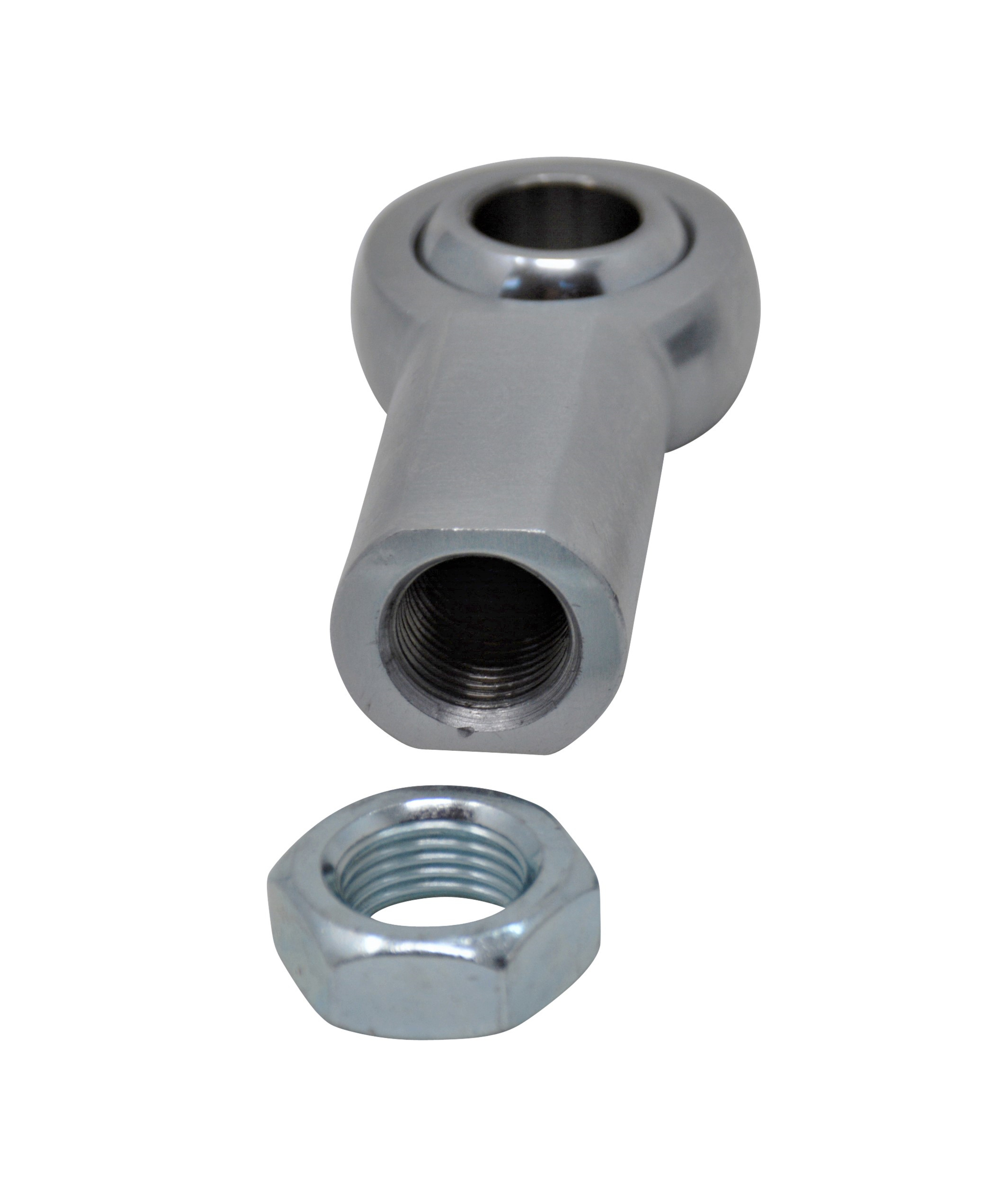

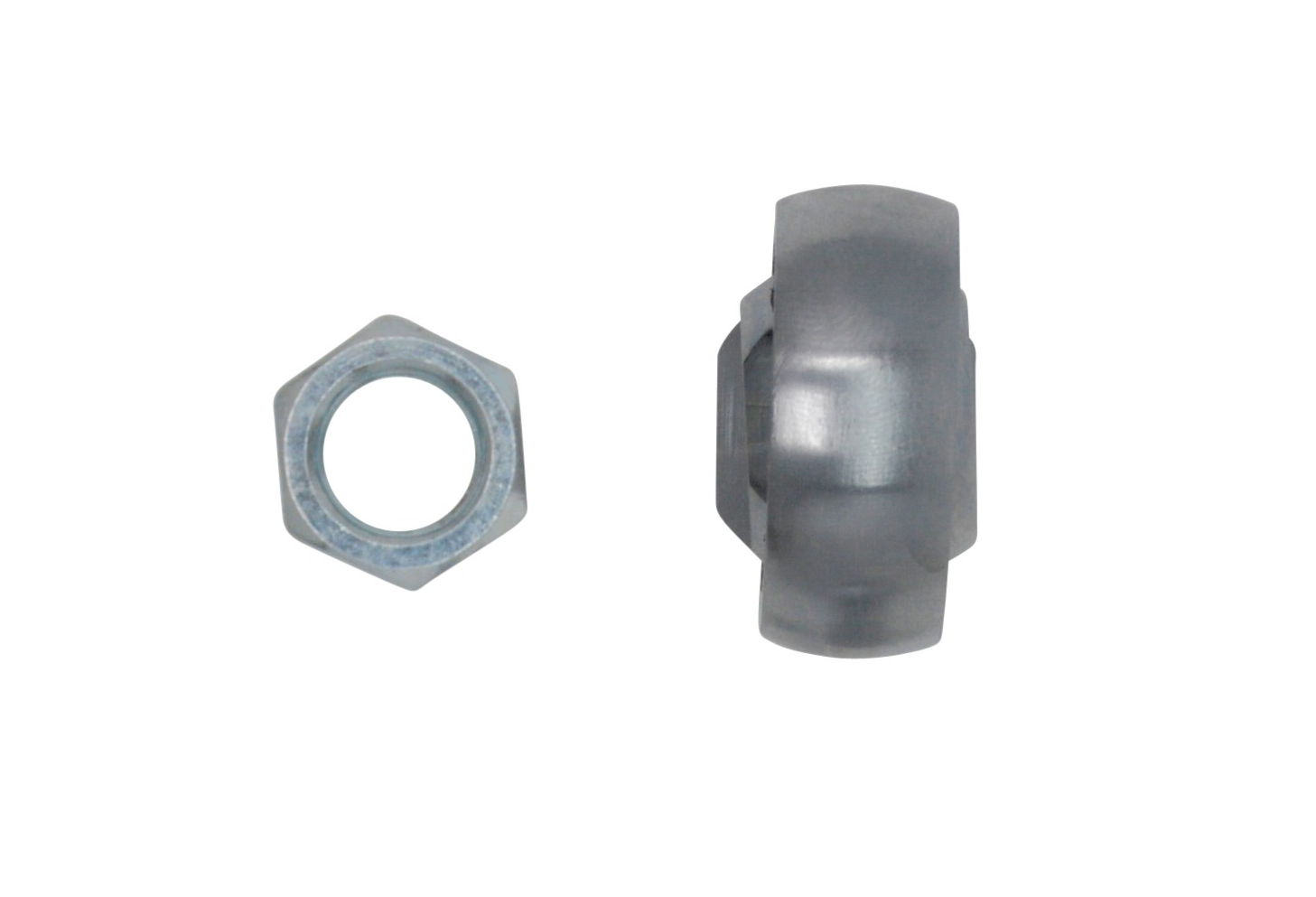

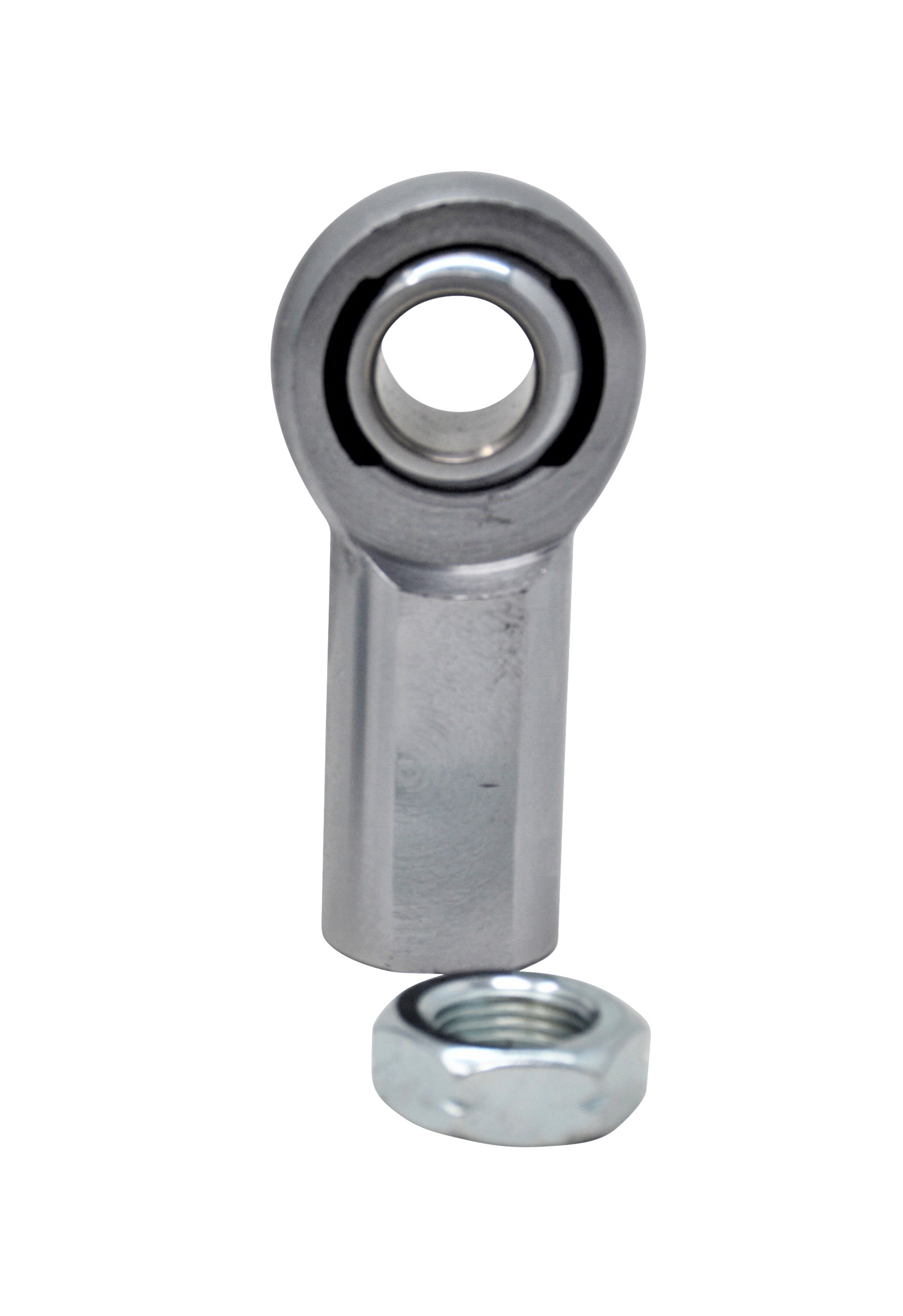

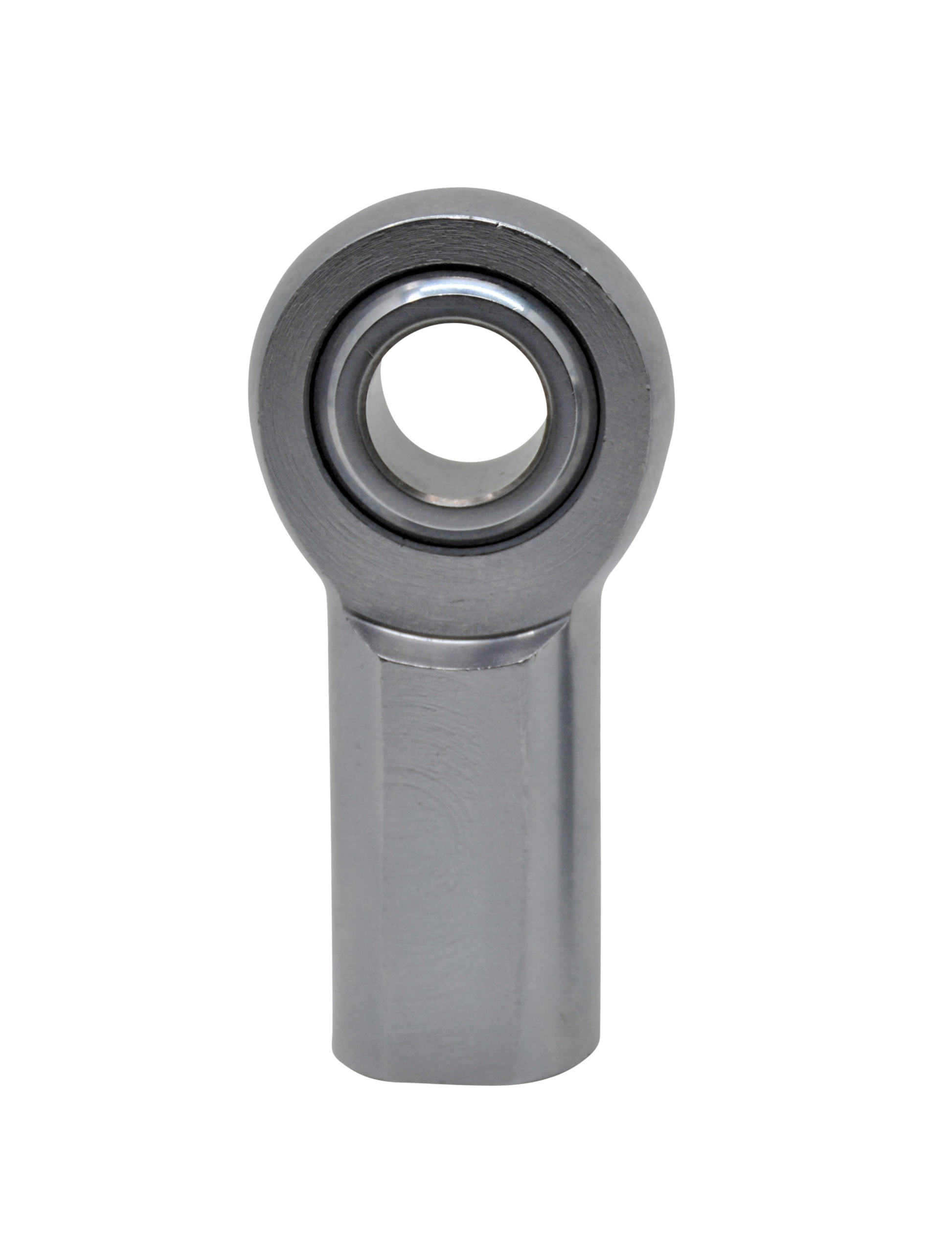

5/8" Female heim joint Left-hand (reverse) thread, Heavy duty

5/8" Female heim joint Left-hand (reverse) thread, Heavy duty

SKU:58FL

Regular price $12.00 USD
Regular price Sale price $12.00 USD
Sale Sold out
Shipping calculated at checkout.
Add misalignment spacers

Benefits from your new female heim joint

  • 4130 Aircraft-grade Chromoly steel
  • Left-Hand thread (reverse)
  • Chrome plated finish

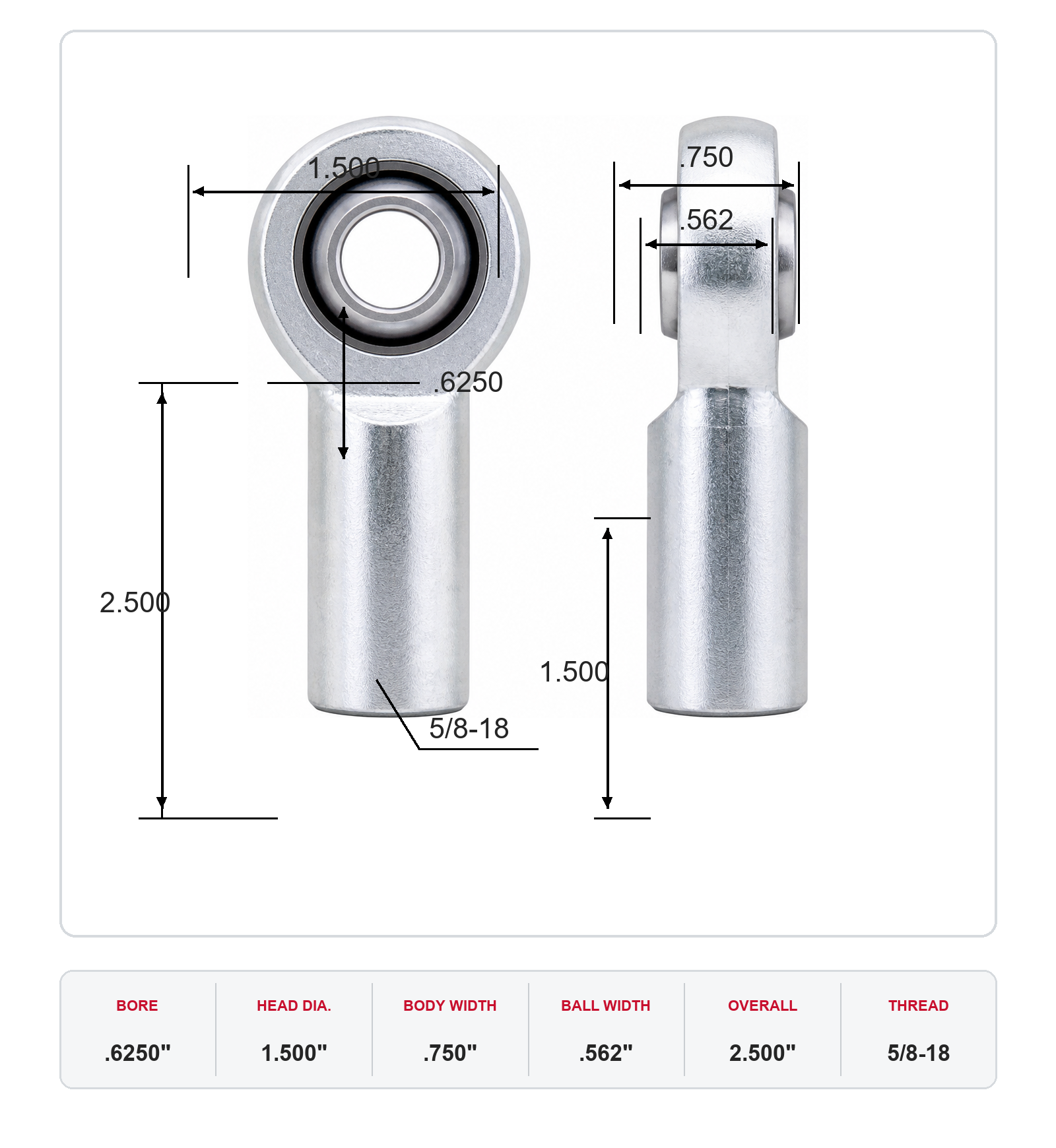

  • 5/8-18tpi with 5/8” hole .625
  • 17,955-pound load rating
  • Nylon/PTFE lined
  • Includes Jam nut
  • 1.5" Thread length
  • 16-degree misalignment

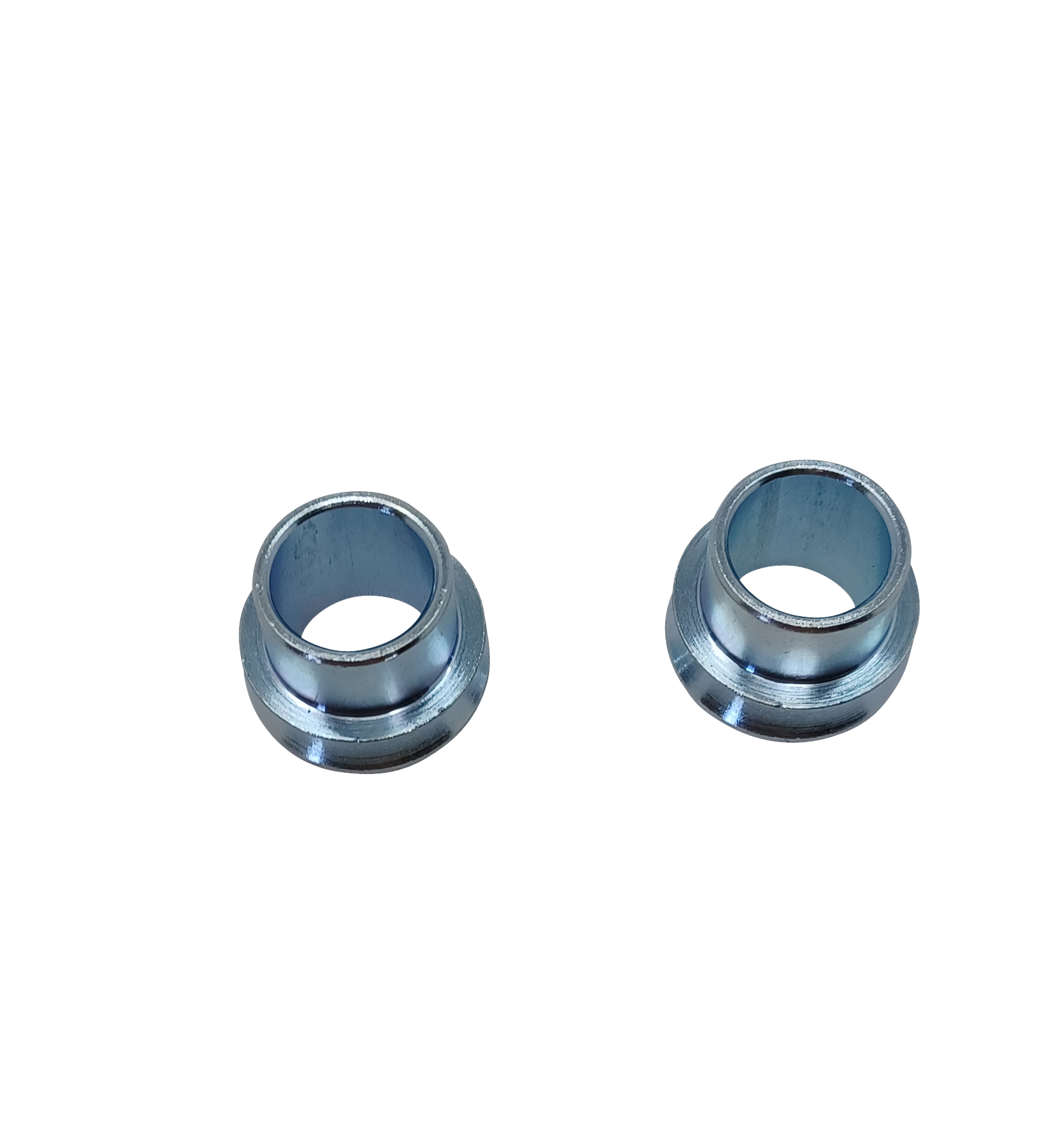

  • Optional misalignment spacers reduce from 5/8" to 1/2" bolt, mounting width of 1.25"

They are heat-treated and hard chrome plated to give you a better finish for longer.
The race is Teflon impregnated nylon for superior durability.
These rod ends have a 5/8” female thread with 18tpi.
The 5/8” bore is the strongest way to make this heim.
Used on sand rails, a-arms, drag cars, rock crawlers or anywhere a high-quality heim is needed.

These HeimJoints.net joints are a great fit for your rock crawler Jeep Toyota Buggy or any project you may be building.
Common uses are steering joints and link joints on hot rods drag racing 4-link lowrider or custom builds.
