.500" 1/2" Rod End Heim Joint with jam nut Right Hand thread (Normal)

.500" 1/2" Rod End Heim Joint with jam nut Right Hand thread (Normal)

SKU:12-RHJ

Regular price $15.00 USD
Regular price Sale price $15.00 USD
Sale Sold out
Shipping calculated at checkout.

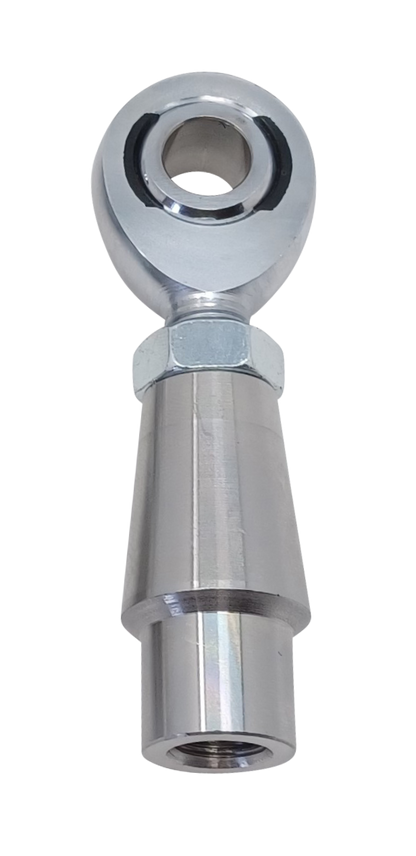

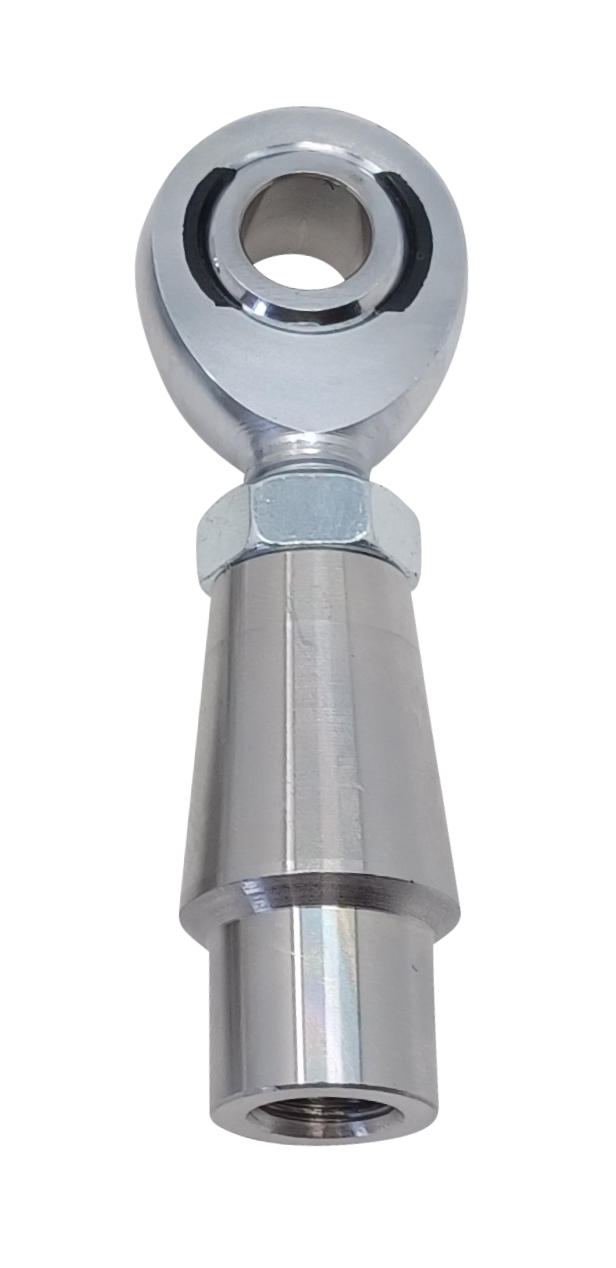

Add a tube adapter

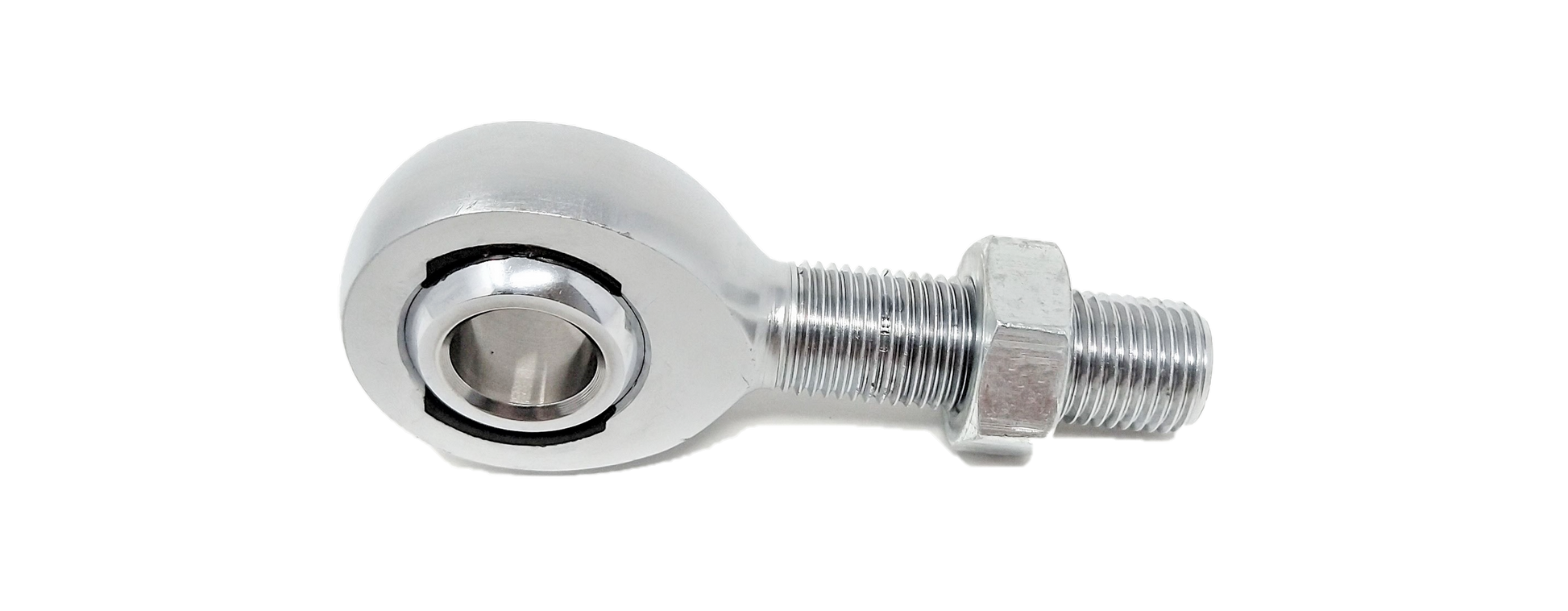

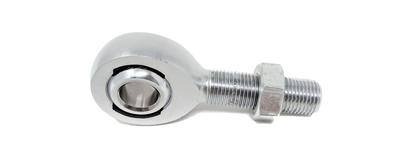

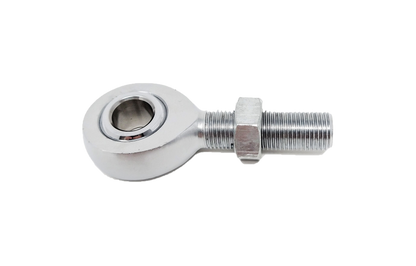

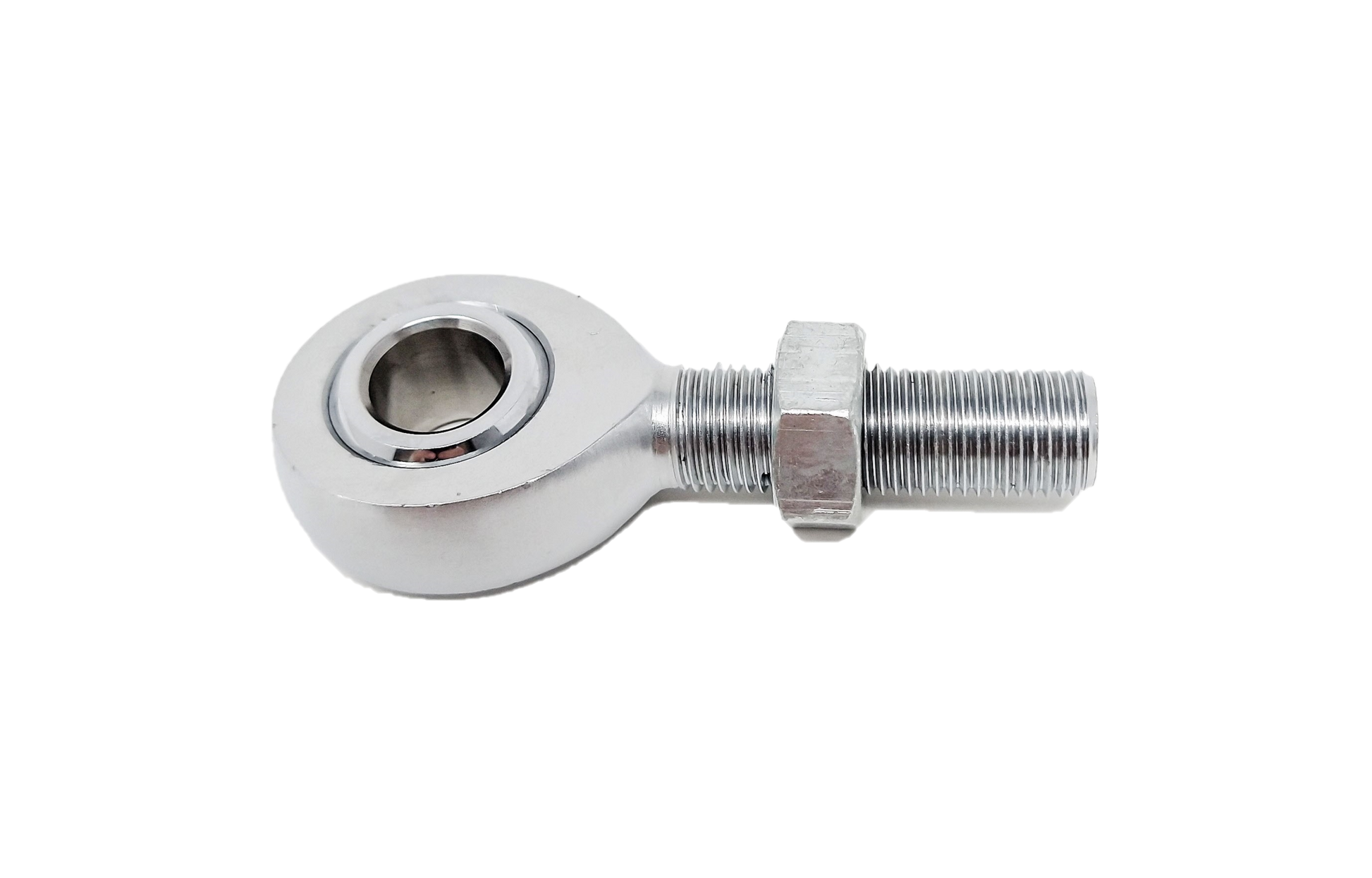

1/2" .500" Rod End Heim Joint

  • Includes 1 right-hand thread Heim set. Spacer Jam nut and optional tube adapter included.
  • 1/2” 20tpi Thread
  • 1/2" bolt hole (Grade 8 or better recommended)
  • 1-piece design Heat Treated steel
  • Never needs grease
  • 16,000-pound static load rating
  • Male thread
  • Thread length 1.5"

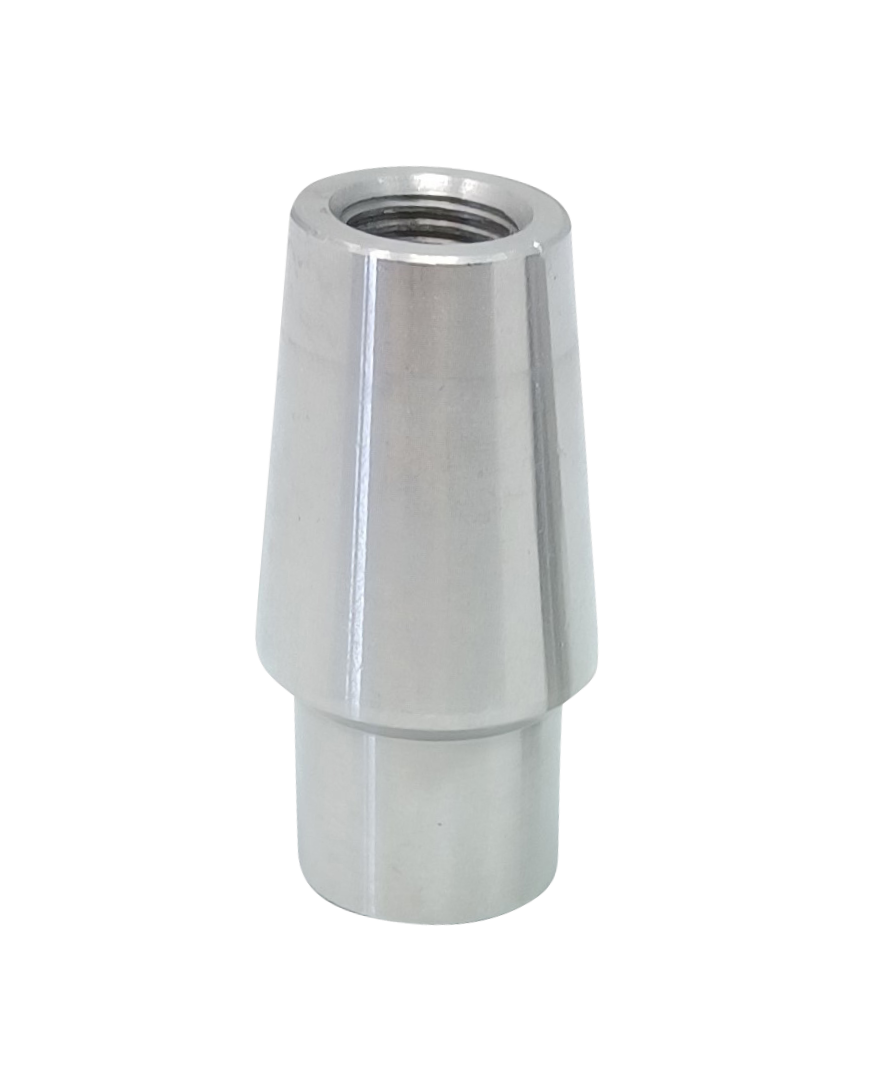

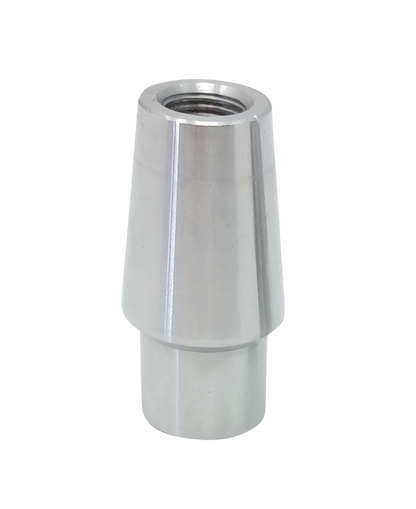

  • Optional tube adapter fits tube with an ID of .800"

These XMR heim joints are great quality. They are heat-treated and hard chrome plated to give you a better finish for longer.
The race is Teflon impregnated nylon for superior durability.
These rod ends have a 1/2"Shaft with 20tpi.
The 1/2” bore is the strongest way to make this heim.

The included jam nut is zinc coated for superior durability.

These HeimJoints.net joints are a great fit for your rock crawler Jeep Toyota Buggy or any project you may be building.
Common uses are steering joints and link joints on hot rods drag racing 4-link lowrider or custom builds.
