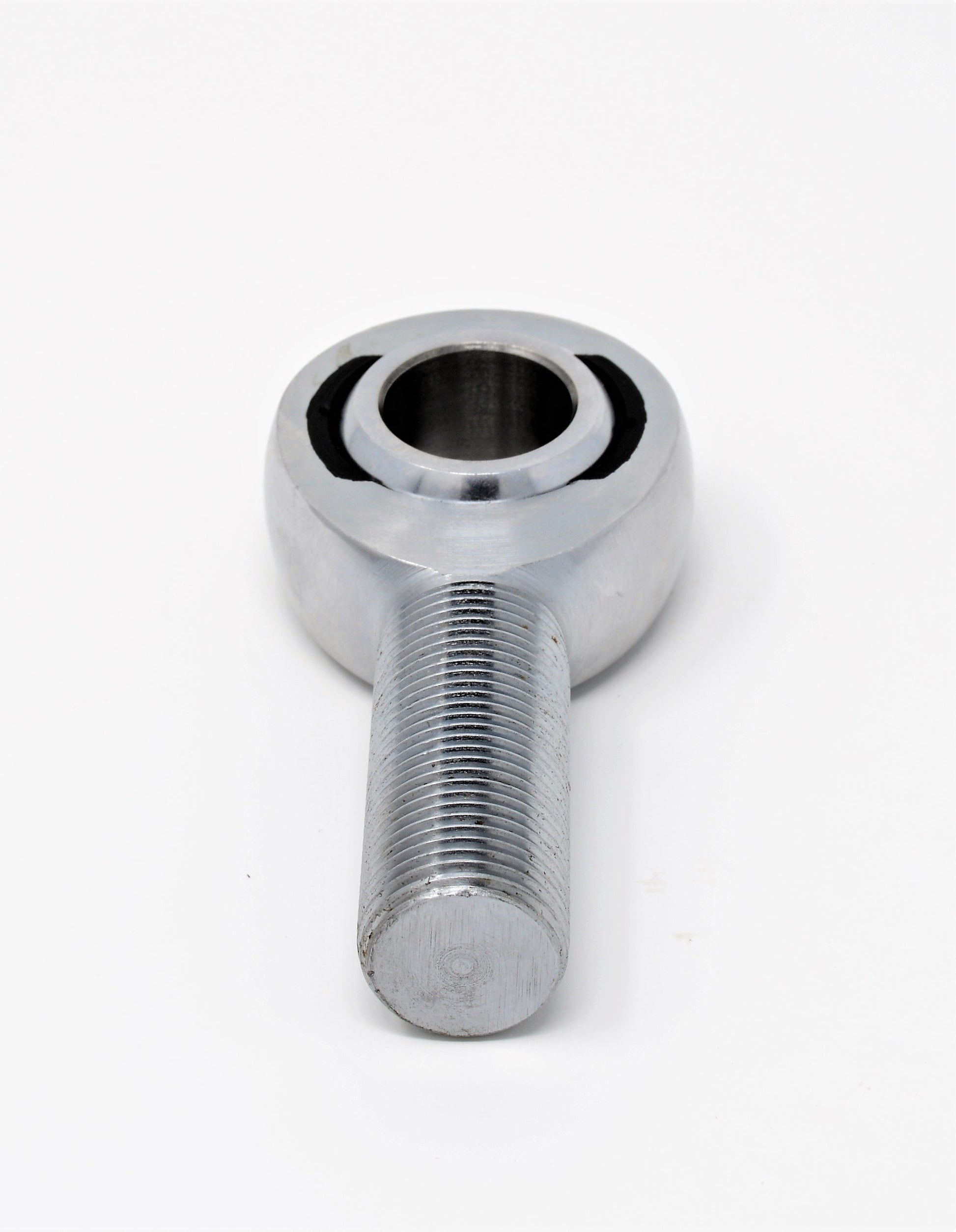

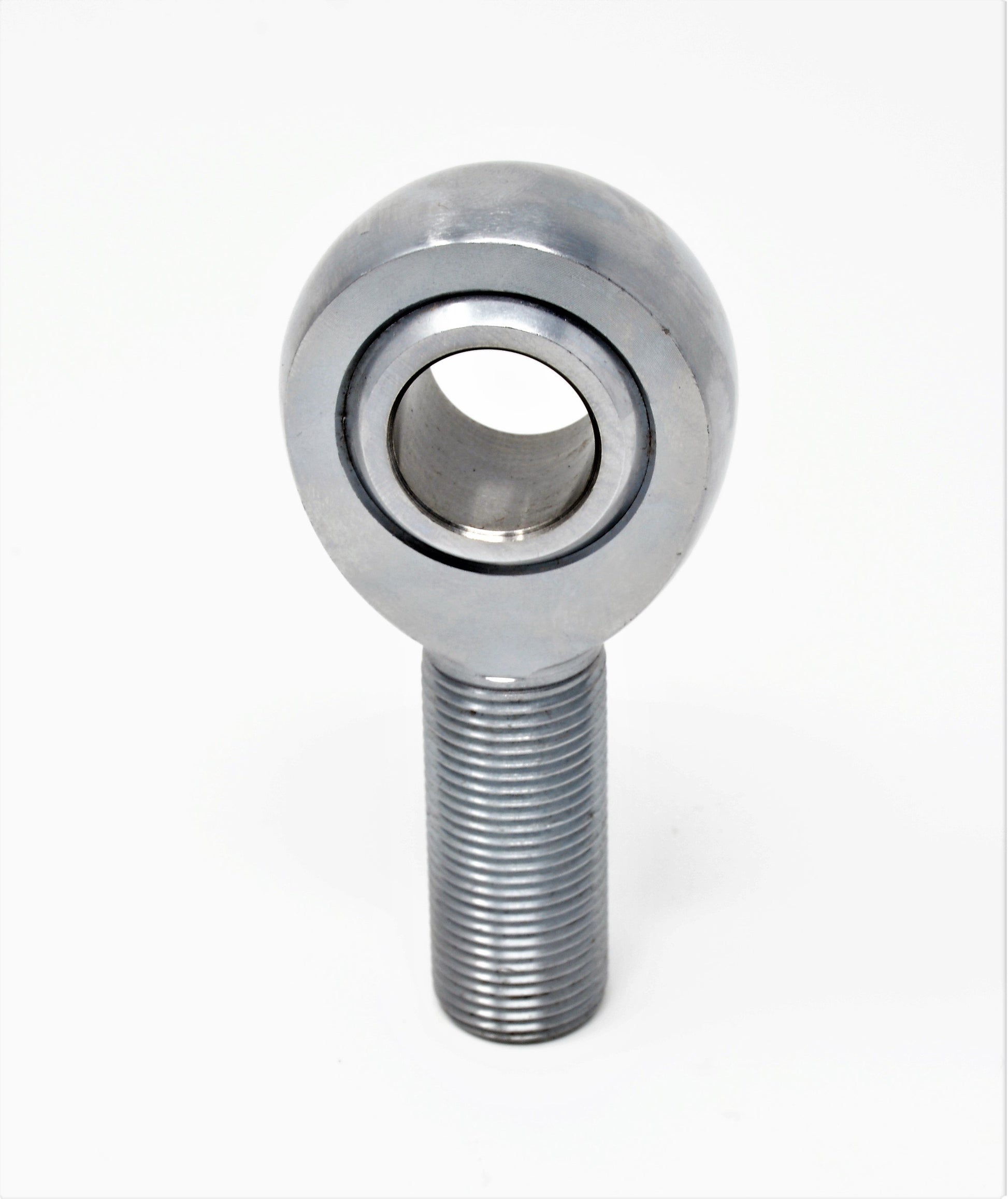

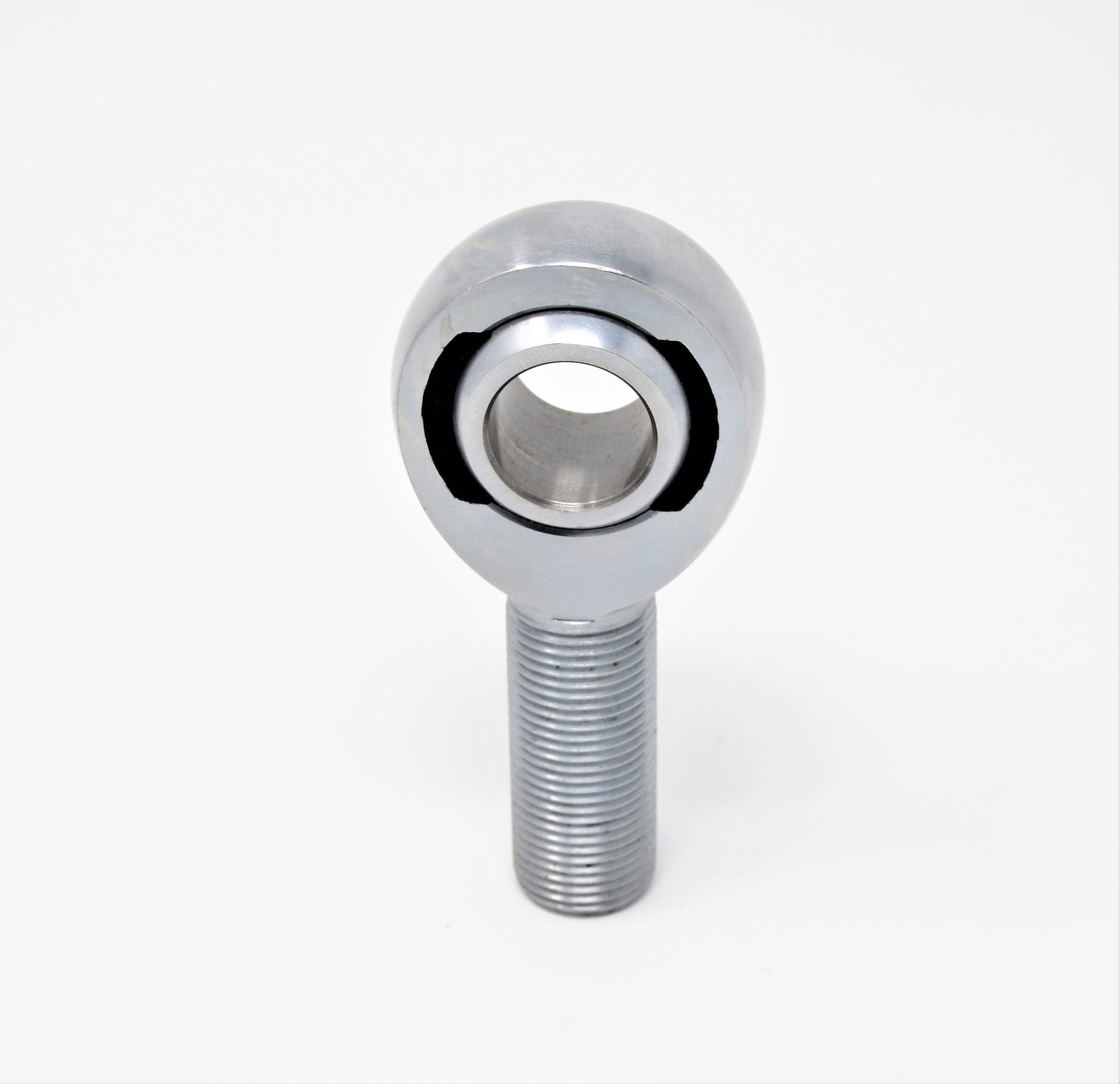

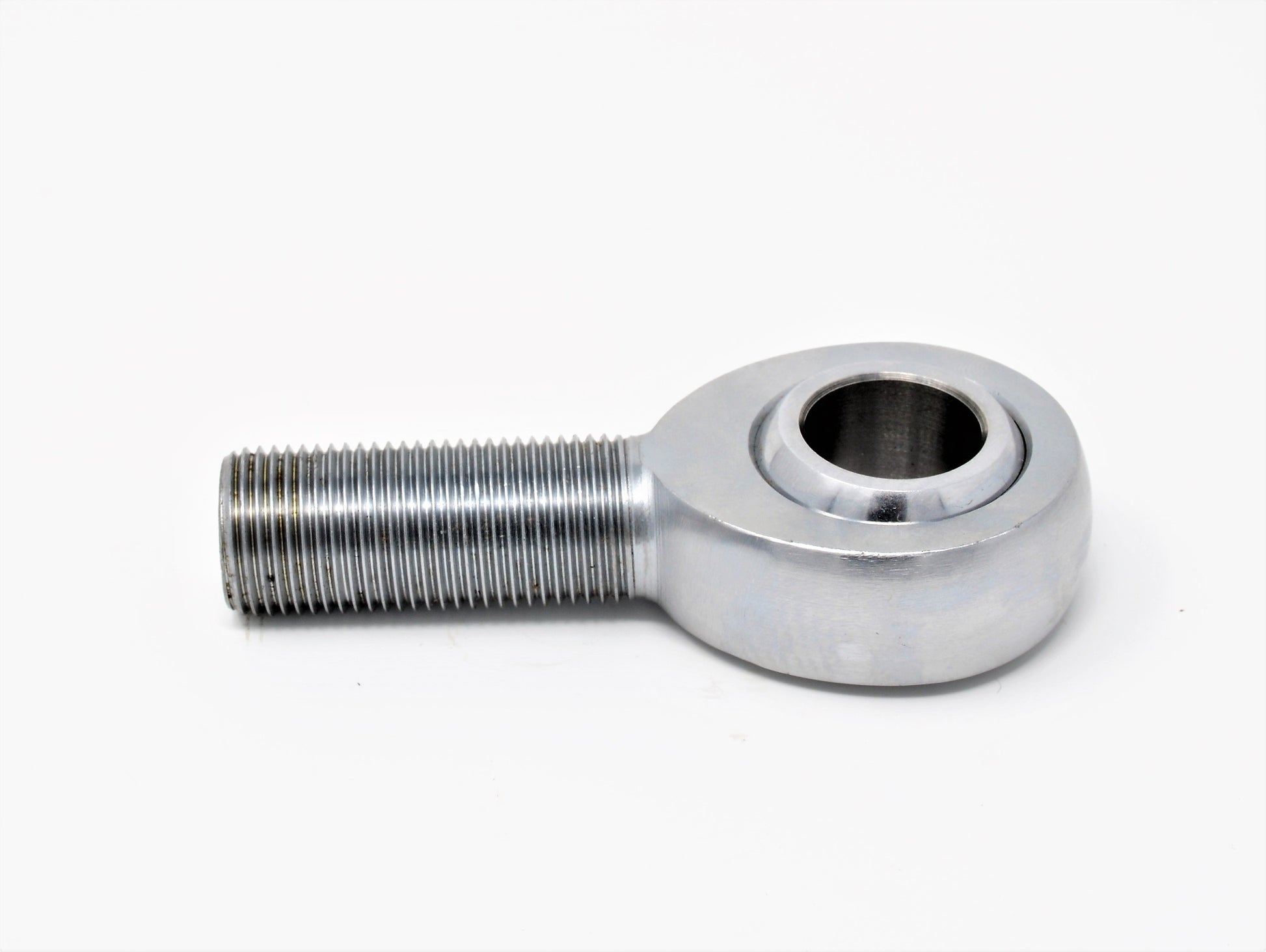

.625" 5/8" Heim Joint and Jam nut Left Thread (Reverse)

.625" 5/8" Heim Joint and Jam nut Left Thread (Reverse)

SKU:58-LHJ

Regular price $13.00 USD
Regular price Sale price $13.00 USD
Sale Sold out
Shipping calculated at checkout.
Add misalignment spacers
  • 4130 Aircraft-grade Chromoly steel
  • Right-Hand thread (Normal)
  • Chrome plated finish

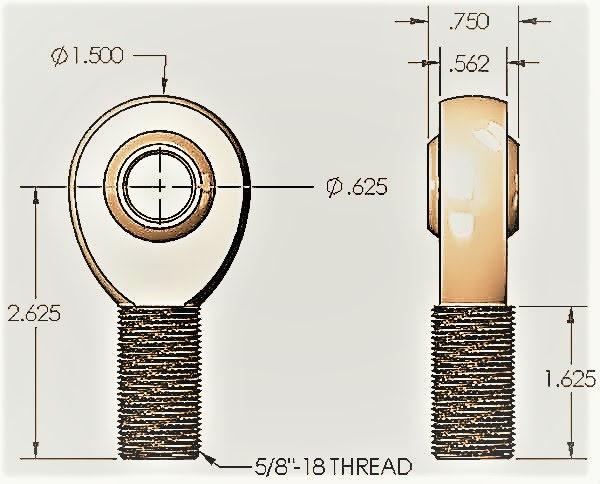

  • 5/8-18tpi with 5/8” hole .625
  • 17,955-pound load rating

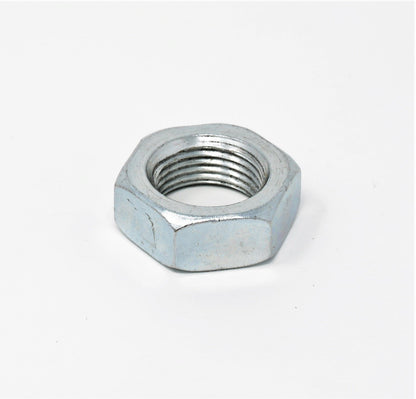

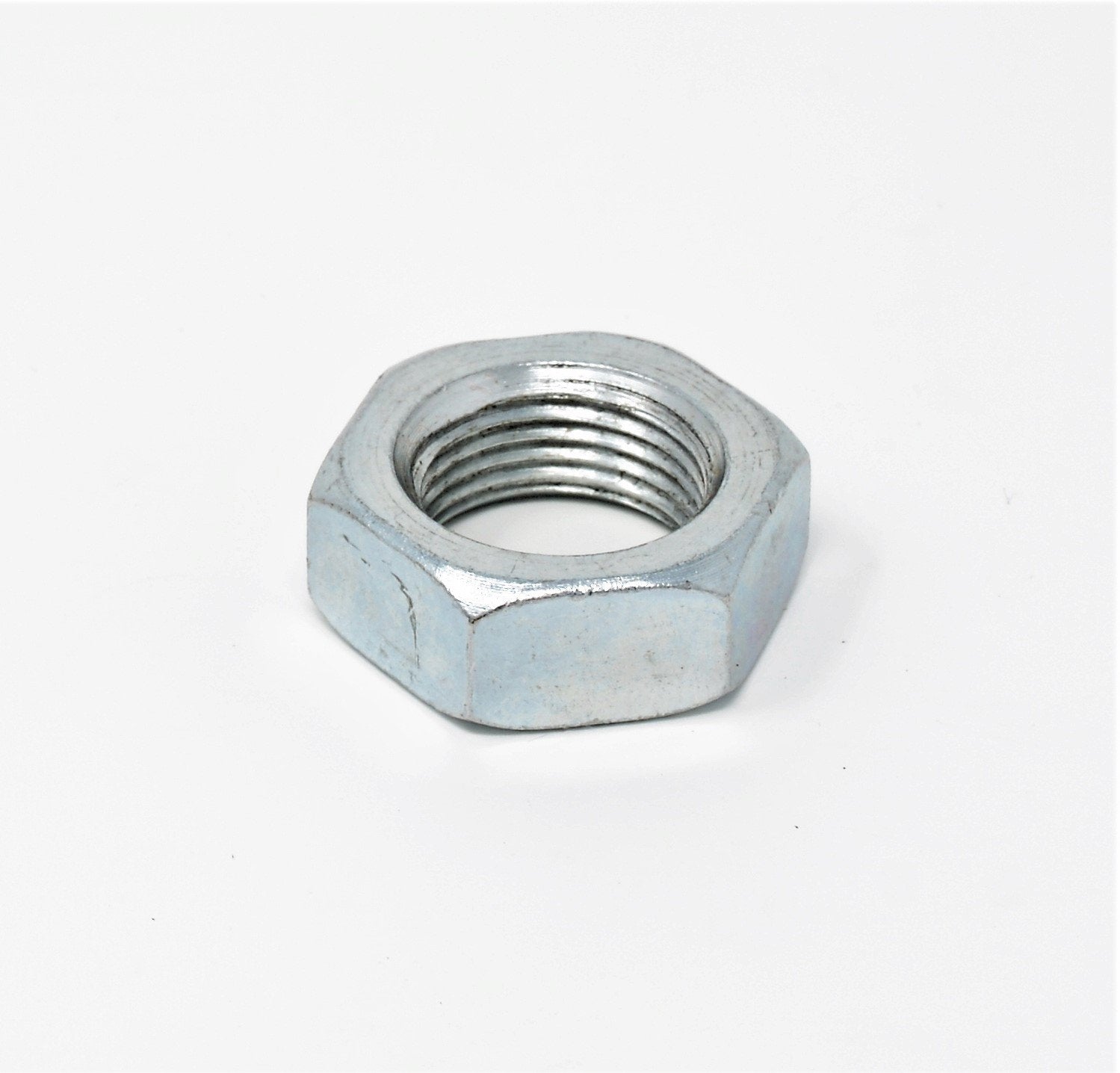

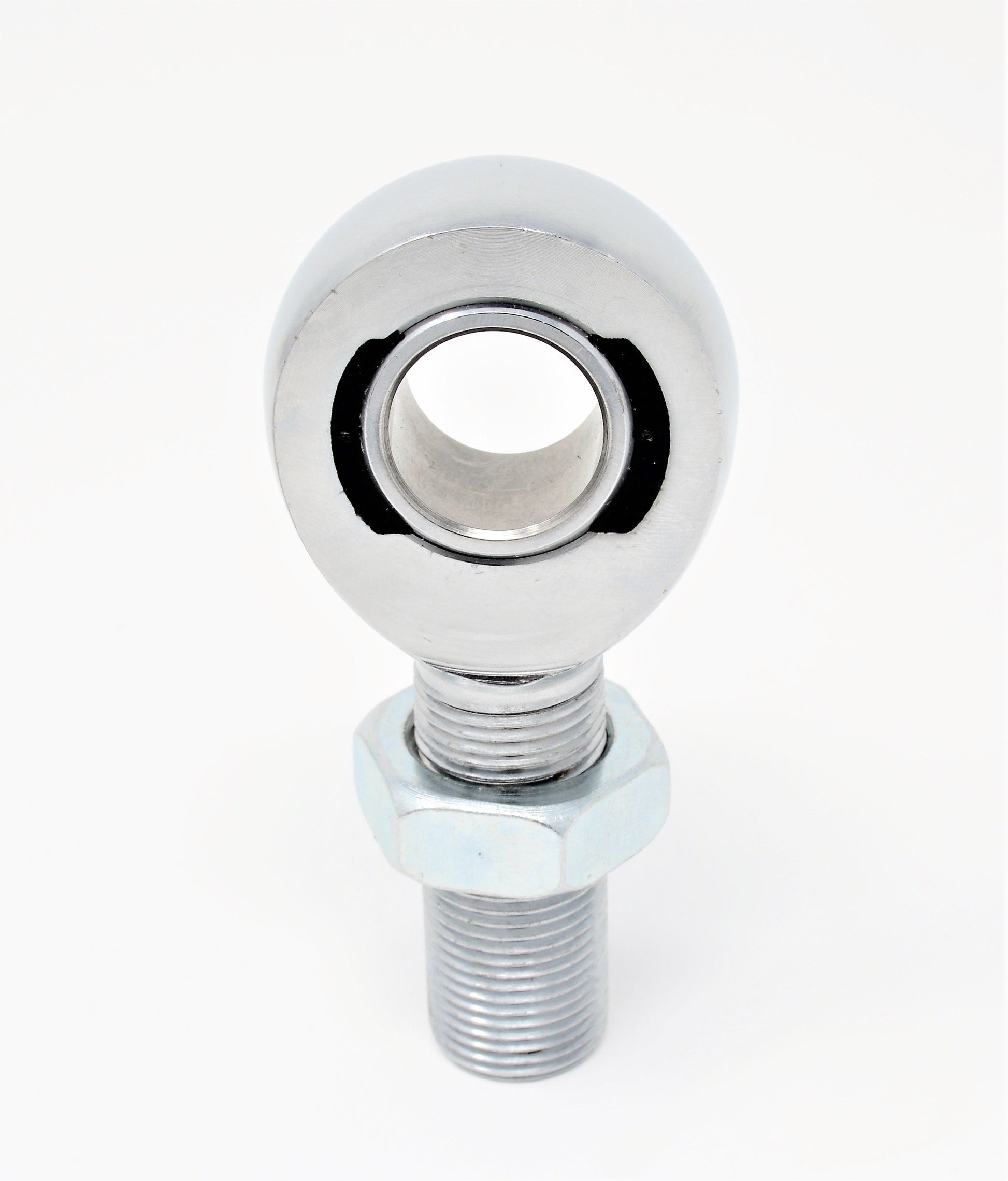

  • Includes Jam nut, and Hiem joint

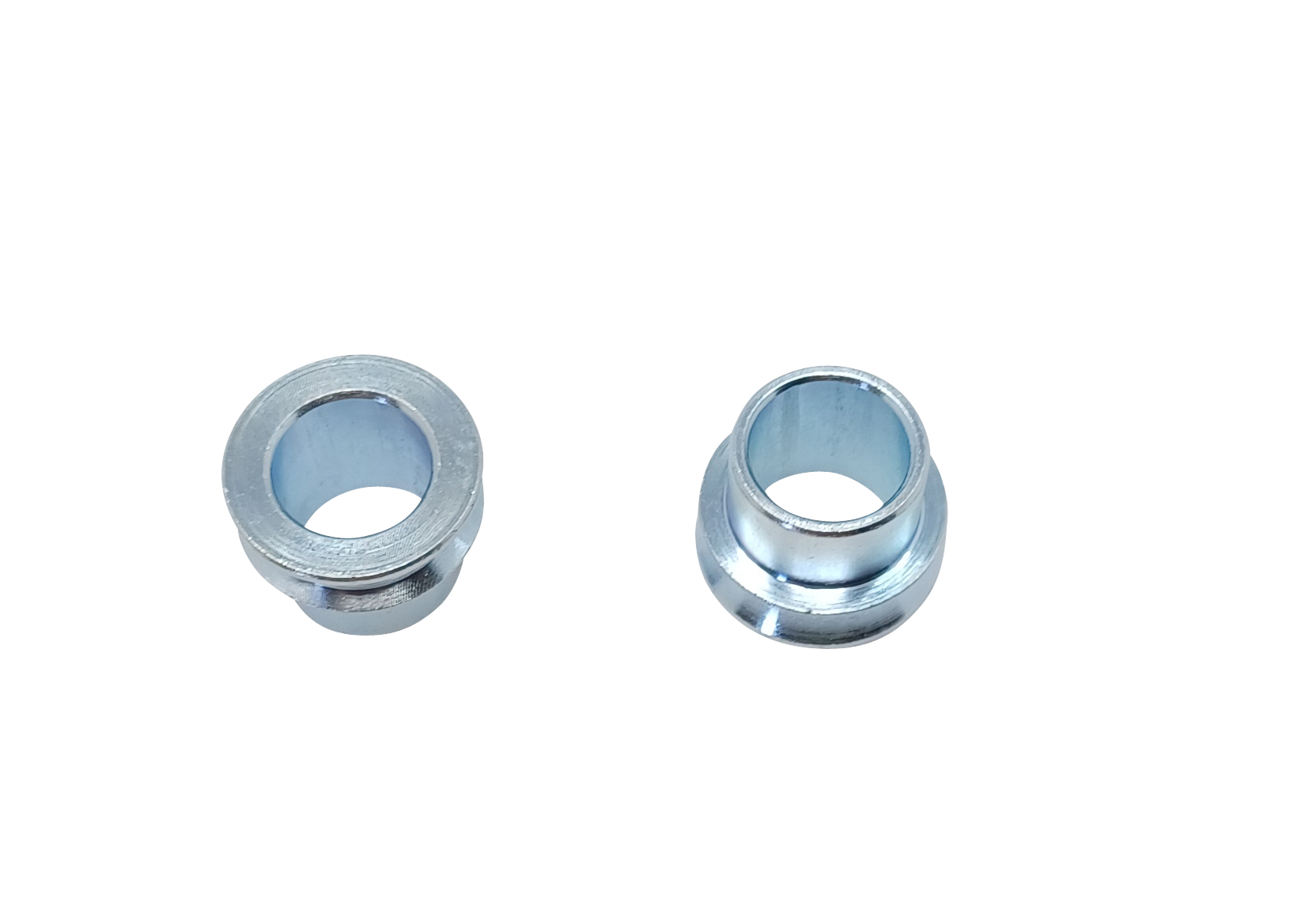

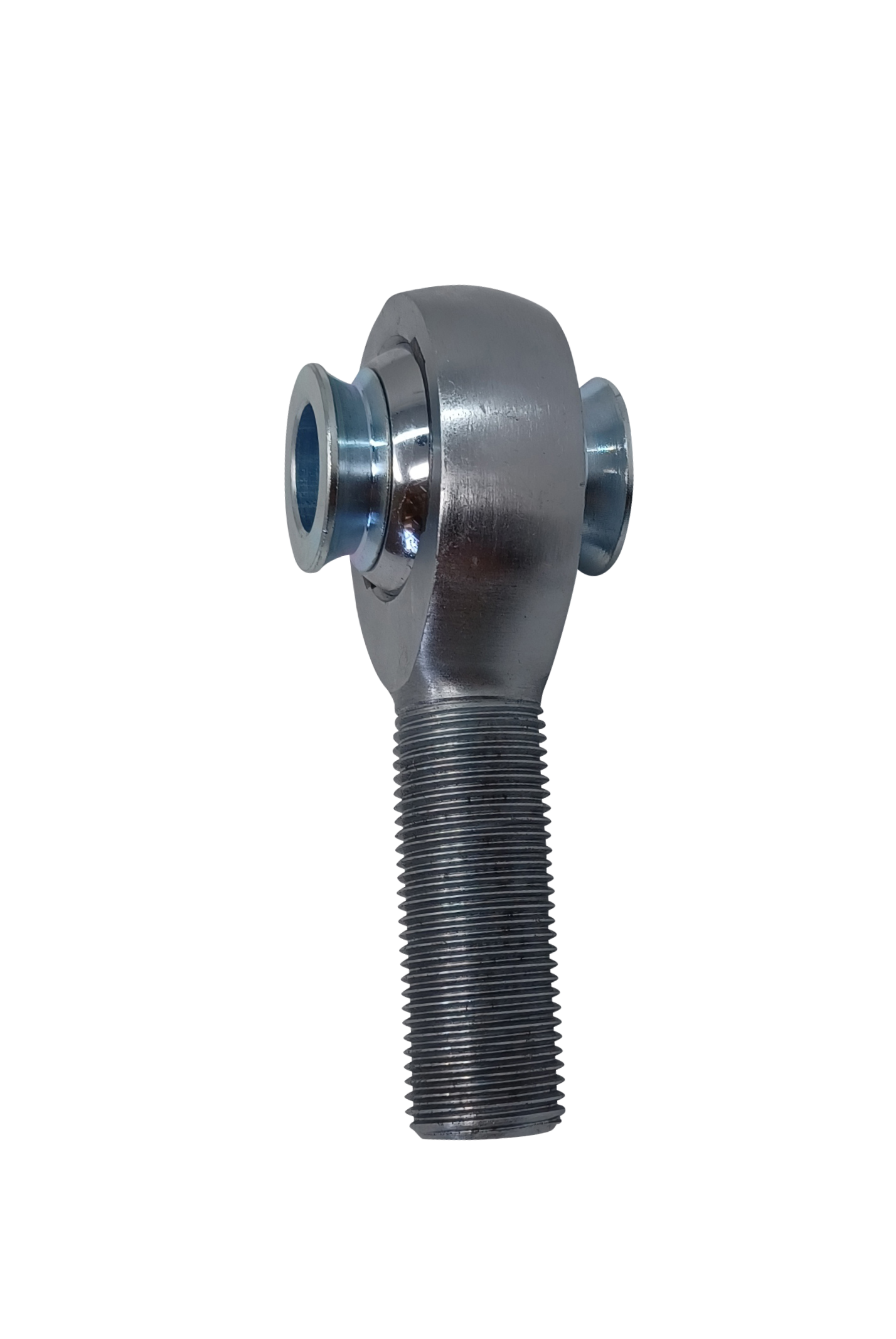

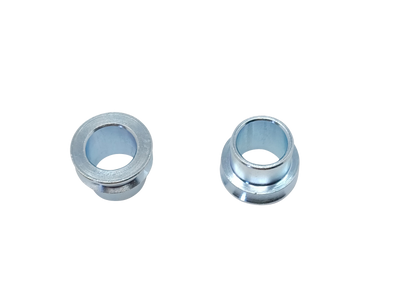

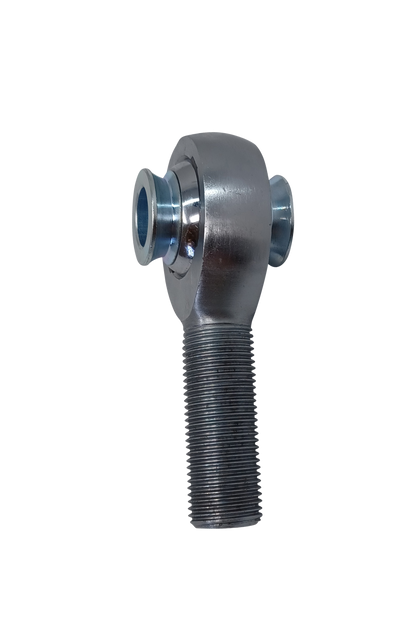

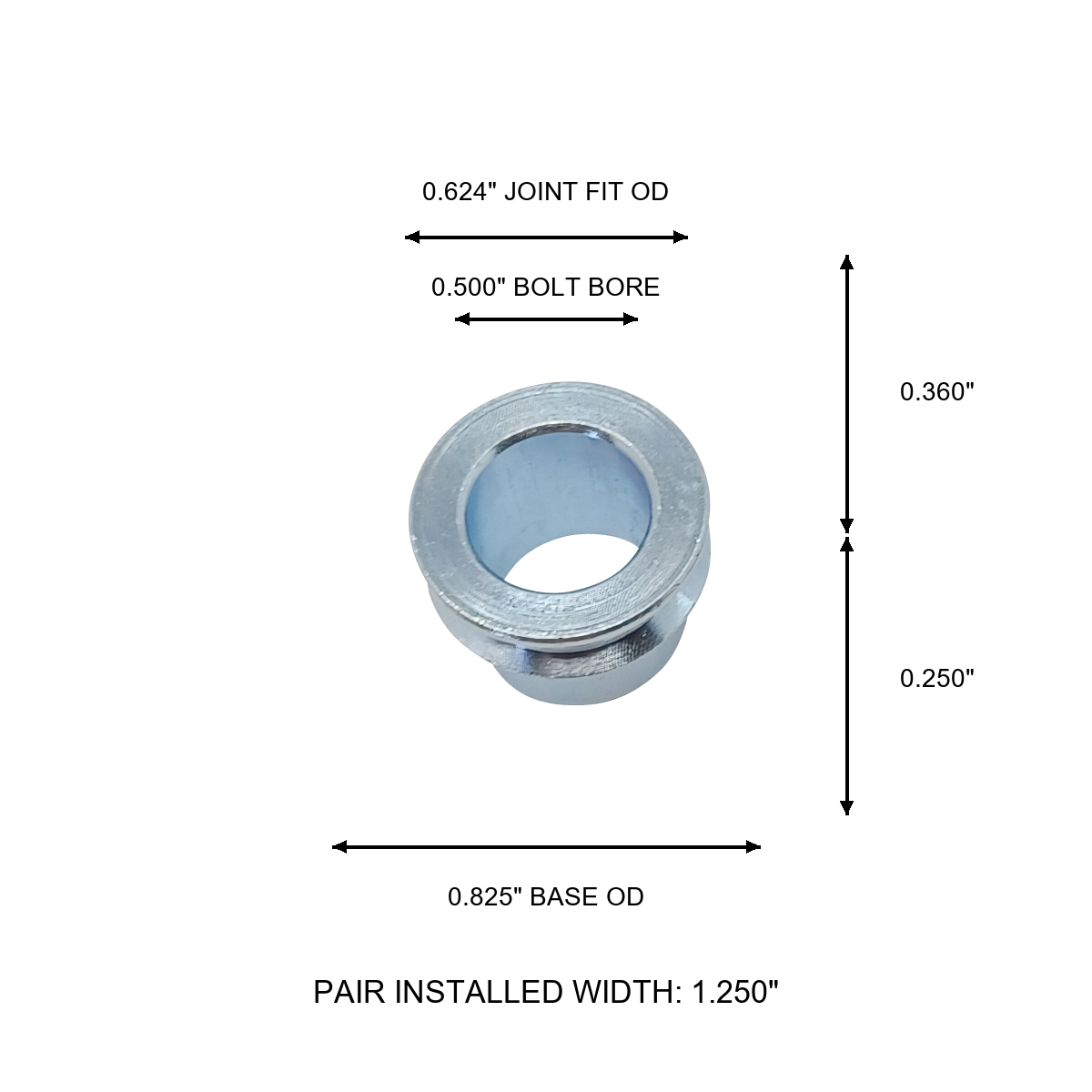

  • Optional misalignment spacers reduce from 5/8" to 1/2" bolt, mounting width of 1.25"


The race is Teflon impregnated nylon for superior durability.
These rod ends have a 5/8” Shaft with 18tpi.
The 5/8” bore is the strongest way to make this heim.
Used on sand rails, a-arms, drag cars, rock crawlers or anywhere a high-quality heim is needed.

These HeimJoints.net joints area great fit for your rock crawler Jeep Toyota Buggy or any project you may be building.
Common uses are steering joints and link joints on hot rods drag racing 4-link lowrider or custom builds.
