.625" 5/8" Heim Joint KIT Left and Right
.625" 5/8" Heim Joint KIT Left and Right
SKU:58-KIT
Regular price
$31.00 USD
Regular price
Sale price
$31.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
5/8" Heim Joint benefits

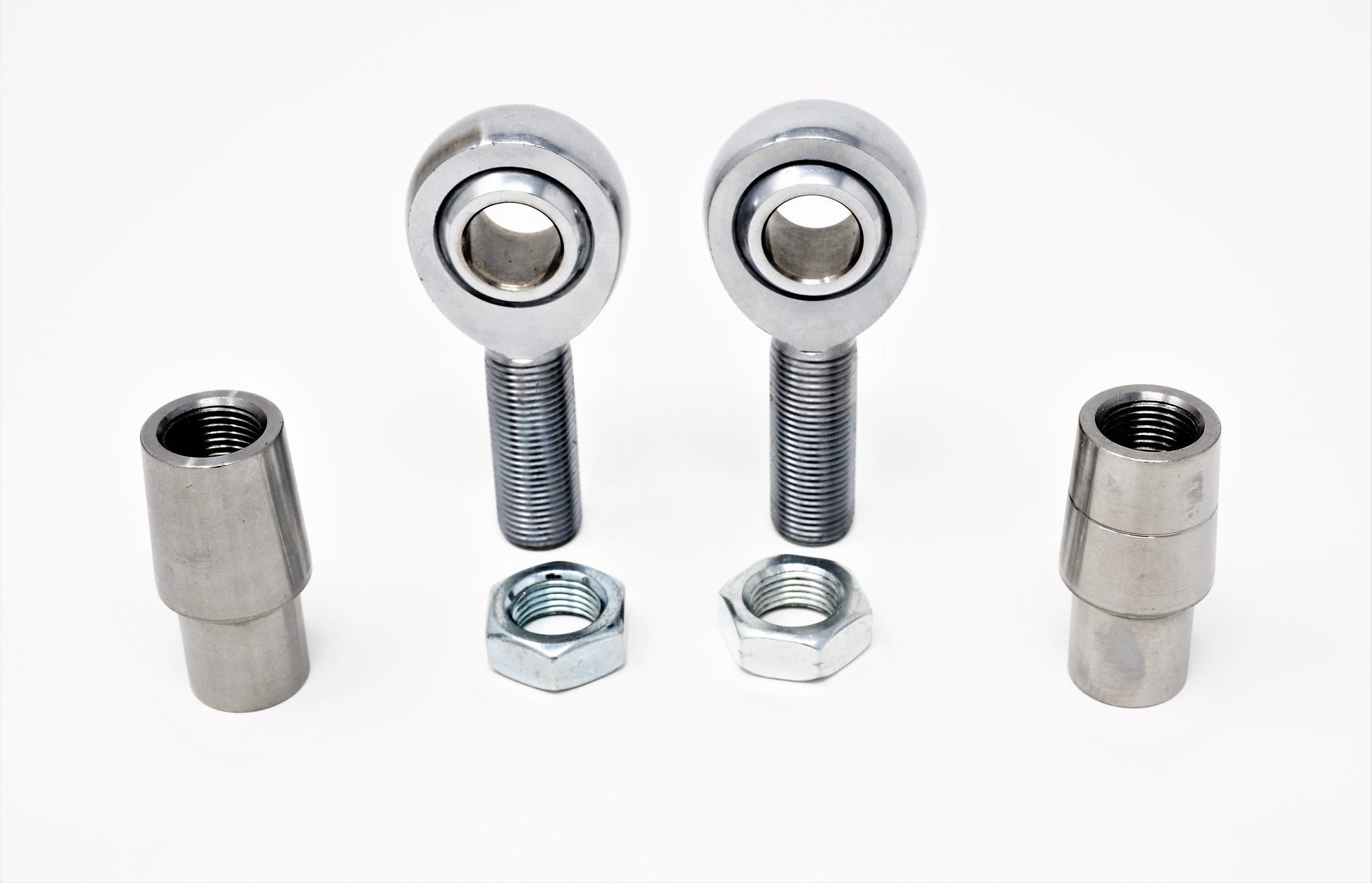

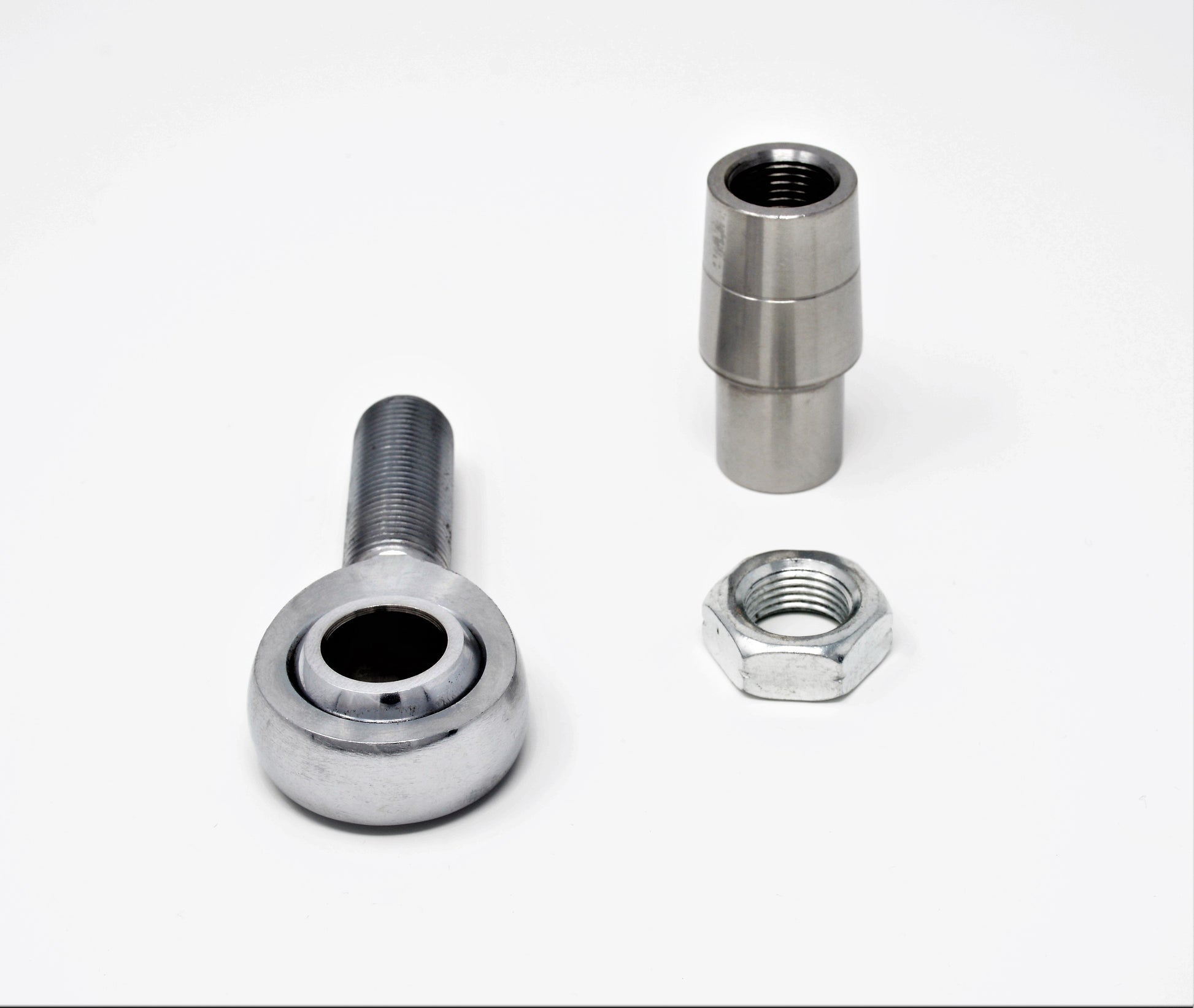

- includes 1- Left-hand and 1- Right-hand thread joint
- 4130 Aircraft-grade Chromoly steel
- Chrome plated finish

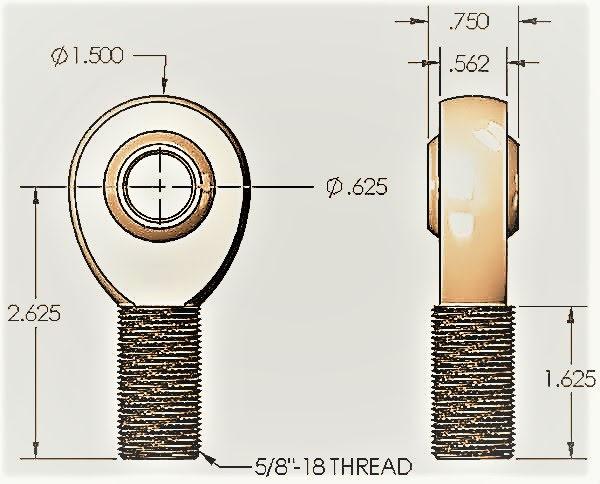

- 5/8-18tpi with 5/8” hole .625
- 17,955-pound load rating

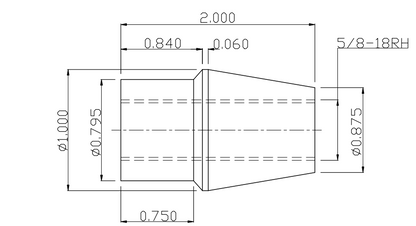

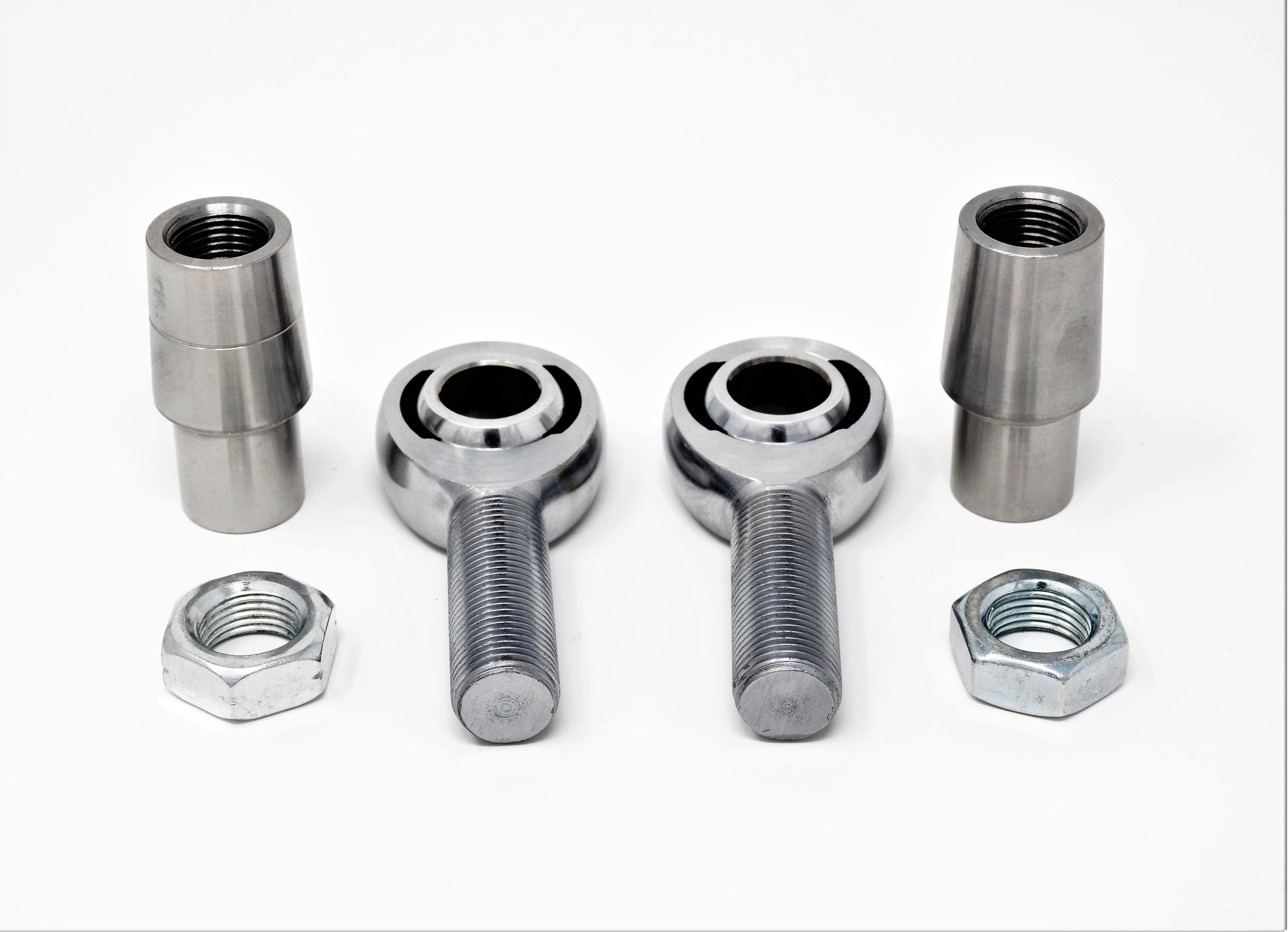

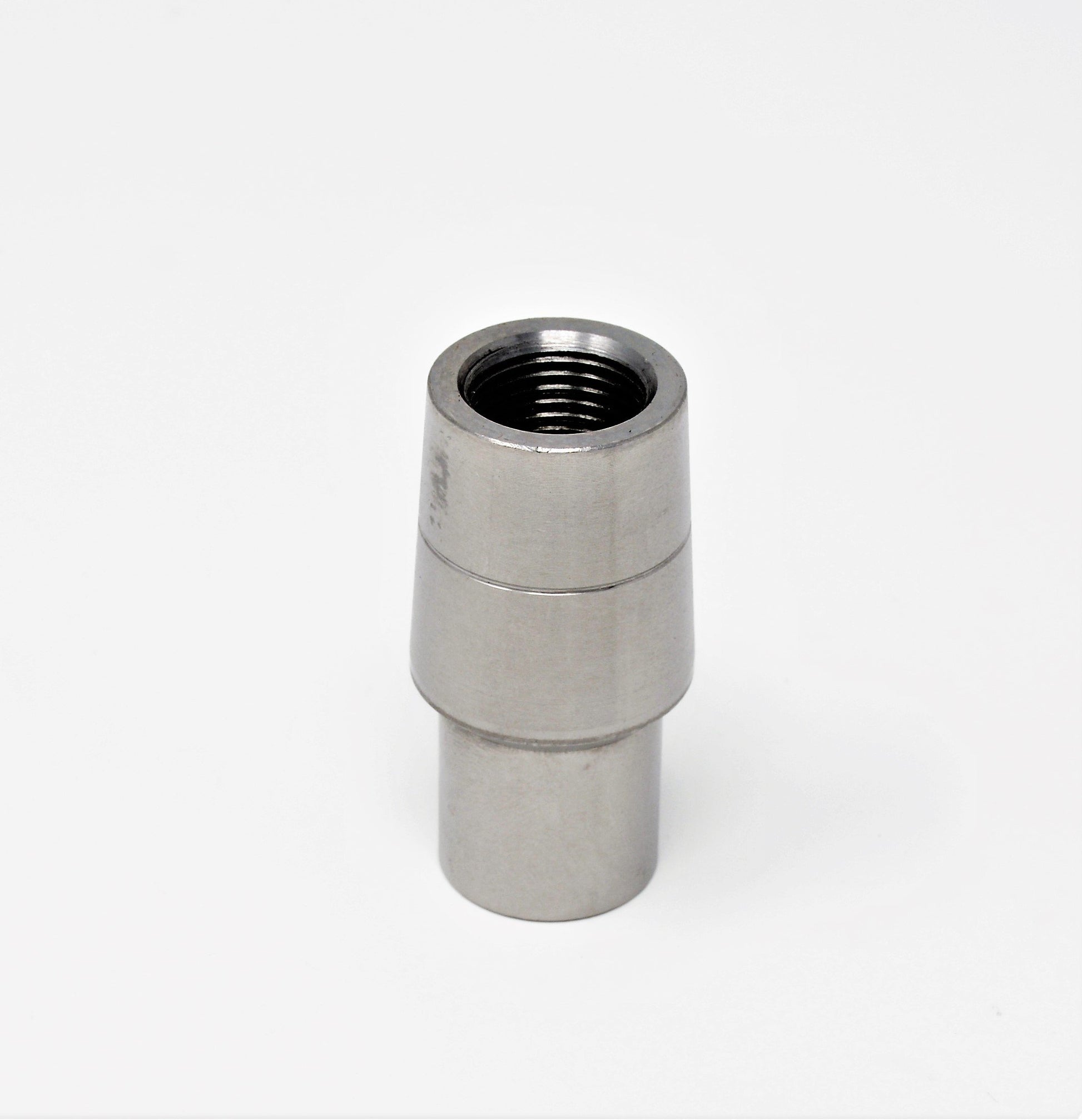

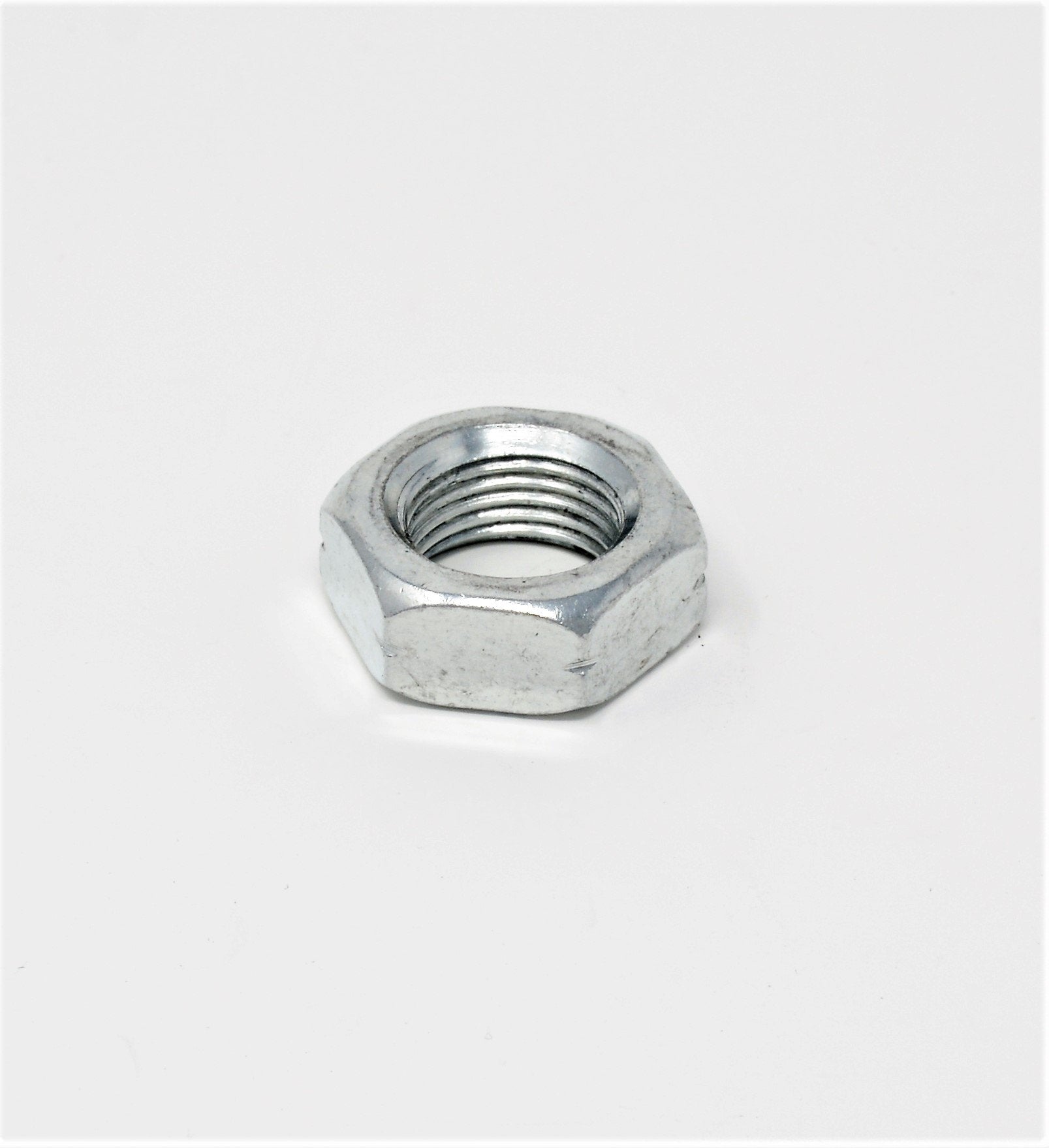

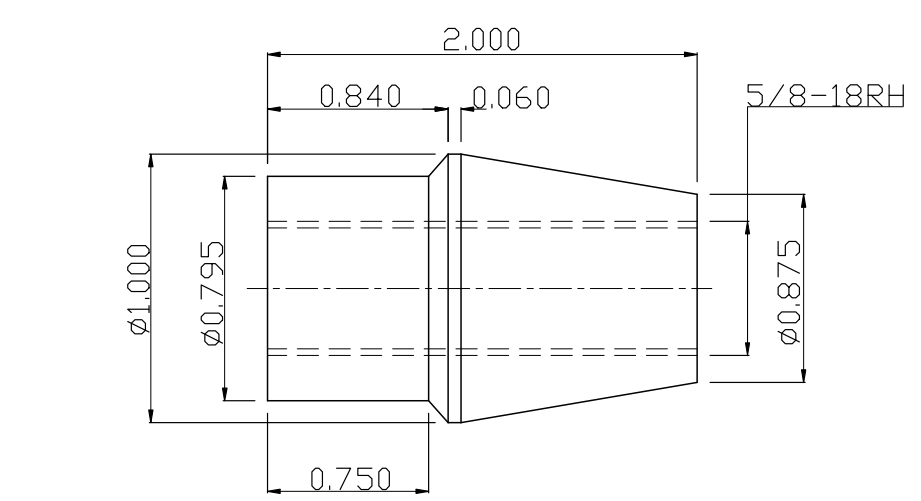

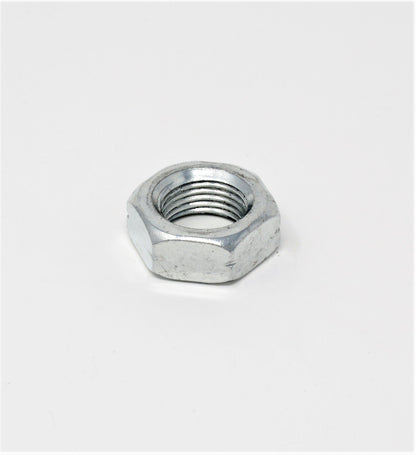

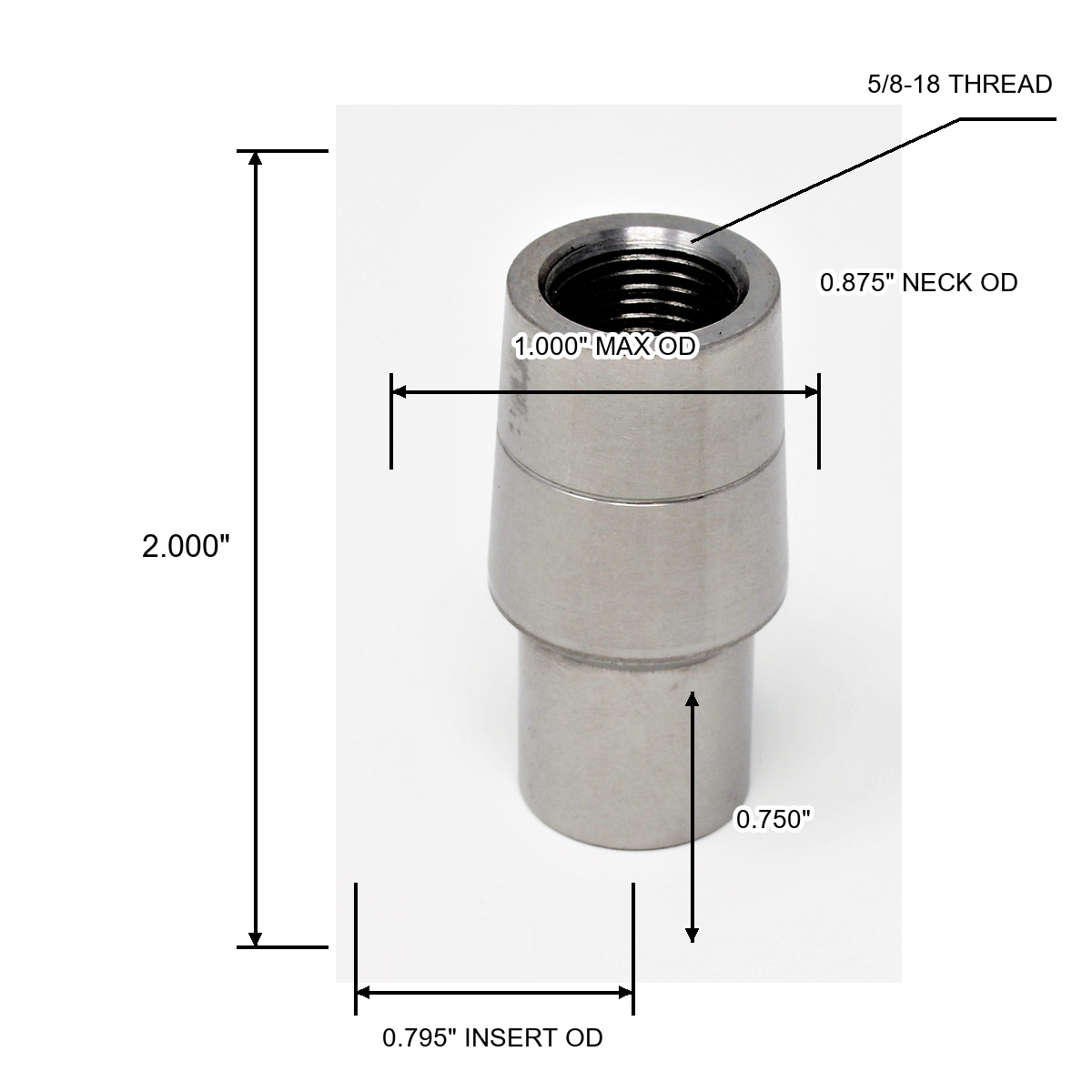

- Includes Jam nuts, and tube adapters for .790” id tube
- Will fit 1" .090" wall, will NOT fit 1" .120"wall

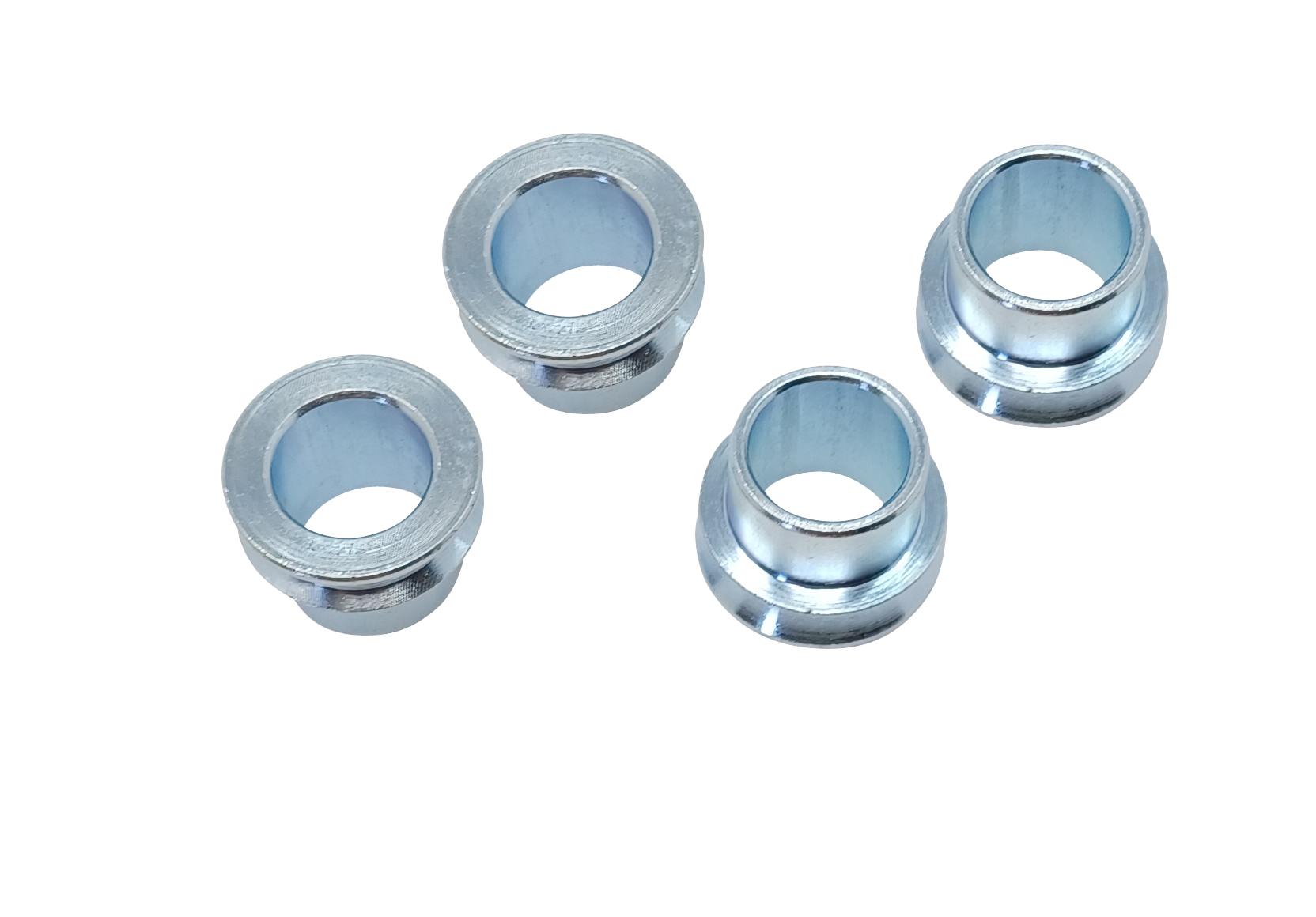

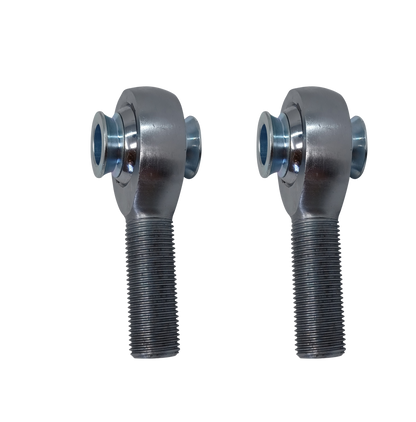

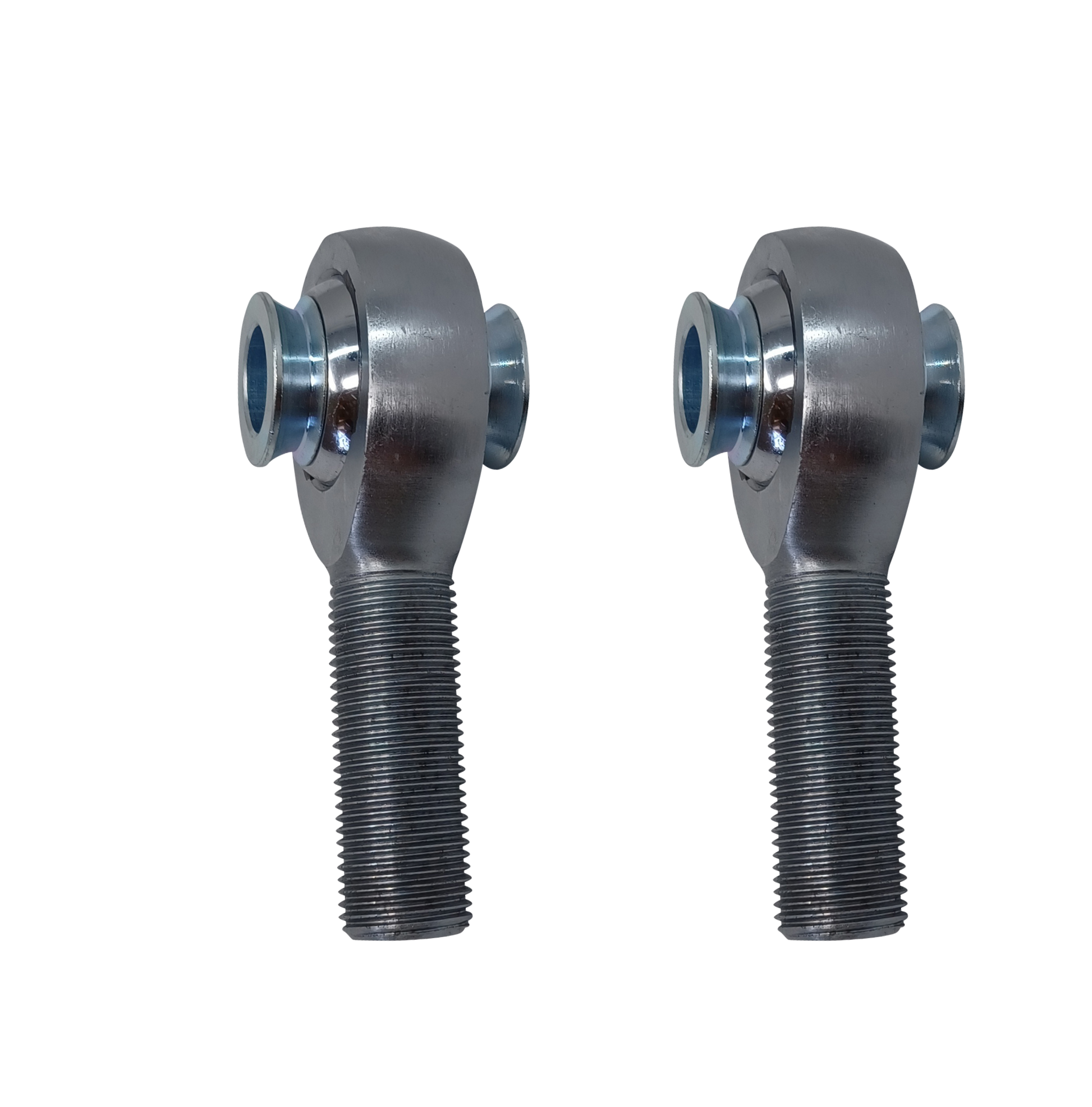

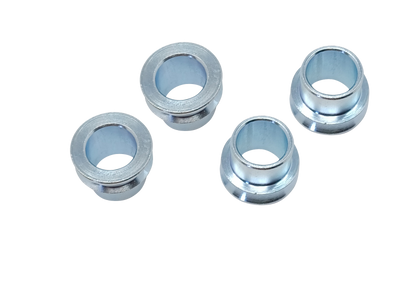

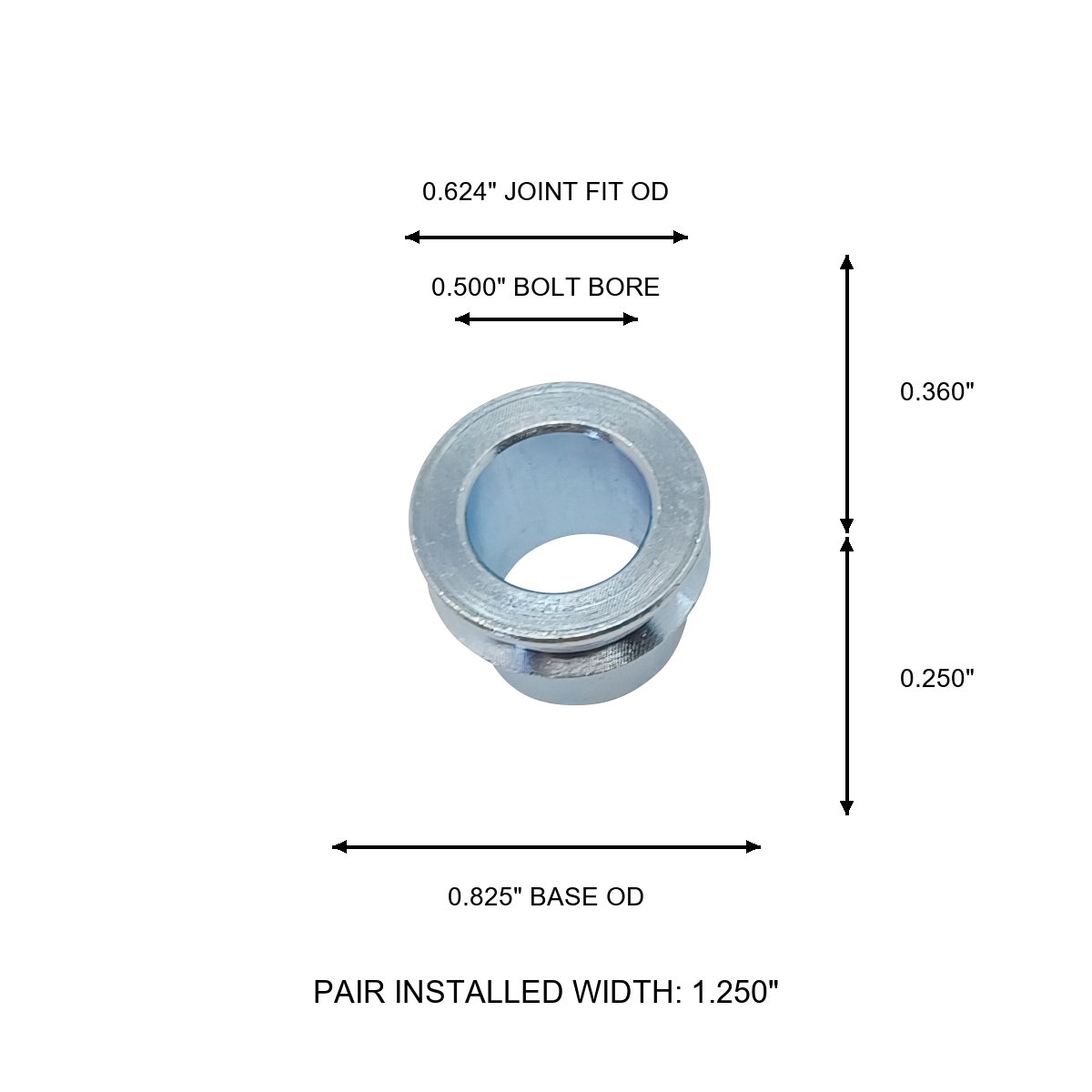

- Optional misalignment spacers reduce from 5/8" to 1/2" bolt, mounting width of 1.25"
They are heat-treated and hard chrome plated to give you a better finish for longer.
The race is Teflon impregnated nylon for superior durability.

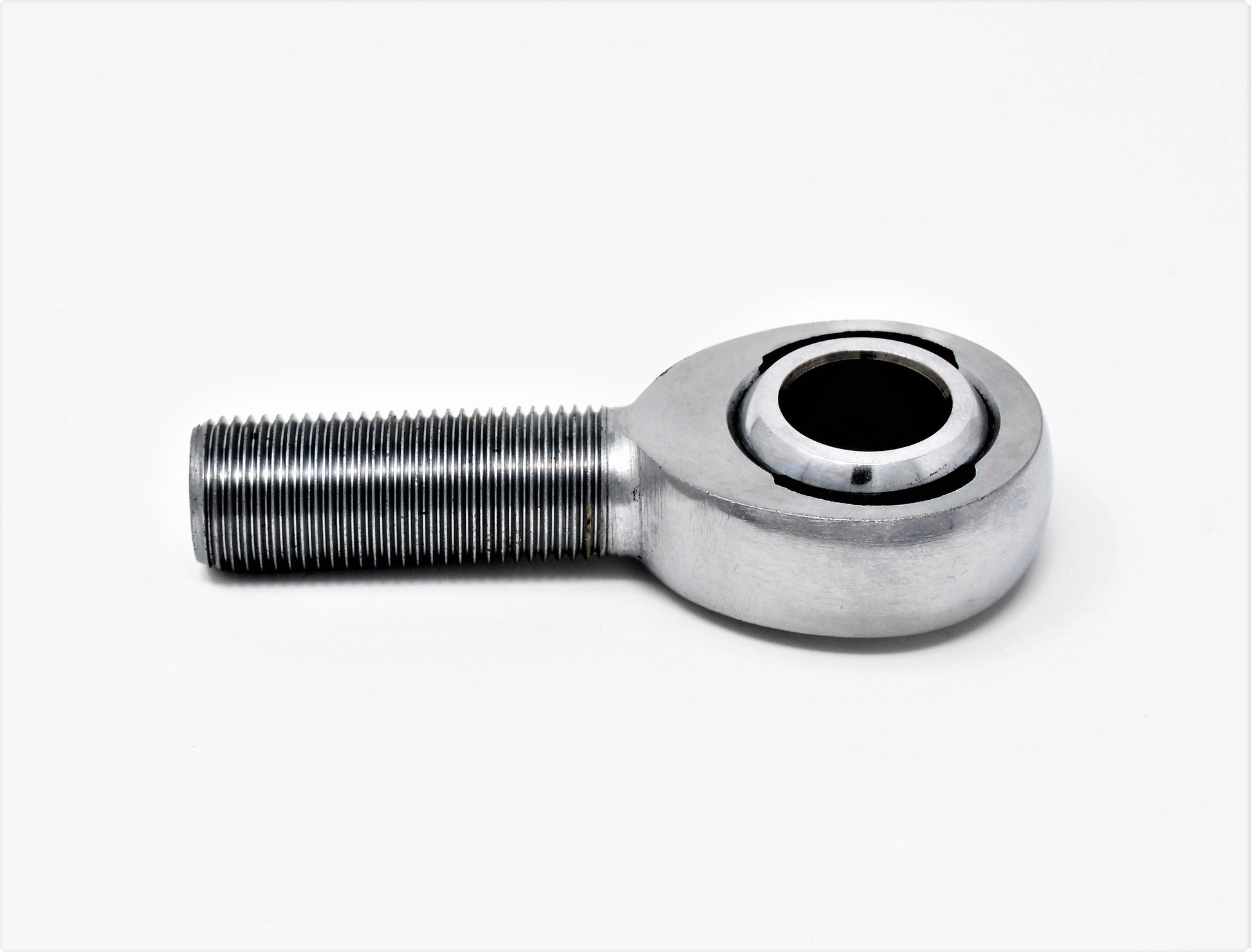

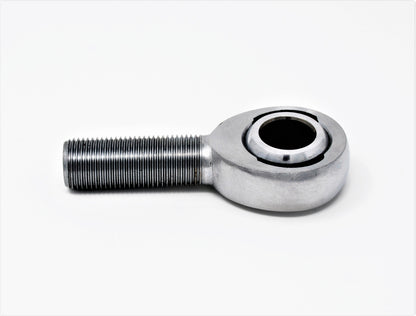

These rod ends have a 5/8” Shaft with 18tpi.
The 5/8” bore is the strongest way to make this heim.
Used on sand rails, a-arms, drag cars, trac-bars, rock crawlers, or anywhere a high-quality heim is needed.
These HeimJoints.net joints area great fit for your rock crawler Jeep Toyota Buggy or any project you may be building.
Common uses are steering joints and link joints on hot rods drag racing 4-link lowrider or custom builds.
