.750" 3/4” Rod End Heim Joint KIT Left hand thread (reverse)

.750" 3/4” Rod End Heim Joint KIT Left hand thread (reverse)

SKU:3/4-LHK

Regular price $27.00 USD
Regular price Sale price $27.00 USD
Sale Sold out
Shipping calculated at checkout.

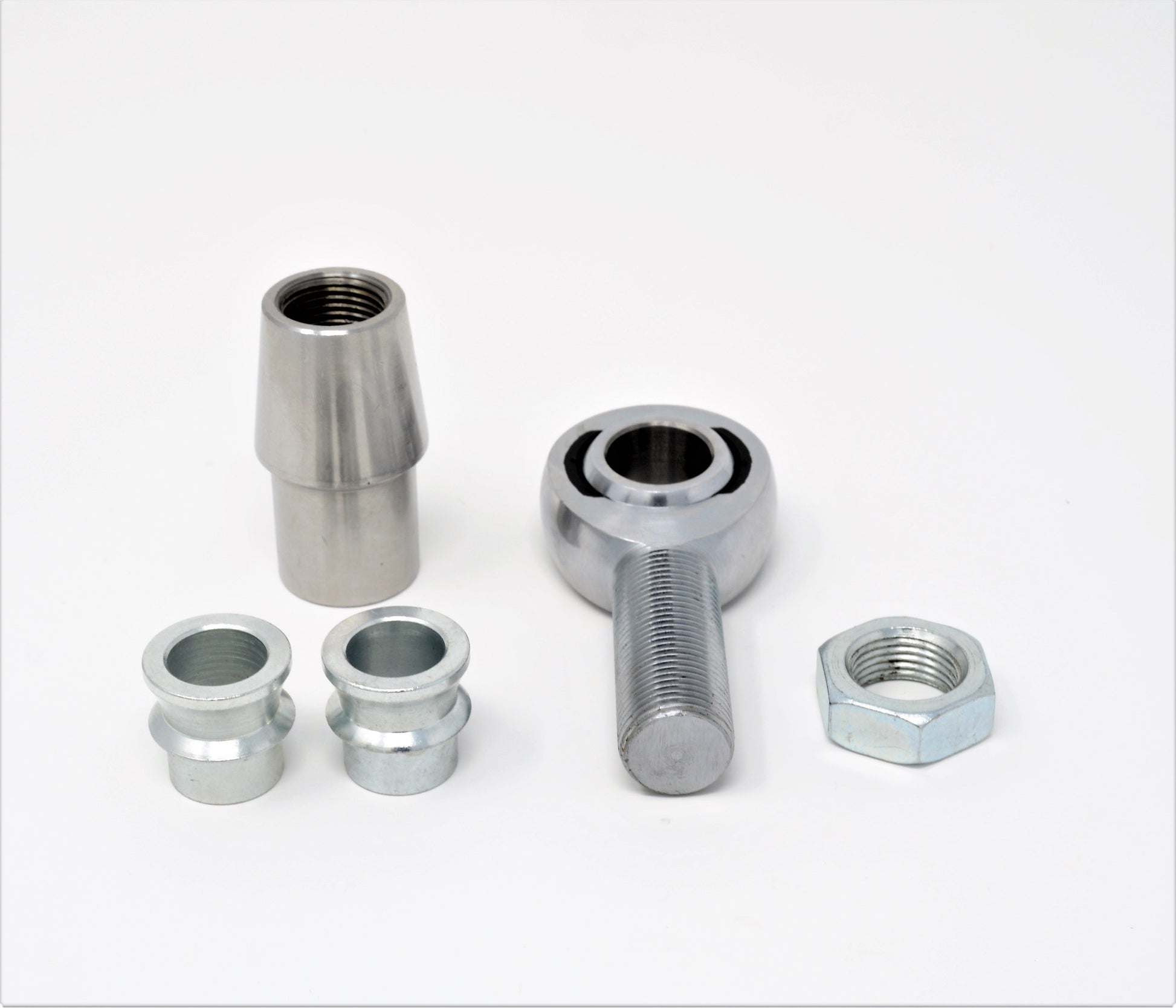

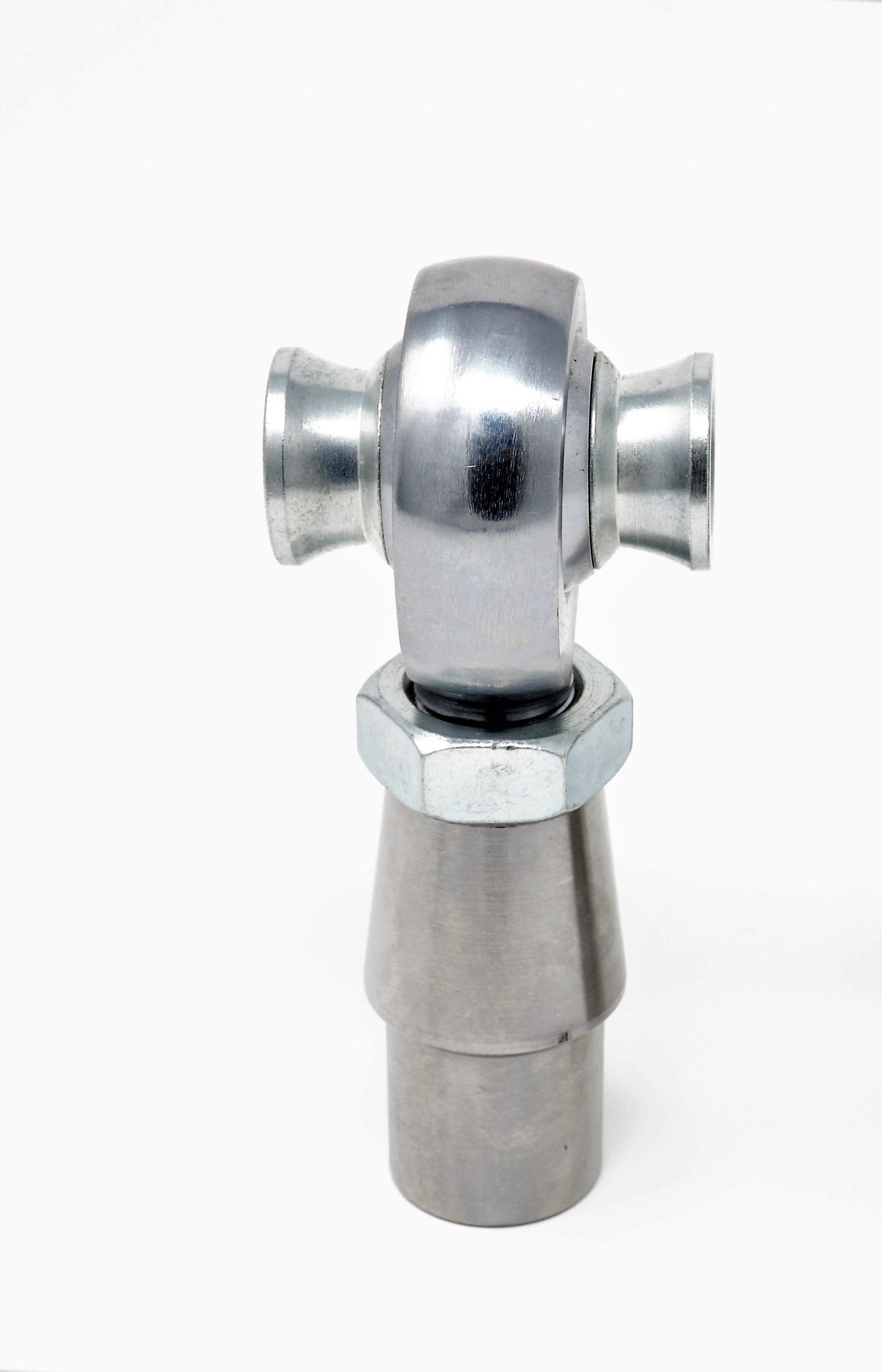

  • Includes 1-left hand thread Heim set. Spacers Jam nut and tube adapters included.

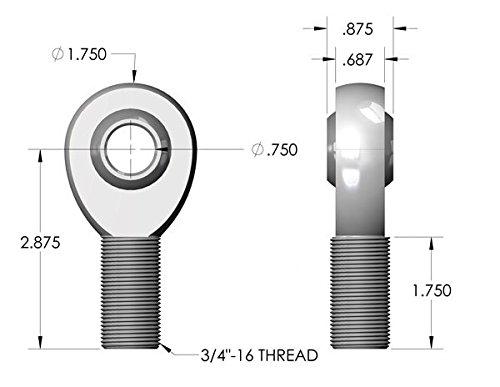

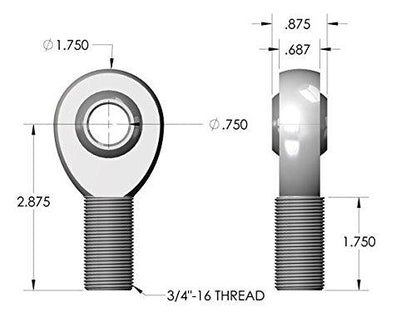

  • 3/4” 16tpi Thread

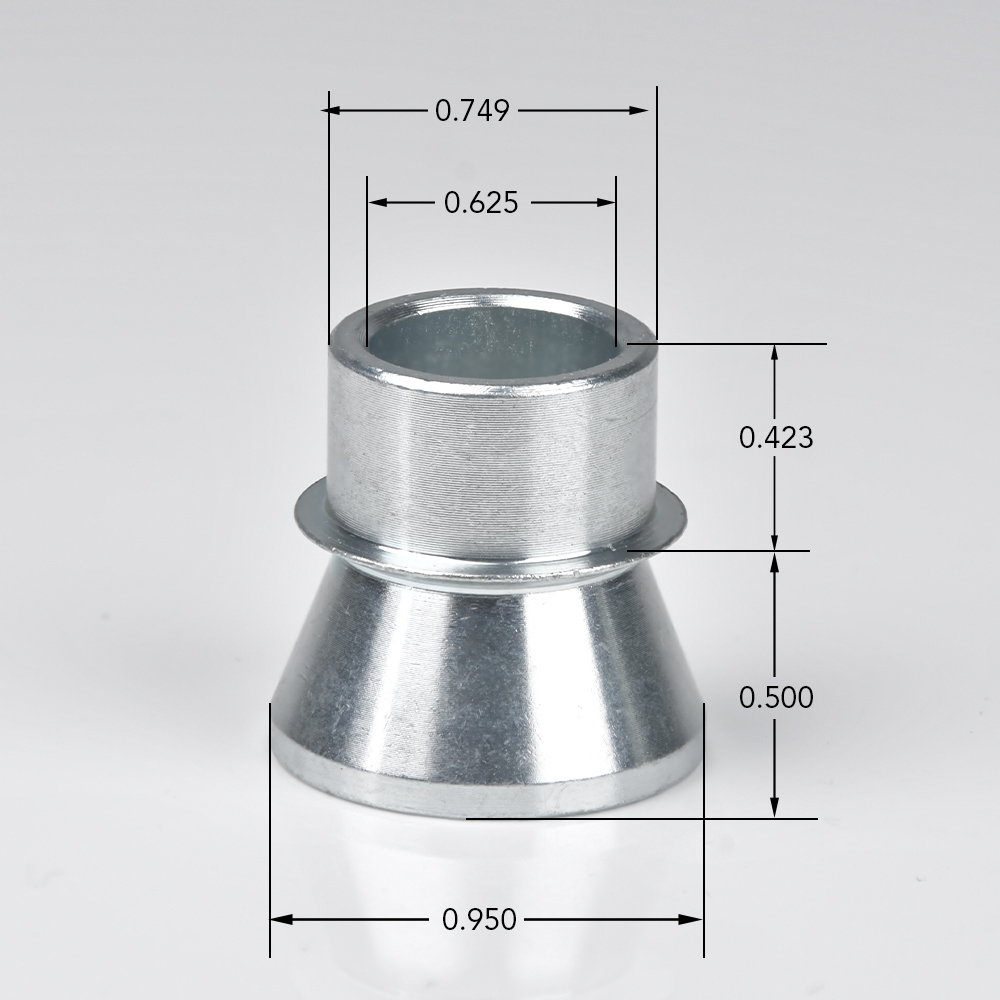

  • Misalignment spacers fit 5/8" standard bolts (Grade 8 or better recommended)

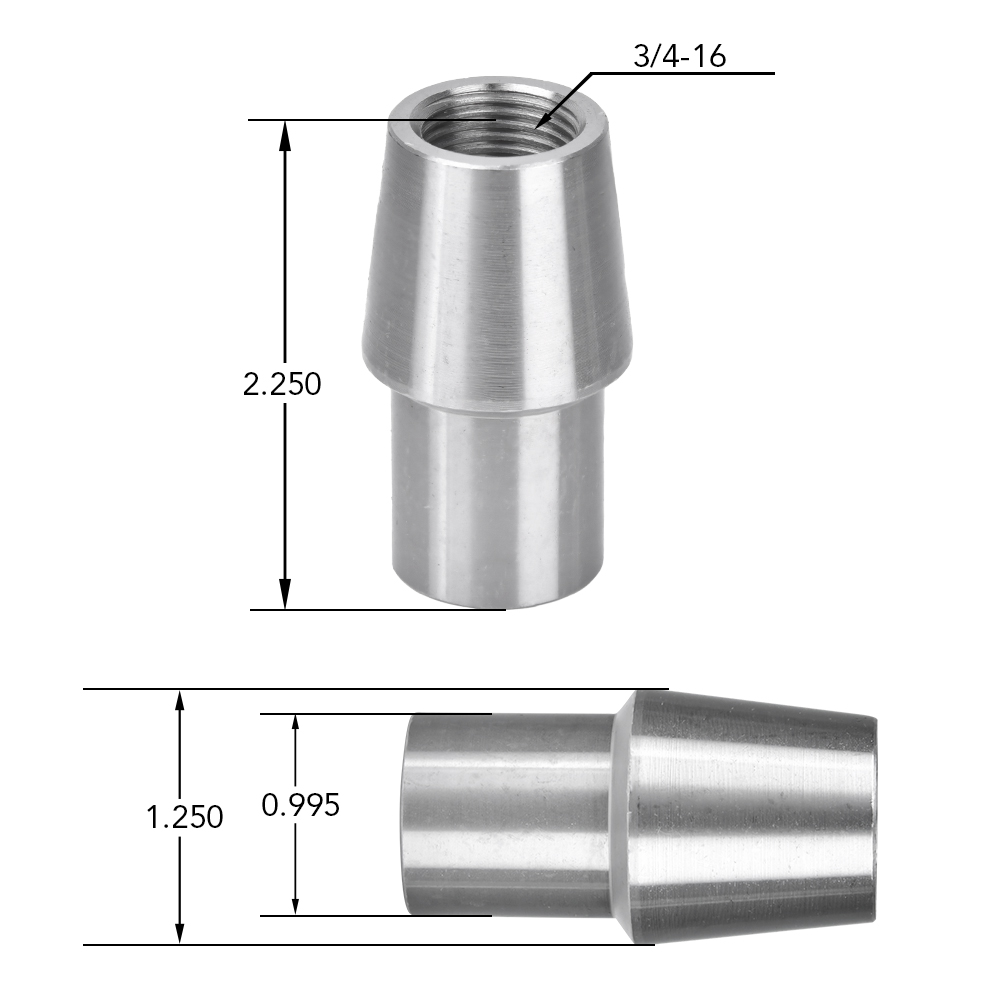

  • Tube adapters fit 1.00" ID tube (inside diameter)
  • 1-piece design Heat Treated steel
  • Never needs grease
  • 28,000 Pound static load rating
  • Mounting width is 1-7/8"

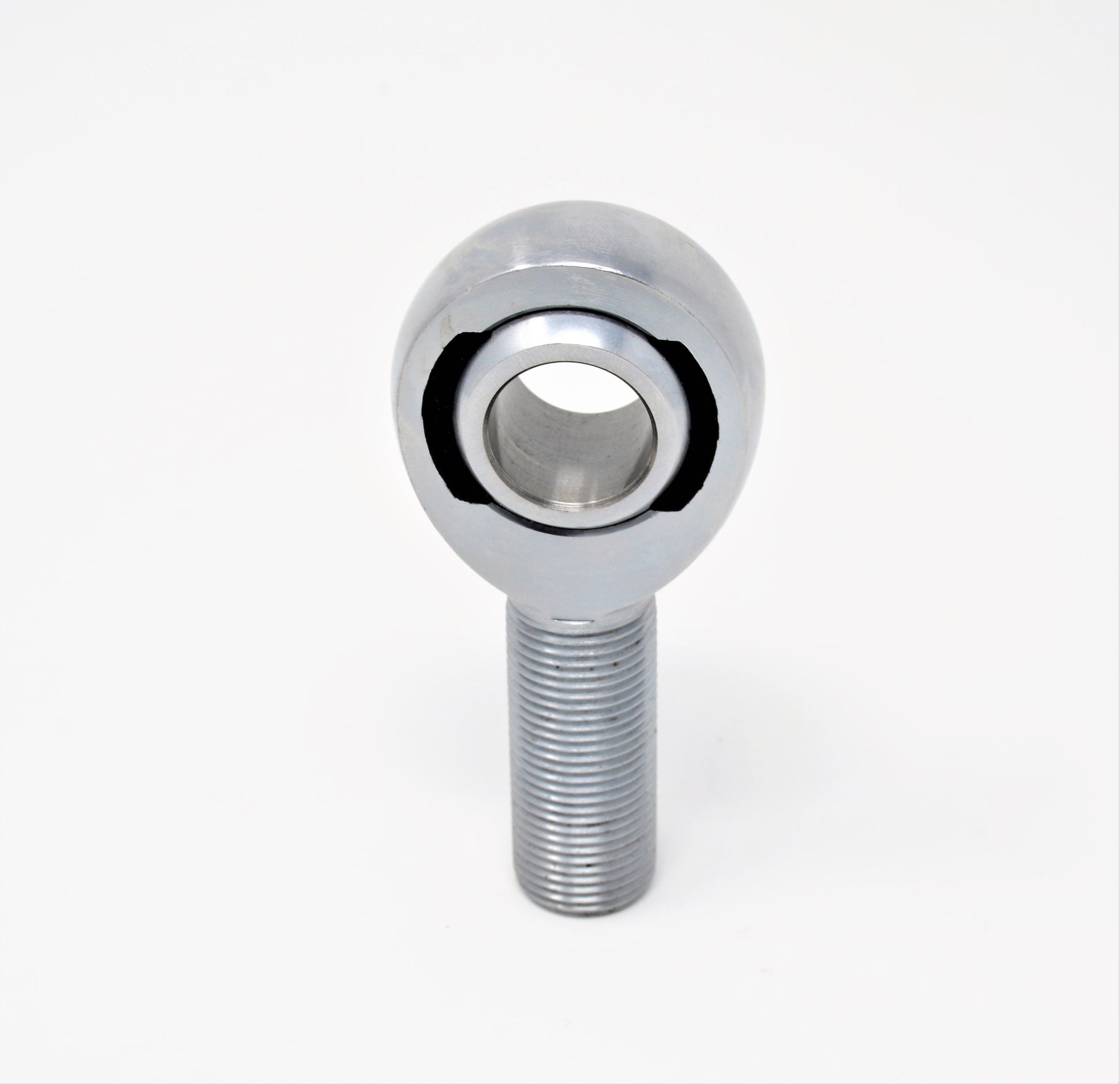

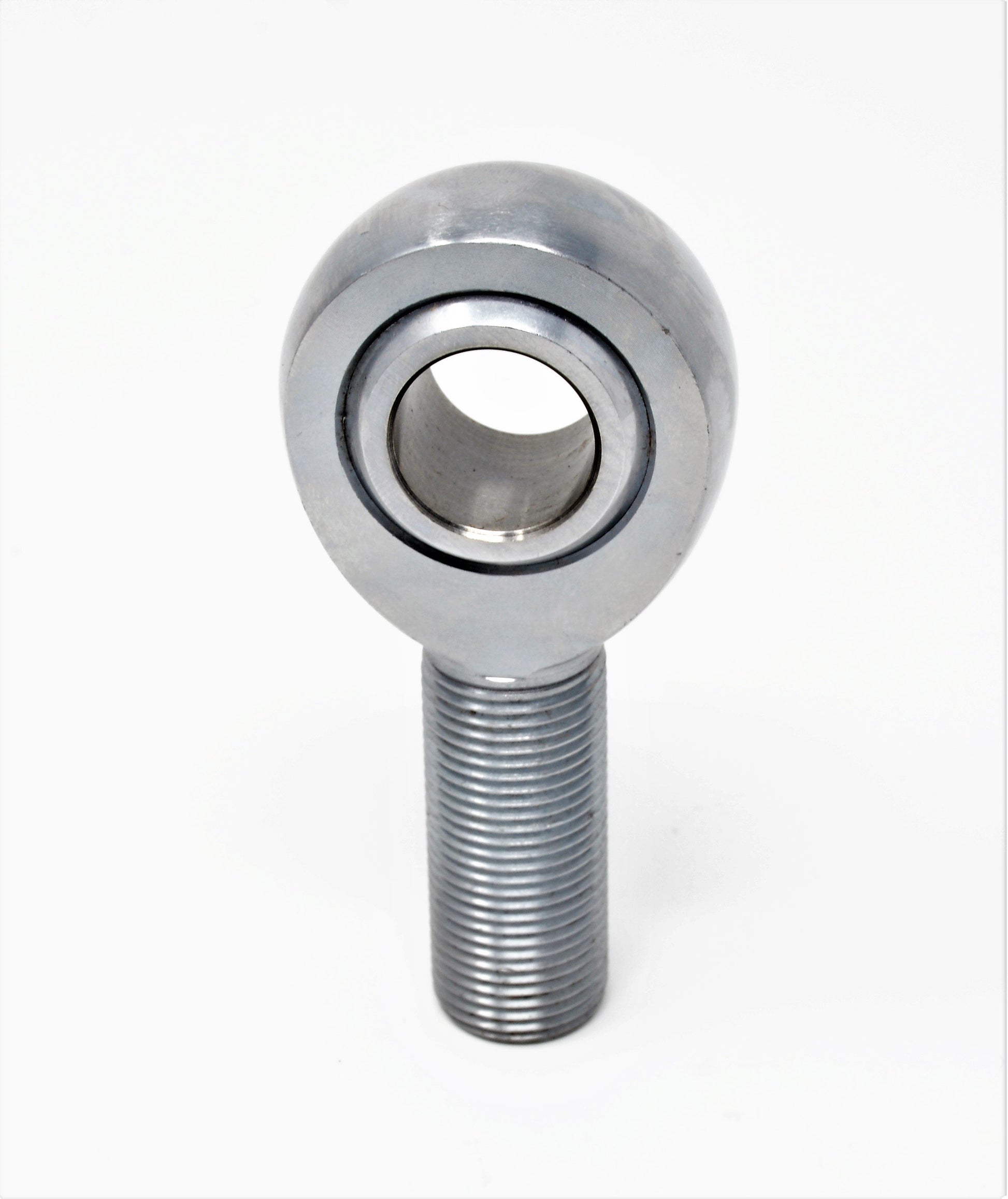

They are heat-treated and hard chrome plated to give you a better finish for longer.
The race is Teflon impregnated nylon for superior durability.
These rod ends have a 3/4” Shaft with 16tpi.
The 3/4” bore is the strongest way to make this heim.

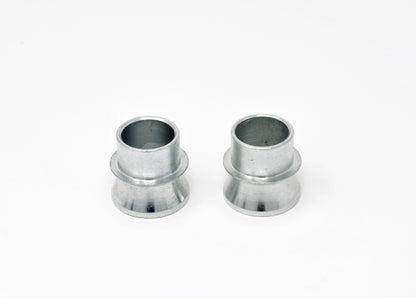

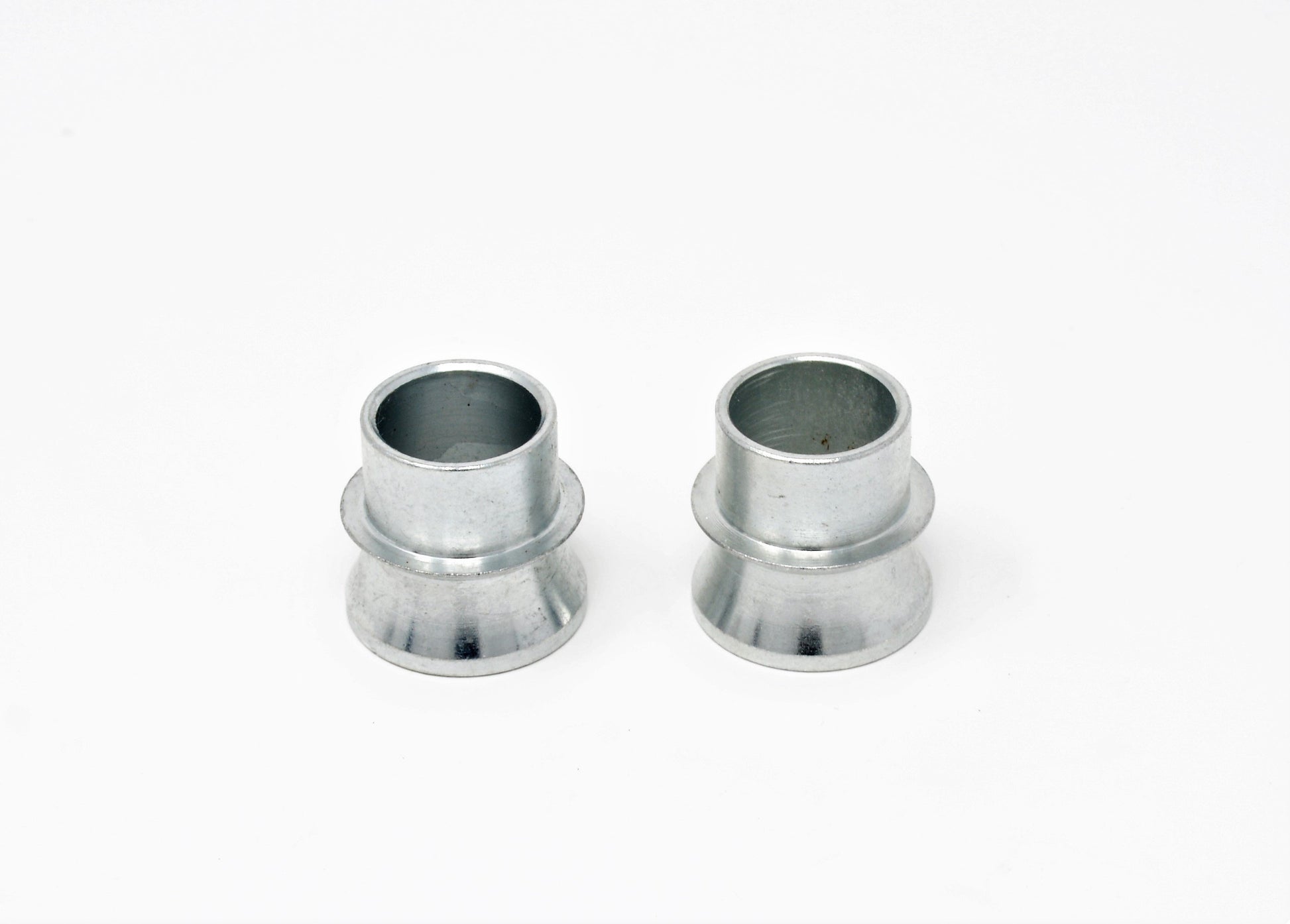

The included zinc-coated misalignment spacers reduce that down to a 5/8” standard bolt.

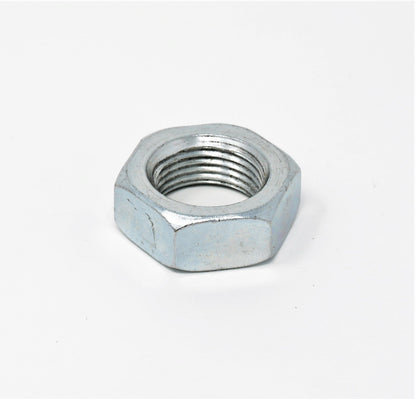

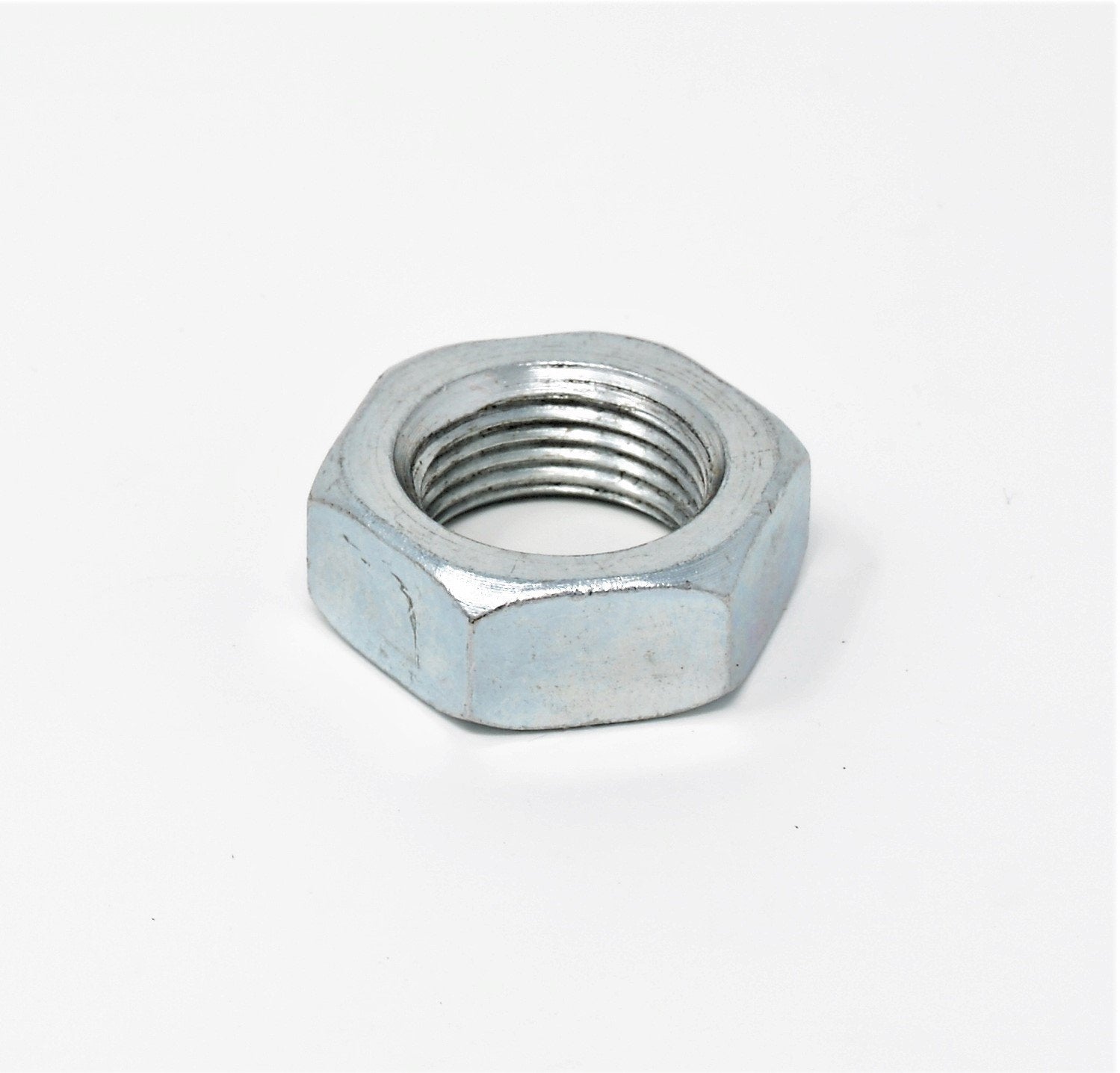

The included jam nut is zinc coated for superior durability.

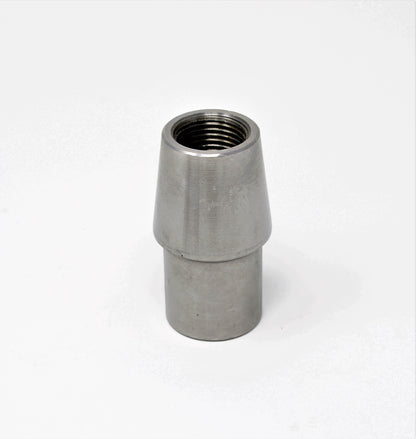

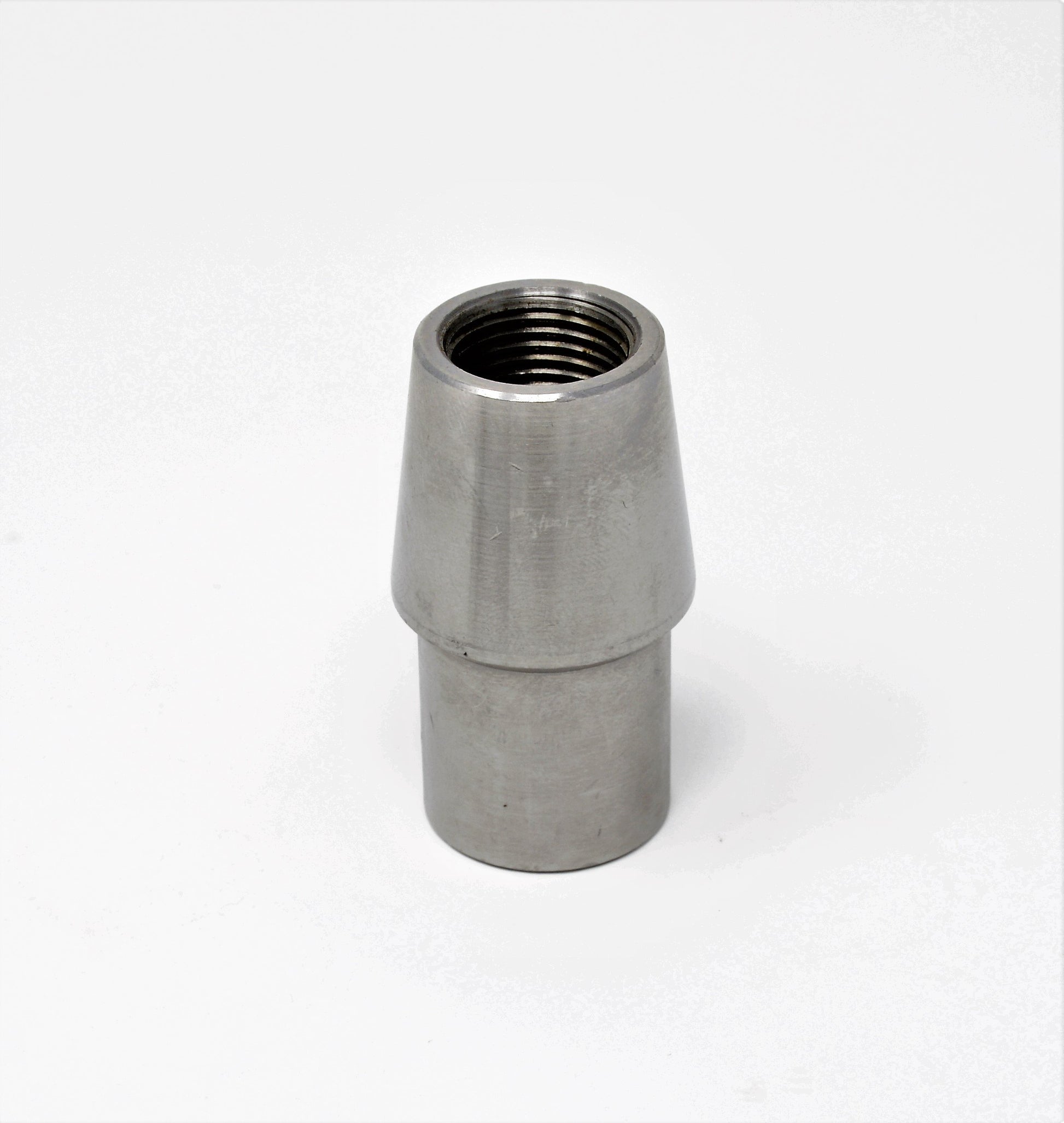

Also included is the 1” ID tube adapter.
They will fit snugly in any 1” ID tube.

These HeimJoints.net joints area great fit for your rock crawler Jeep Toyota Buggy or any project you may be building.
Common uses are steering joints and link joints on hot rods drag racing 4-link lowrider or custom builds.
