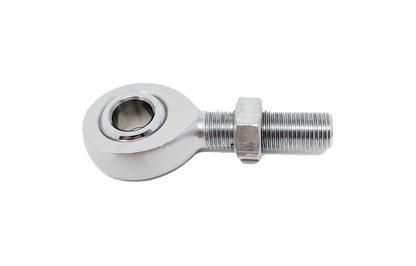

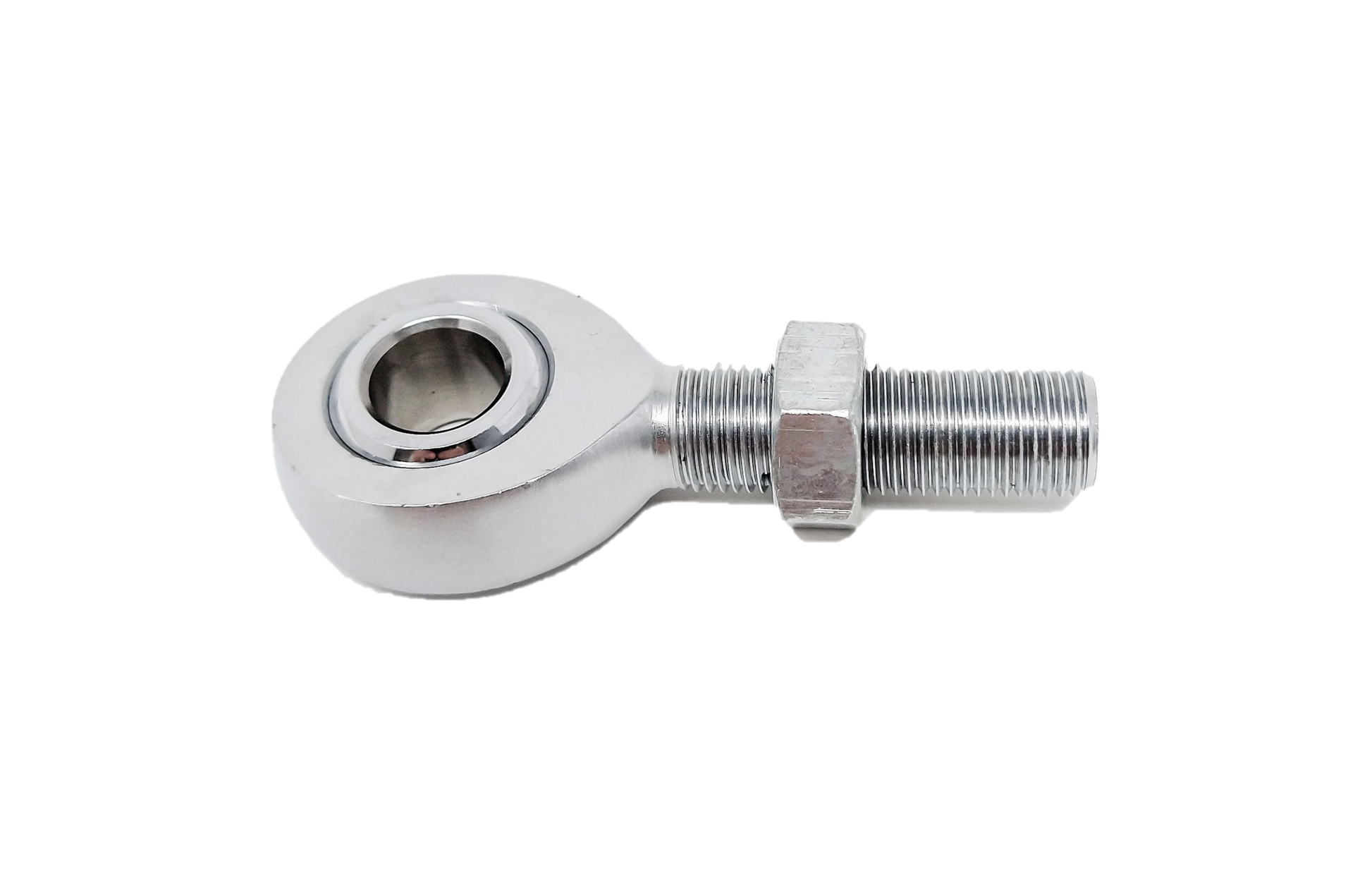

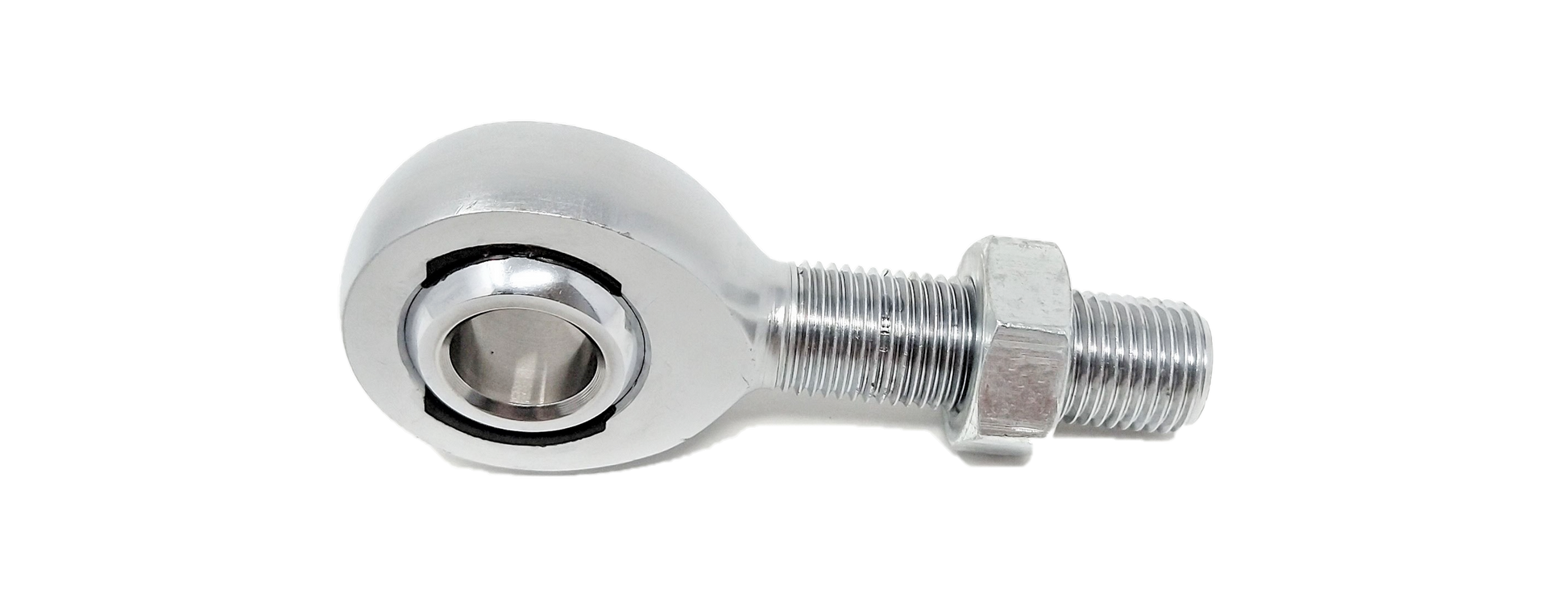

.500" 1/2" Rod End Heim Joint Right and Left (2 joints)

.500" 1/2" Rod End Heim Joint Right and Left (2 joints)


Regular price $19.00 USD
Regular price Sale price $19.00 USD
Sale Sold out
Shipping calculated at checkout.
Add tube adapters

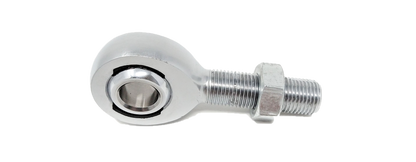

1/2" .500" Rod End Heim Joint

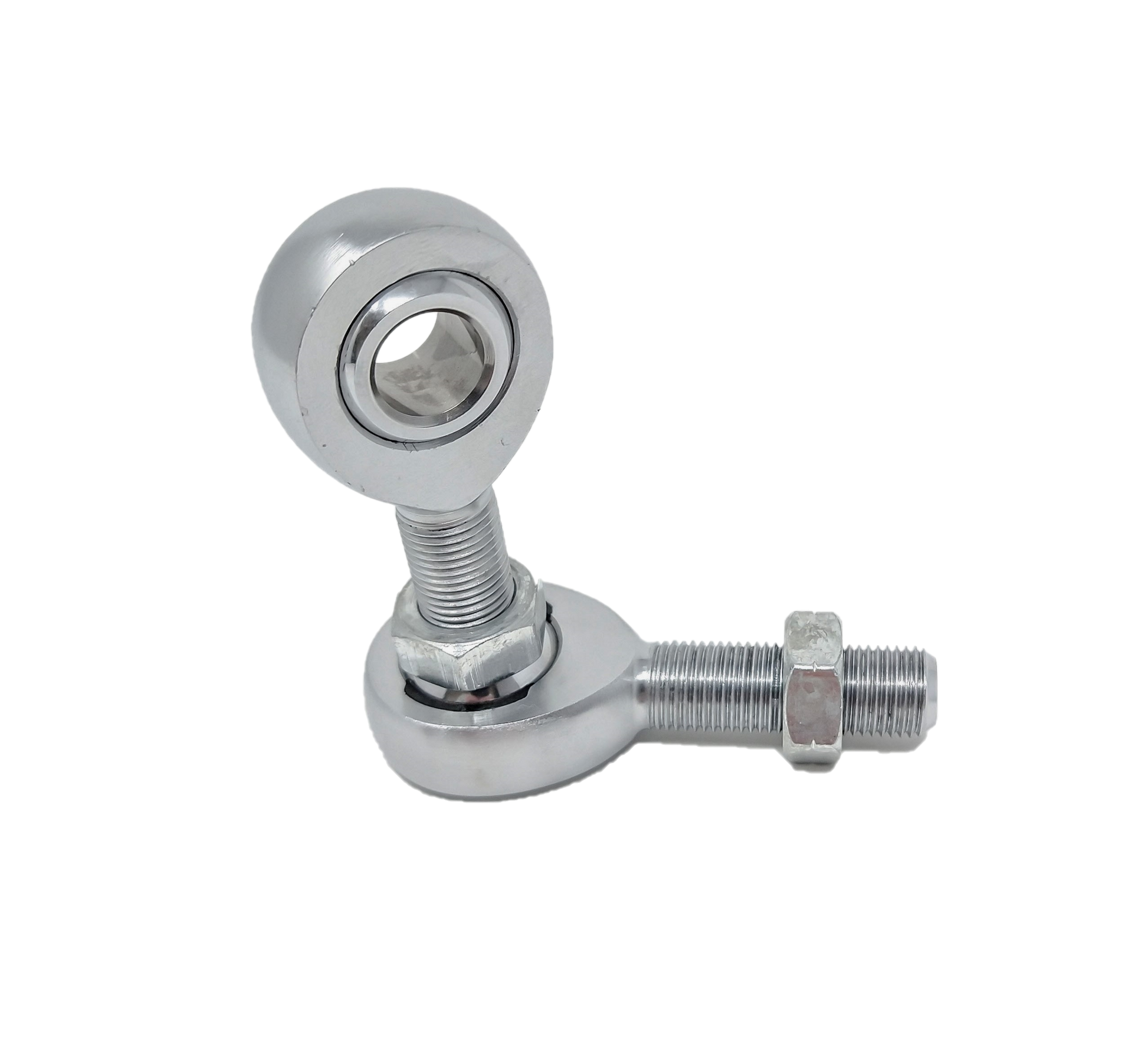

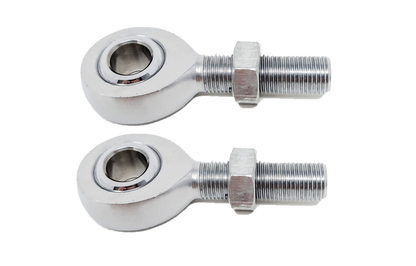

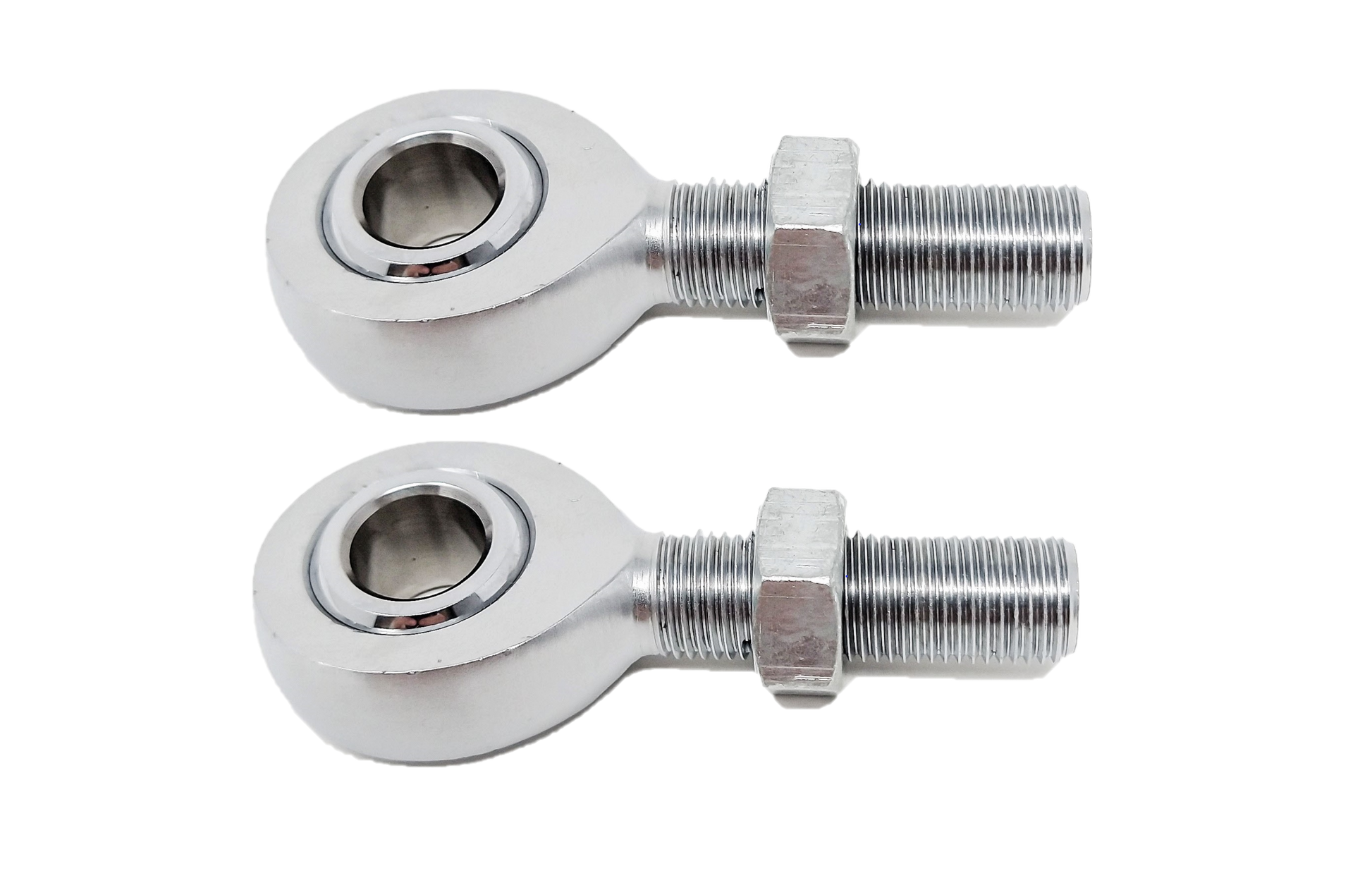

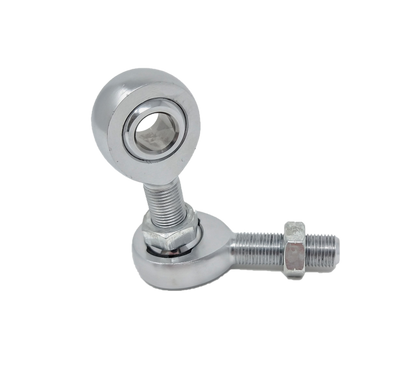

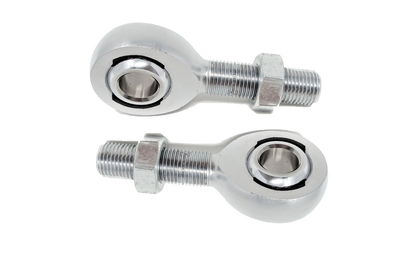

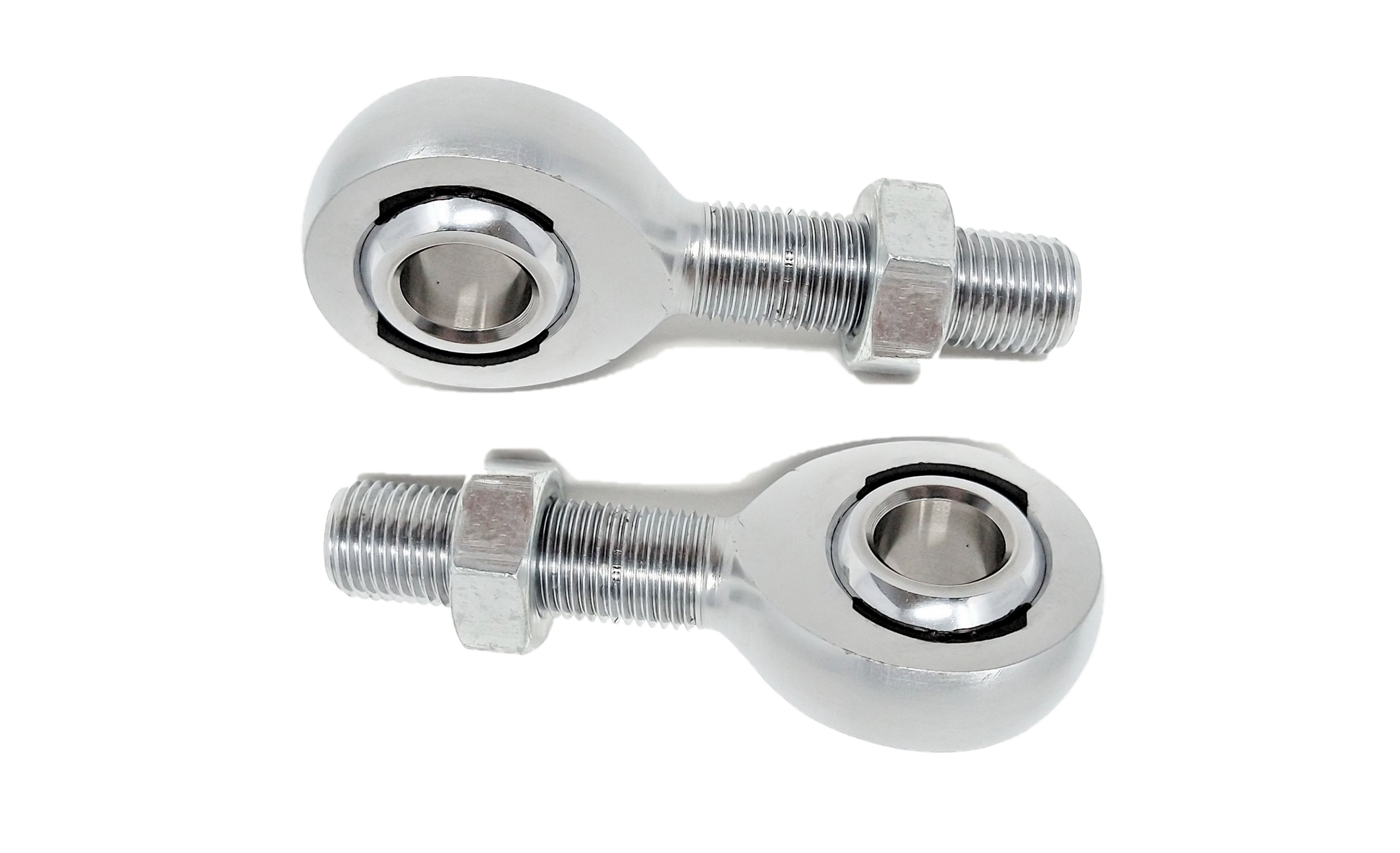

  • Includes 1-left hand thread and 1-Right Hand thread Heim set. Spacer Jam nut included.
  • 1/2” 20tpi Thread

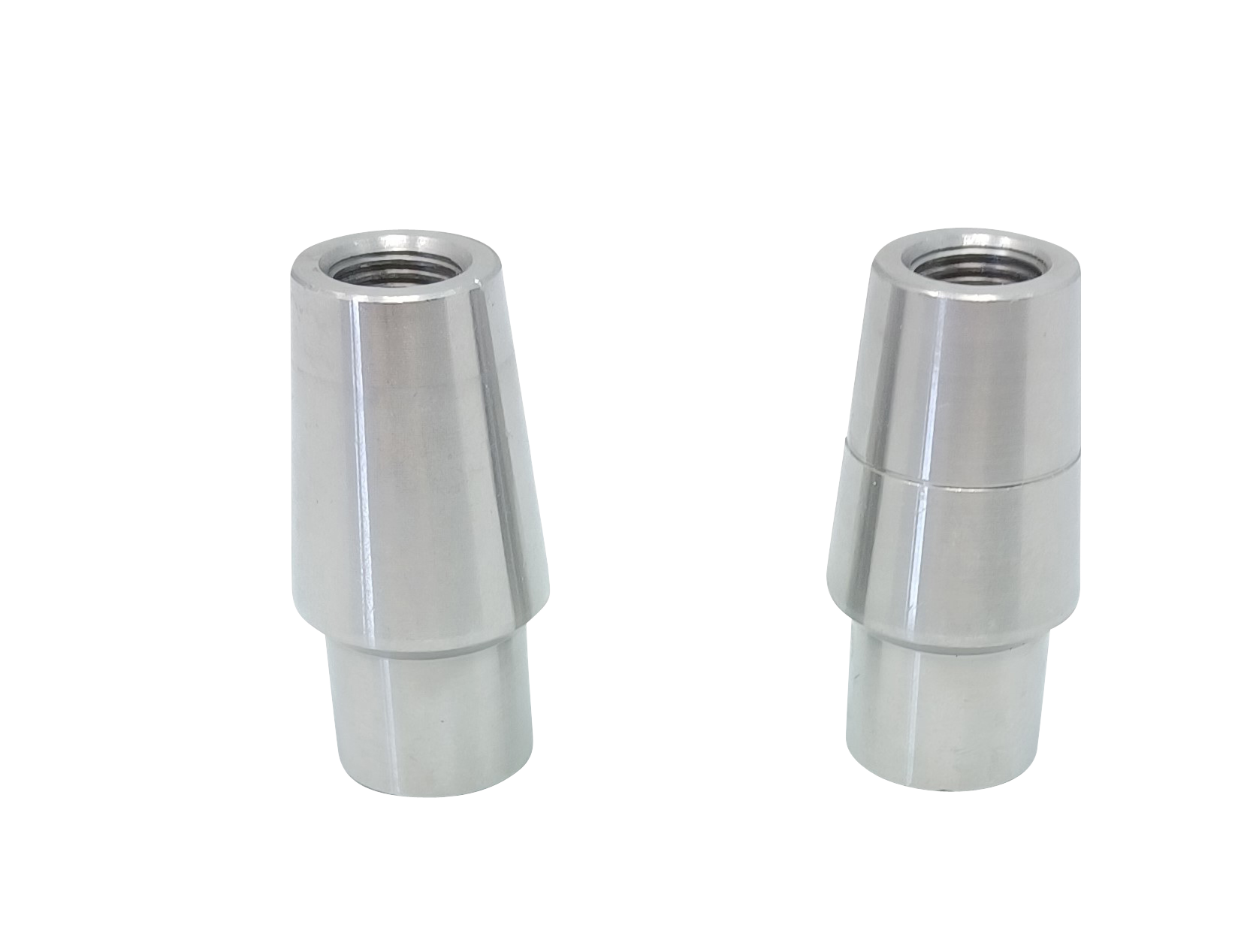

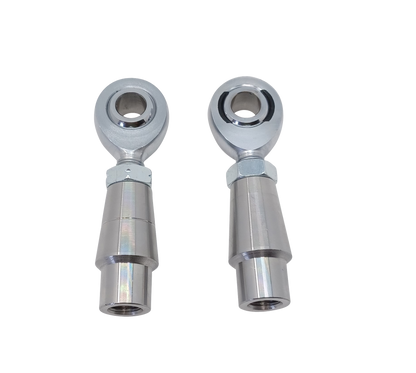

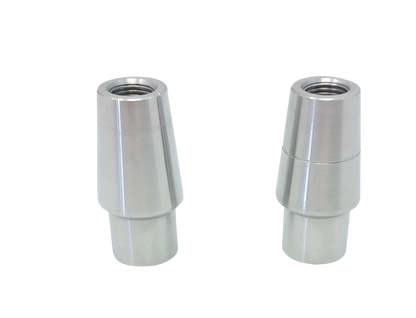

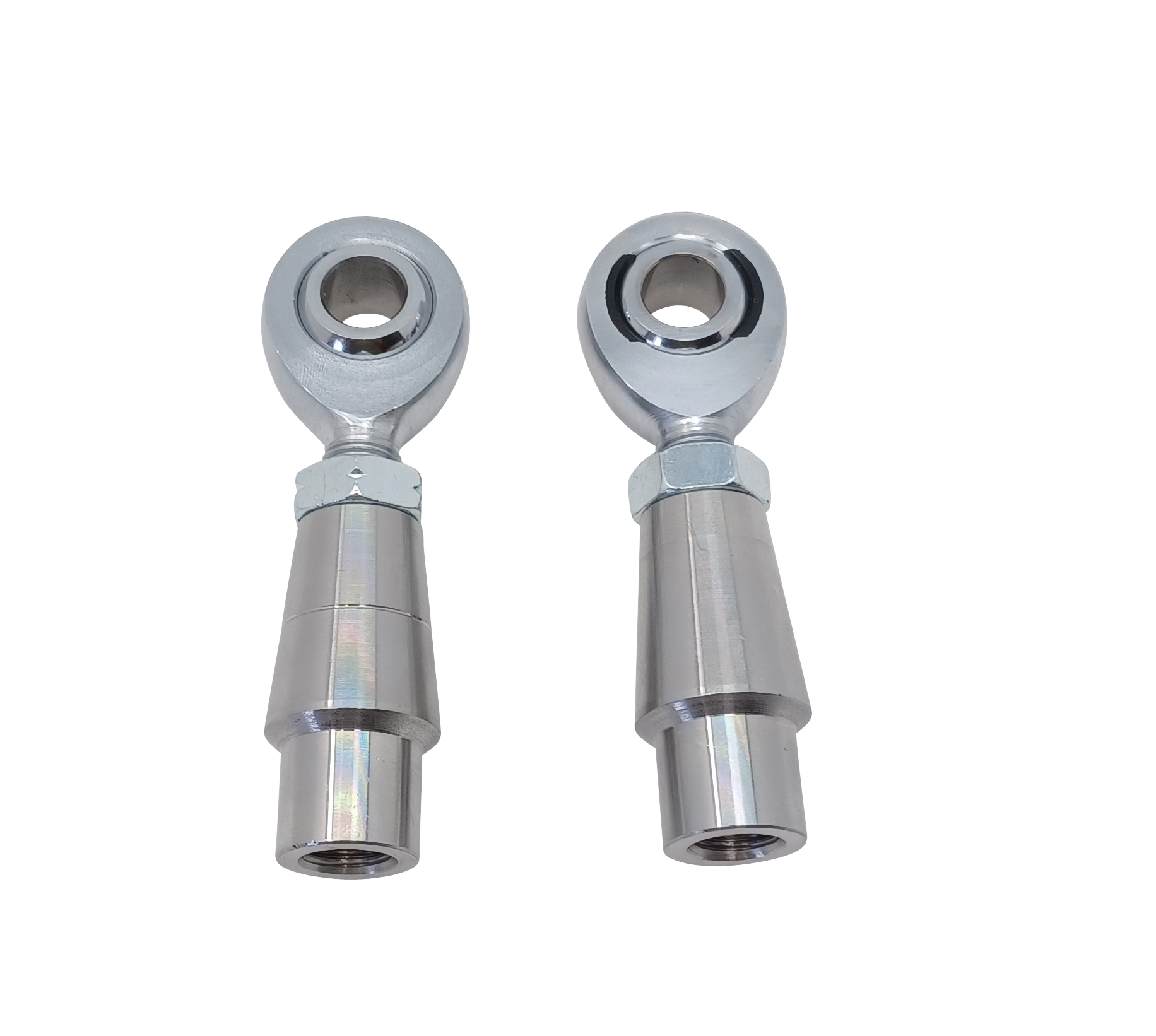

  • Optional tube adapter fits tube with an ID of .800"
  • 1/2" bolt hole (Grade 8 or better recommended)
  • 1-piece design Heat Treated steel
  • Never needs grease
  • 16,000 Pound static load rating
  • Male thread
  • Thread length 1.5"

These XM heim joints are great quality. They are heat treated and hard chrome plated to give you a better finish for longer.
The race is teflon impregnated nylon for superior durability.
These rod ends have a 1/2"” Shaft with 20tpi.
The 1/2” bore is the strongest way to make this heim.

The included jam nut is zinc coated for superior durability.

These joints area great fit for your rock crawler Jeep Toyota Buggy or any project you may be building.
Common uses are steering joints and link joints on hot rods drag racing 4-link lowrider or custom builds.
