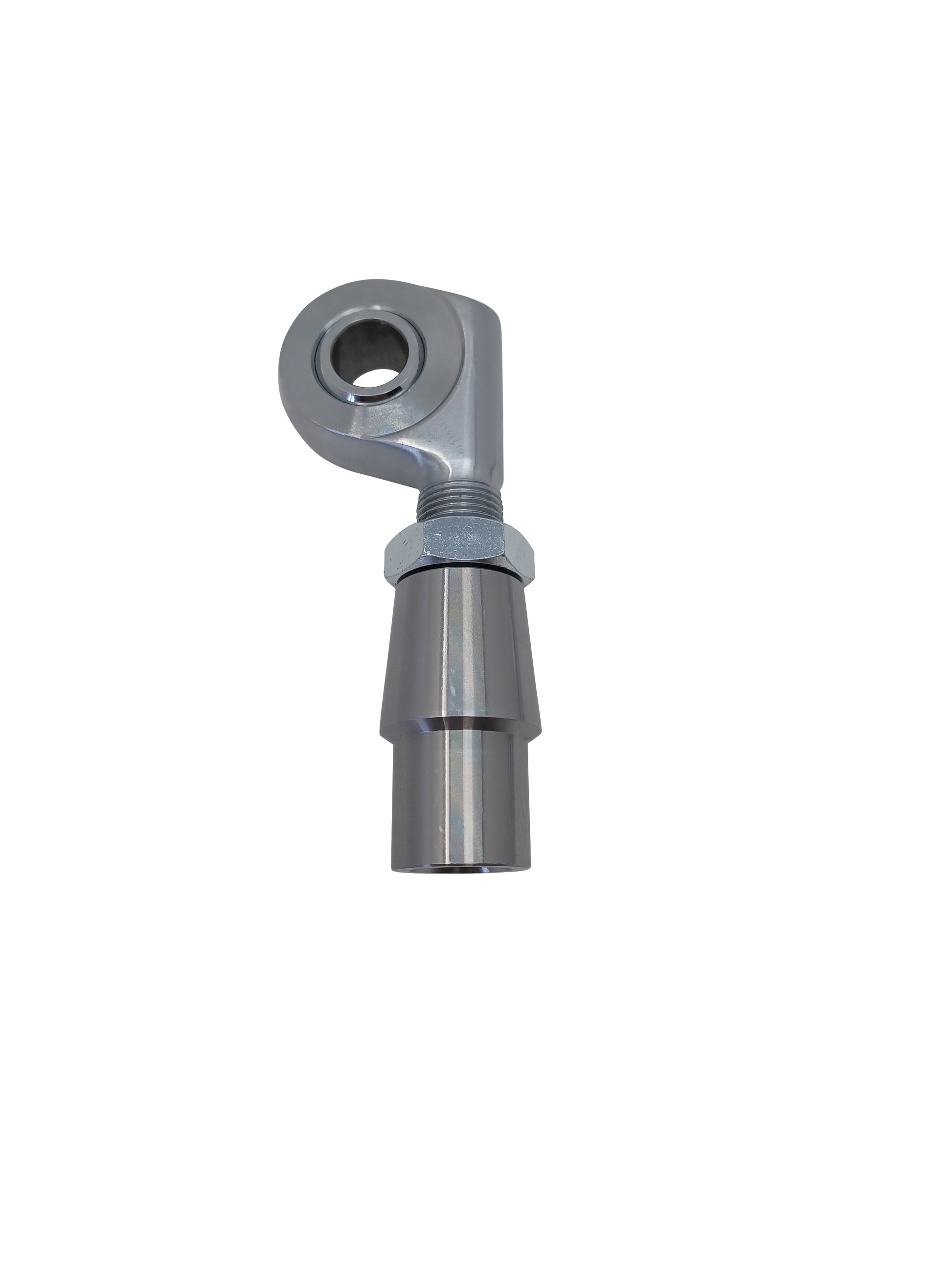

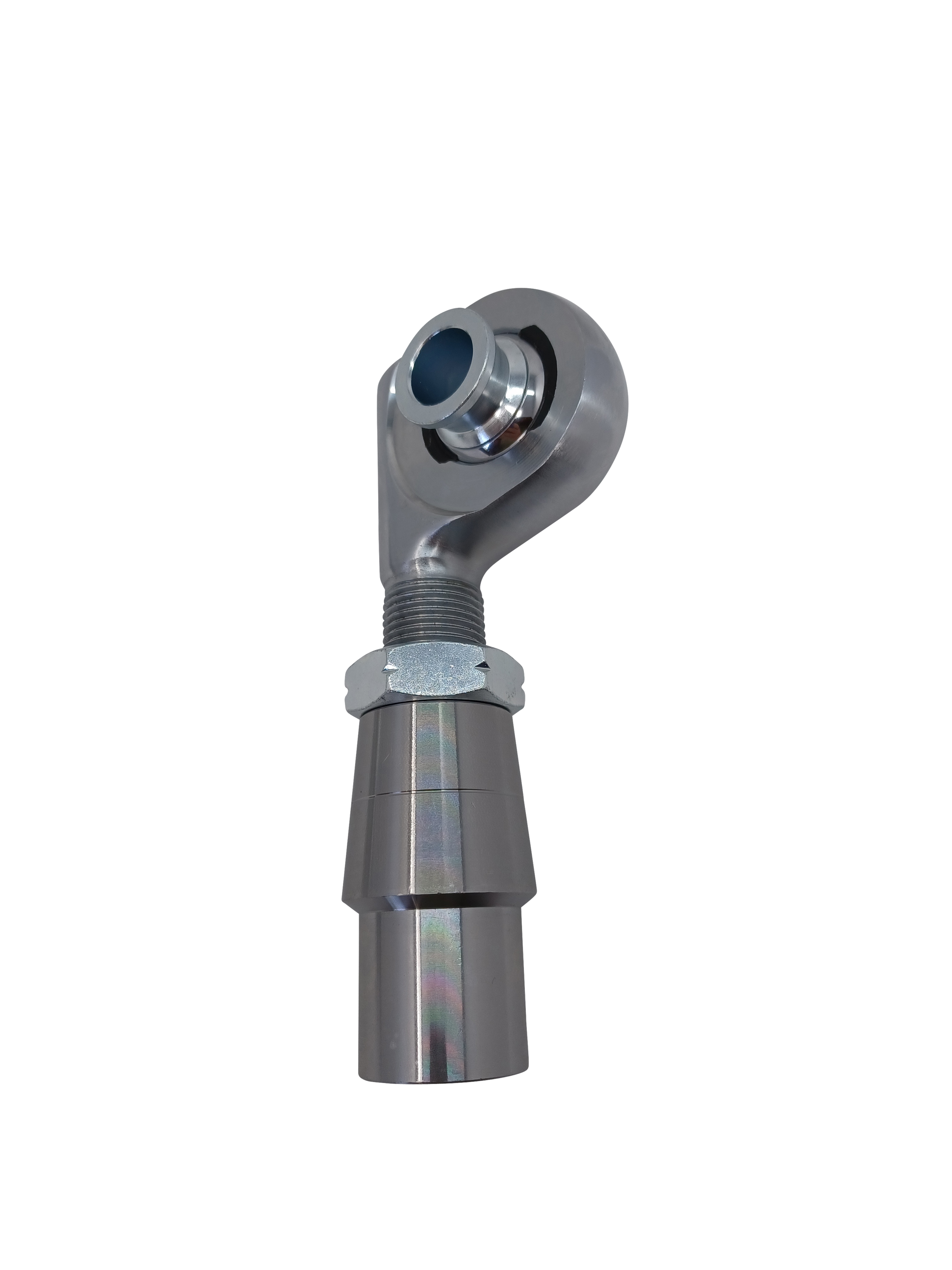

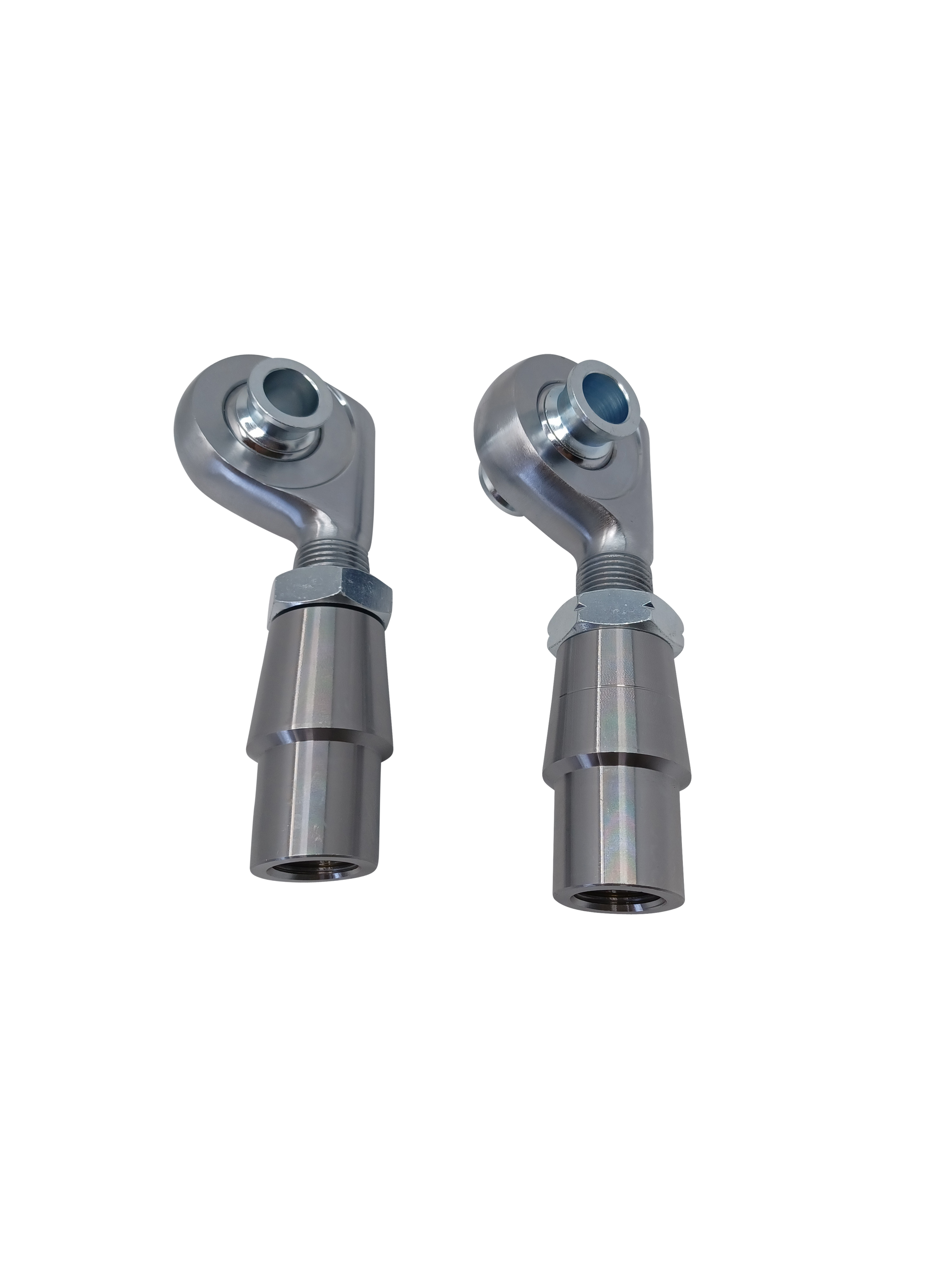

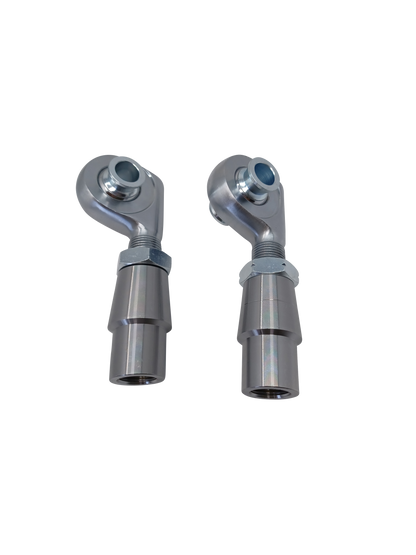

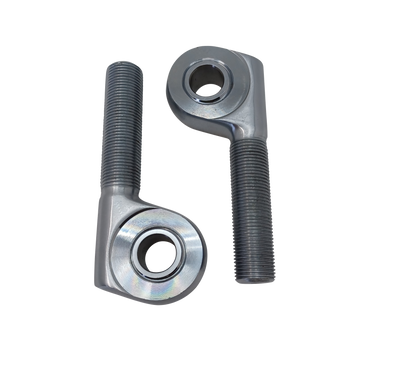

Offset 7/8" shank 3'4" head heim joints

Offset 7/8" shank 3'4" head heim joints


Regular price $75.00 USD
Regular price Sale price $75.00 USD
Sale Sold out
Shipping calculated at checkout.

Benefits of your new Offset Heims

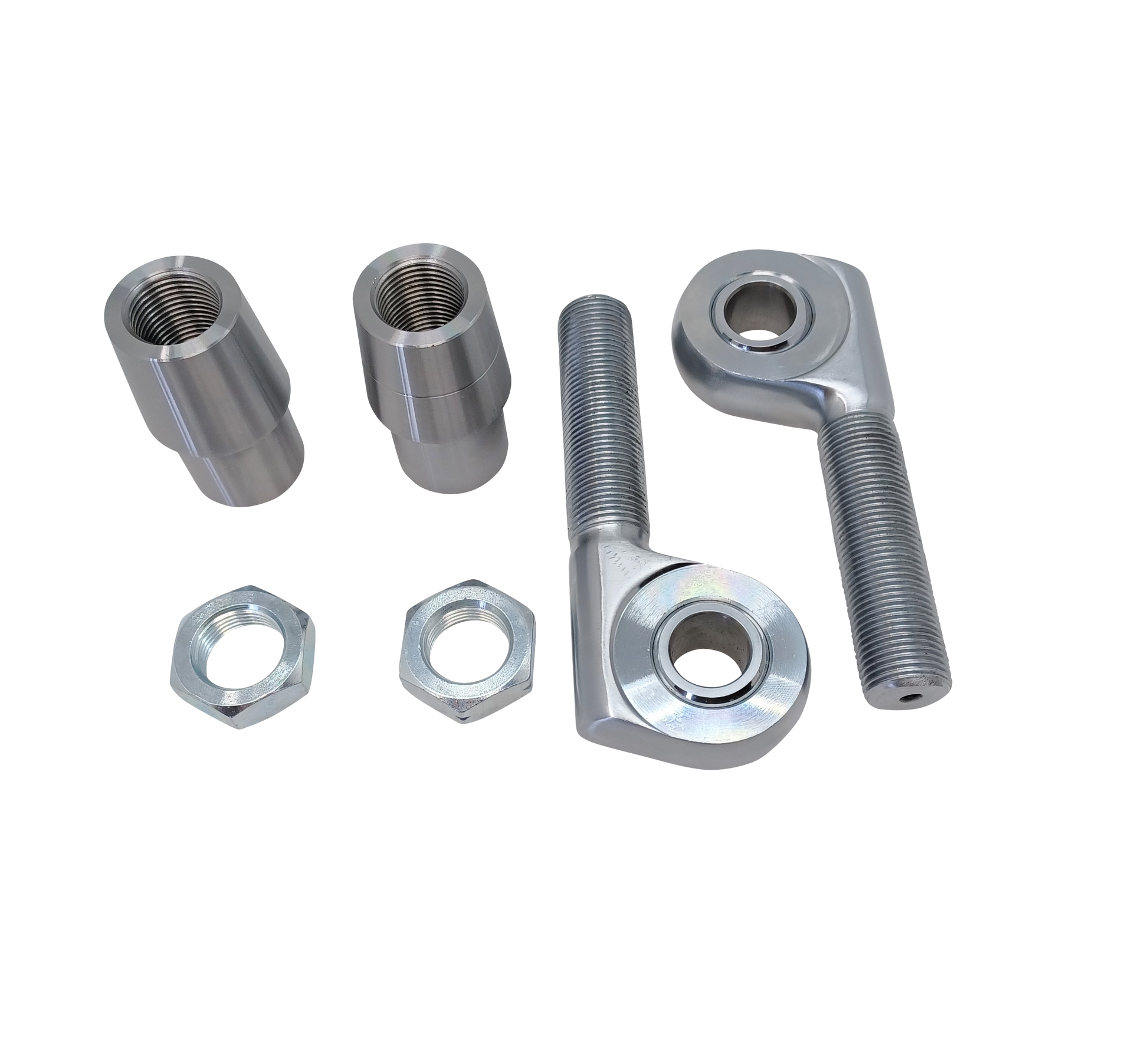

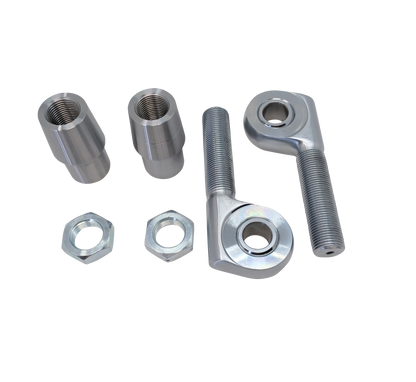

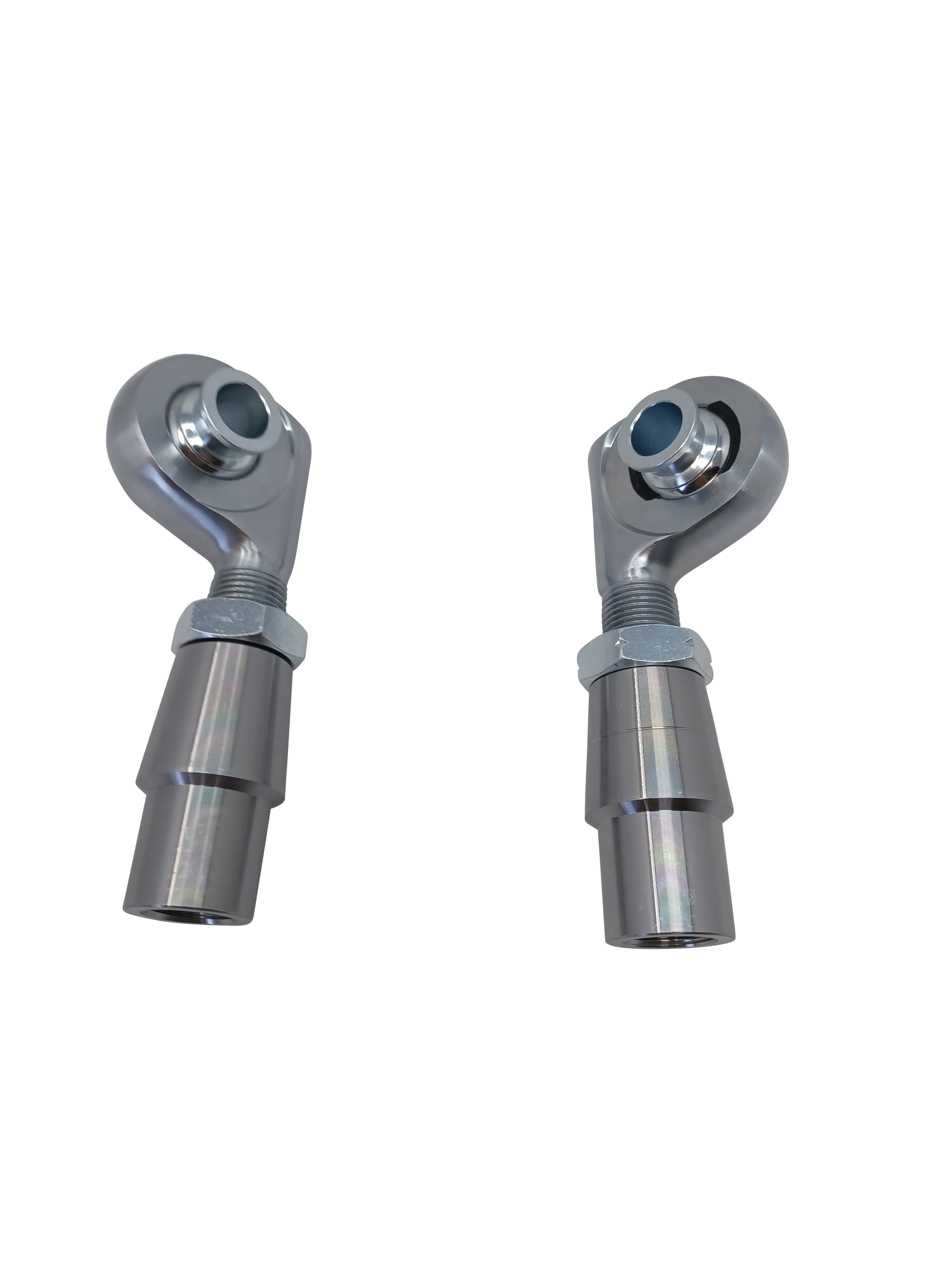

  • Price includes left and right threaded heims, Jam nuts, tube adapters, and misalignment spacers
  • 7/8" 14tpi shaft size

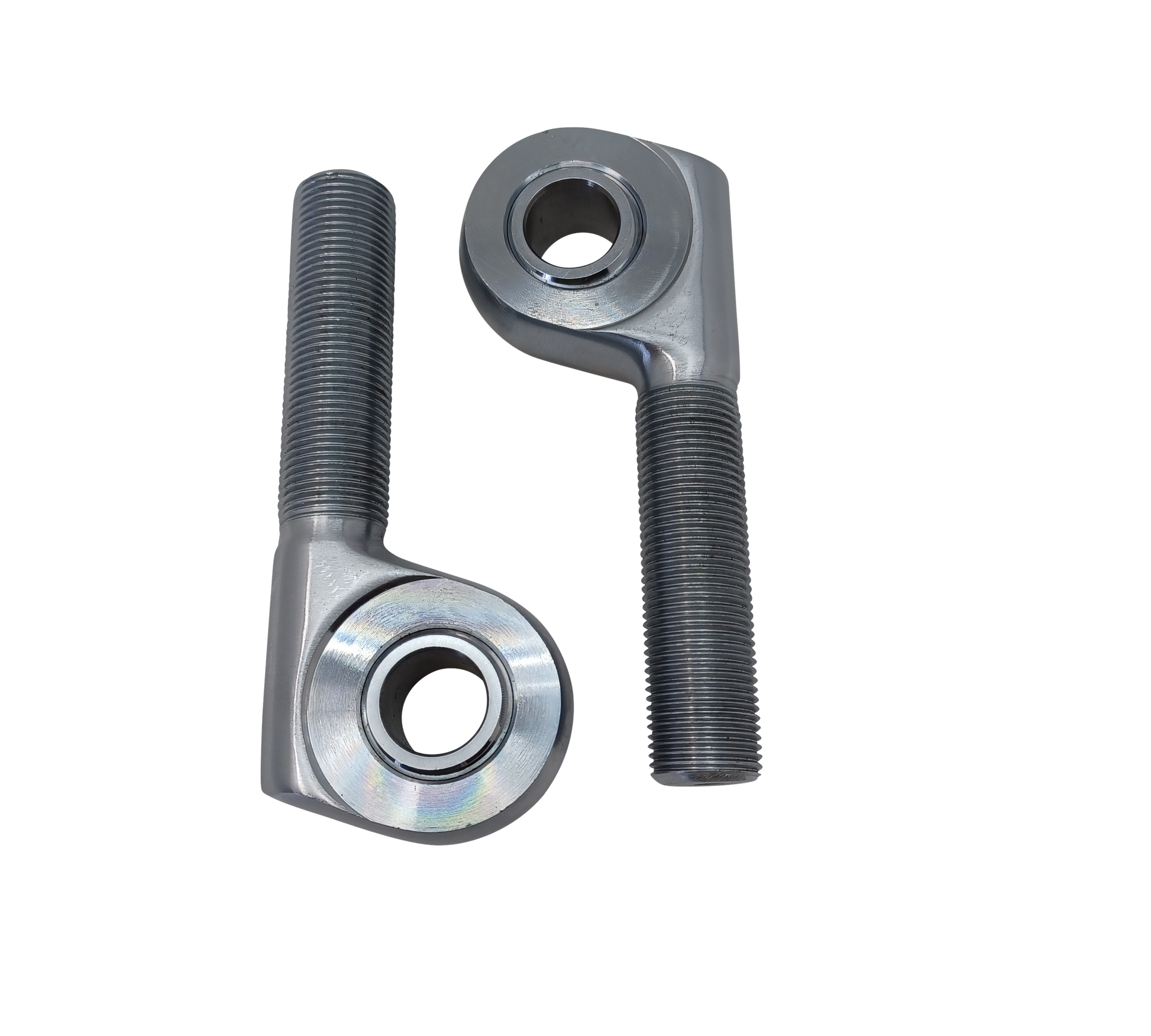

  • About 1" offset head
  • 3/4" hole size in the heim

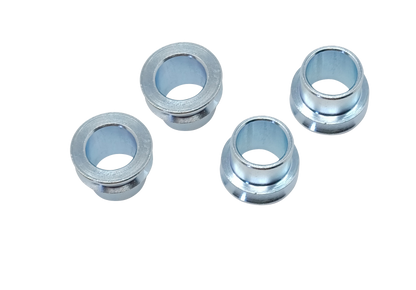

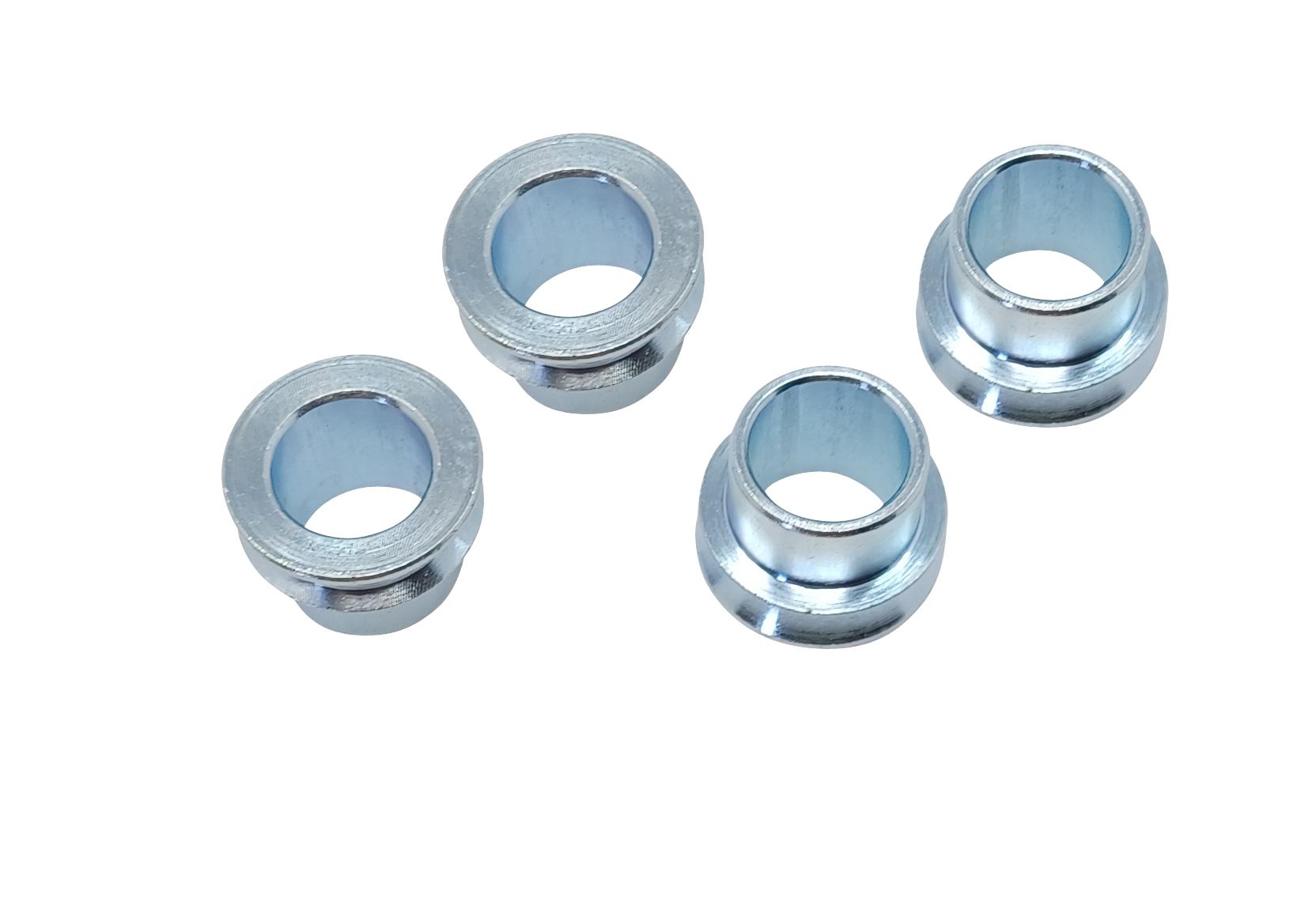

  • Misalignment spacers reduce the bolt to 5/8"
  • Tube adapters fit 1.25" ID tube
  • 4130 Forged Chromoly steel construction, Heat treated, Hard Chrome plated
  • Injection molded Nylon and PTFE race
  • 52100 Bearing steel Ball, heat treated and hard chrome plated
  • Mild steel tube adapters for easy welding
  • Steel misalignment spacers
  • 3" thread length
  • 7/8" mounting width without spacers, 1 7/8" mounting width with spacers

With a 7/8" shank and a 3/4" head, these heim joints are engineered to deliver superior strength and stability. The offset design allows for increased clearance and versatility, making them ideal for tight spaces or custom setups where a straight joint won't fit.

Crafted from premium materials, these heim joints are built to withstand heavy loads, intense vibrations, and extreme conditions. The precision-machined threads ensure a secure and tight fit, providing dependable operation and reducing the risk of loosening or failure.

Upgrade your steering systems with the Offset 7/8" Shank 3/4" Head Heim Joints and experience enhanced precision, durability, and versatility. Don't compromise on quality—choose these heim joints for your next project and enjoy smooth articulation and peace of mind.
