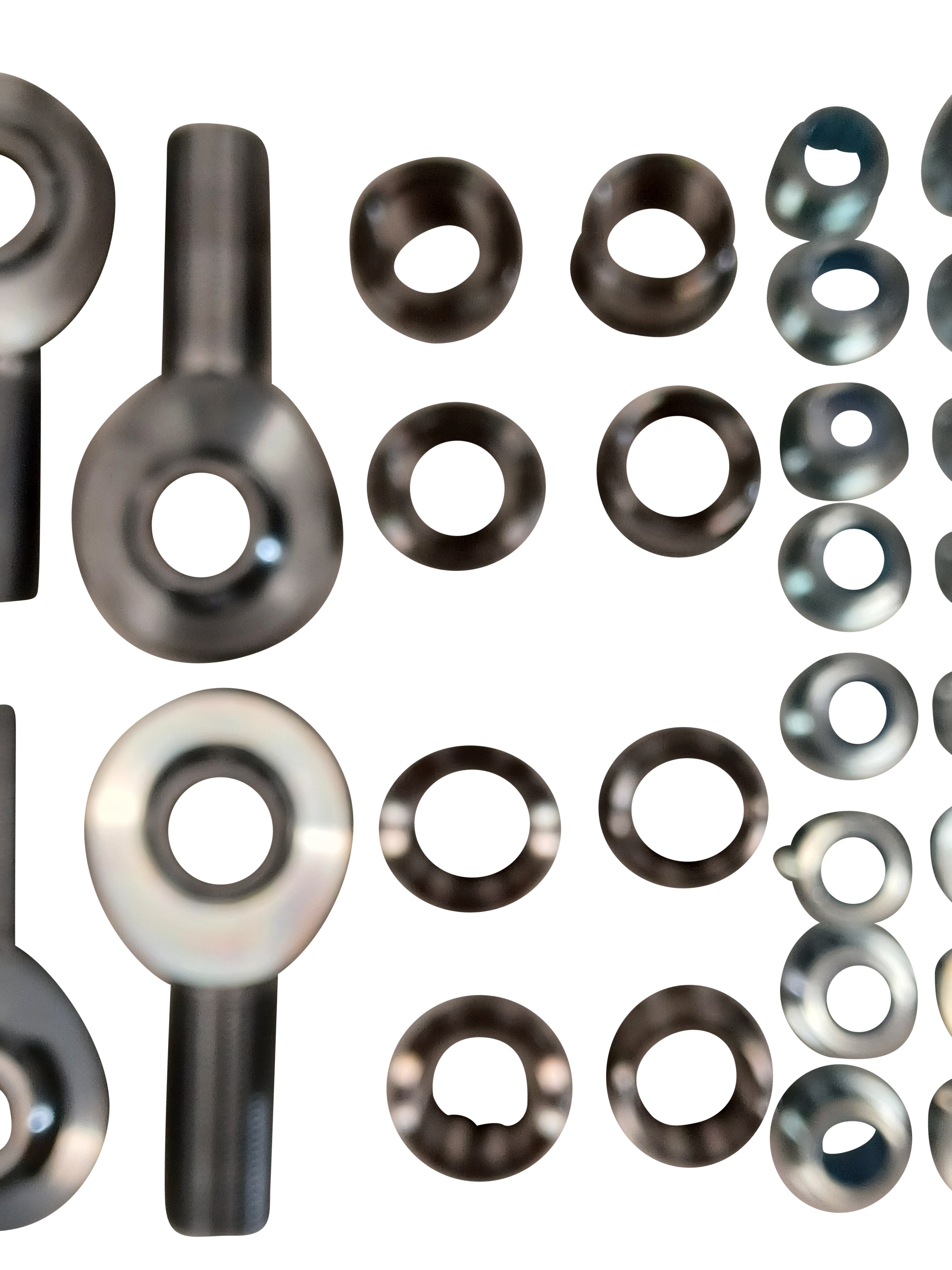

A Heim joint, also known as a spherical rod end, is a pivot joint that allows for a limited amount of misalignment between the two rods or linkages that it connects. It is made up of a spherical bearing that is captured in a housing.
The bearing is made up of a ball and socket, and the housing has two threaded holes that the rods or linkages can be inserted into. Heim joints are often used in applications where there is a need for precision and articulation. They are commonly used in off-road vehicles, race cars, and other vehicles that are subjected to extreme conditions.
Advantages of Heim Joints There are several advantages to using heim joints: Precision: Heim joints are very precise, which means that they can transmit more force and torque without binding.
Articulation: Heim joints allow for a limited amount of misalignment, which is important in applications where the linkages are subjected to a lot of movement.
Durability: Heim joints are very durable and can withstand a lot of abuse.
Adjustability: Heim joints are adjustable, which allows you to fine-tune the alignment of the linkages.
Disadvantages of Heim Joints There are a few disadvantages to using heim joints:
Cost: Heim joints are more expensive than other types of pivot joints.
Wear: Heim joints can wear out over time, especially if they are subjected to a lot of abuse.
How to Choose a Heim Joint
When choosing a heim joint, there are a few factors you need to consider: The load rating: The load rating is the maximum amount of weight or force that the heim joint can support.
The size: The size of the heim joint is determined by the diameter of the rods or linkages that it will be connecting.
The material: Heim joints are typically made from steel or aluminum. Steel heim joints are more durable, but aluminum heim joints are lighter weight.
The finish: Heim joints are available with a variety of finishes, including zinc, chrome, and black oxide. The finish will affect the appearance of the heim joint and its resistance to corrosion.
How to Install a Heim Joint
Installing a heim joint is a relatively simple process: Clean the rods or linkages that the heim joint will be connecting. Apply a thin layer of lubricant to the threads of the heim joint. Insert the heim joint into the rods or linkages. Secure the heim joint with the nuts or bolts provided.
How to Maintain a Heim Joint To keep your heim joints in good working condition, you need to regularly clean and lubricate them. You can use a mild soap and water solution to clean the heim joints. After cleaning, apply a light coat of lubricant to the threads and bearing surfaces.
You should also inspect your heim joints regularly for signs of wear or damage. If you see any signs of wear, replace the heim joint immediately.
Heim joints are a versatile and durable type of pivot joint that can be used in a variety of applications. They are commonly used in off-road vehicles, race cars, and other vehicles that are subjected to extreme conditions. When choosing a heim joint, it is important to consider the load rating, size, material, and finish. You should also regularly clean and lubricate your heim joints to keep them in good working condition.
