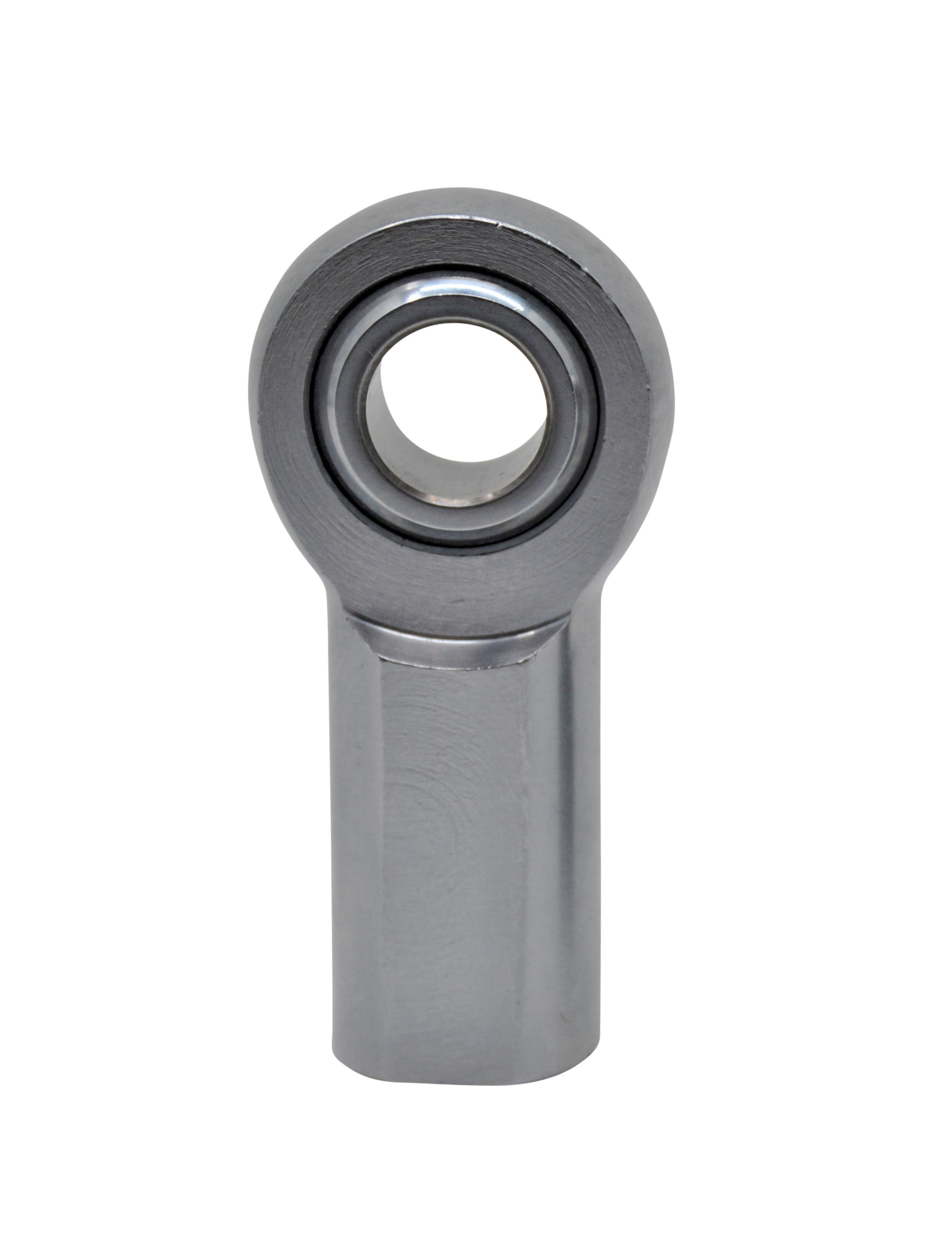

1/2" Female heim joint Right-hand (normal) thread, Heavy duty .500"
1/2" Female heim joint Right-hand (normal) thread, Heavy duty .500"
SKU:12FR
Regular price
$11.00 USD
Regular price
Sale price
$11.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

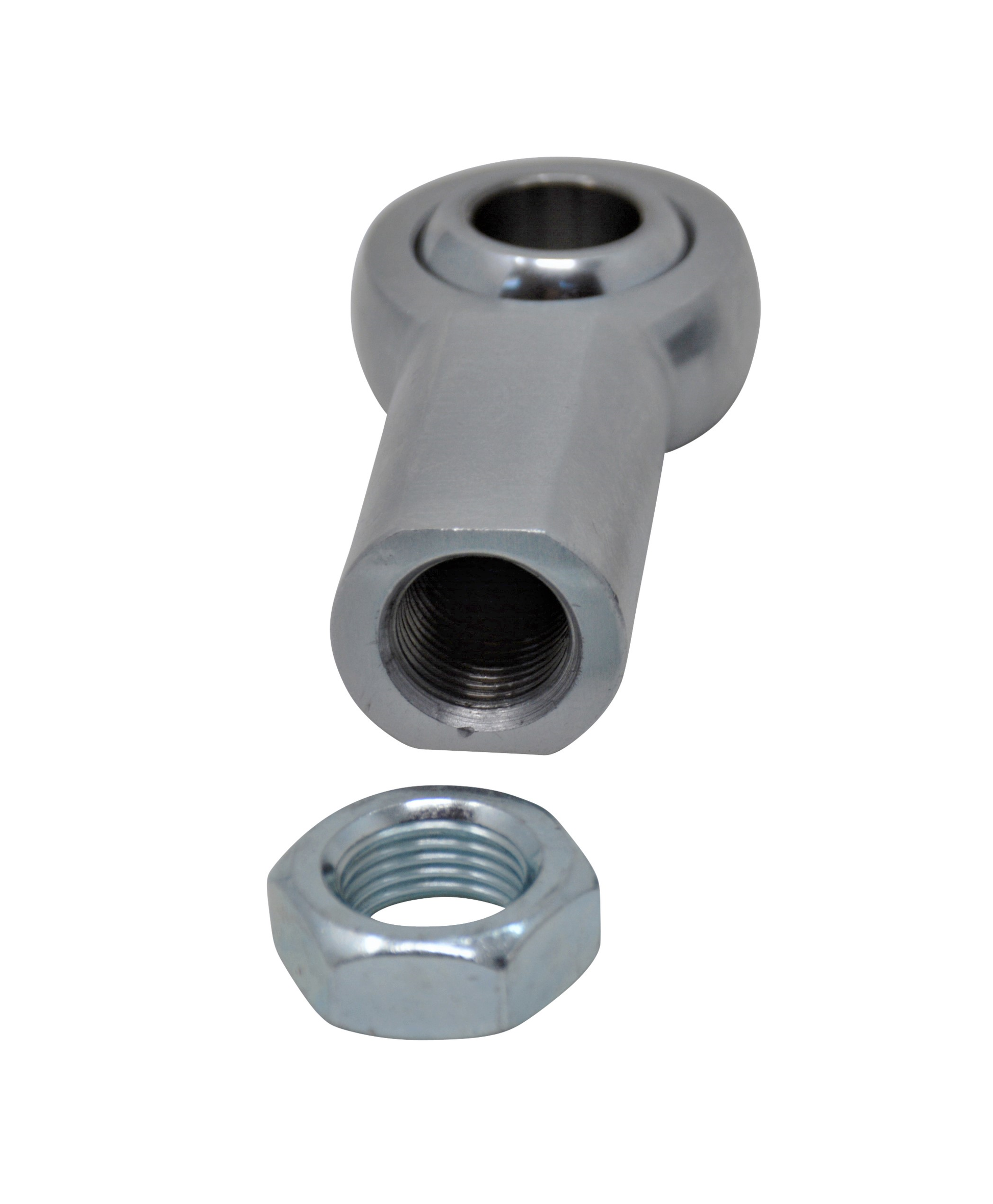

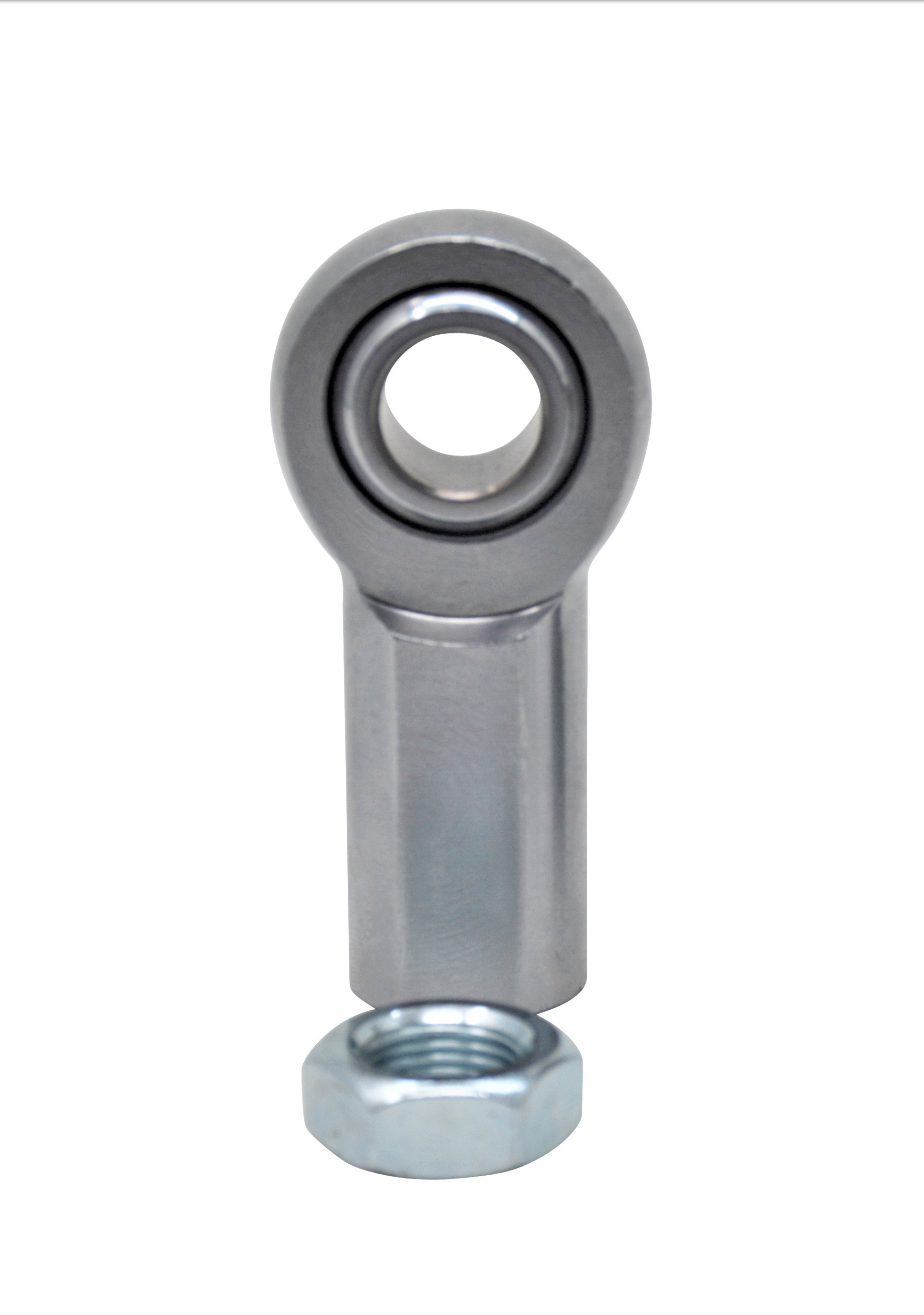

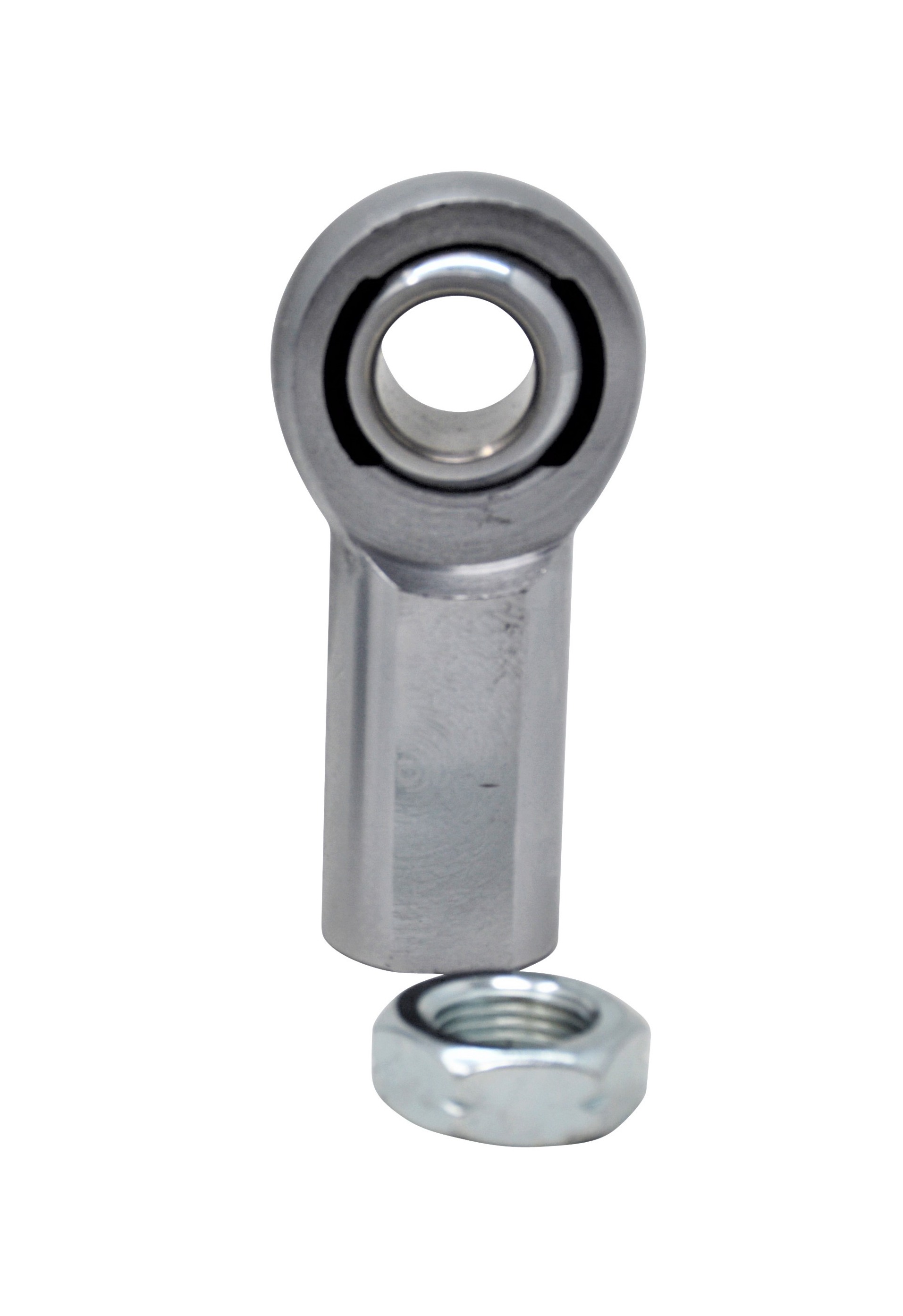

Benefits from your new female heim joint
- 4130 Aircraft-grade Chromoly steel
- Right-Hand thread (normal)
- Chrome plated finish

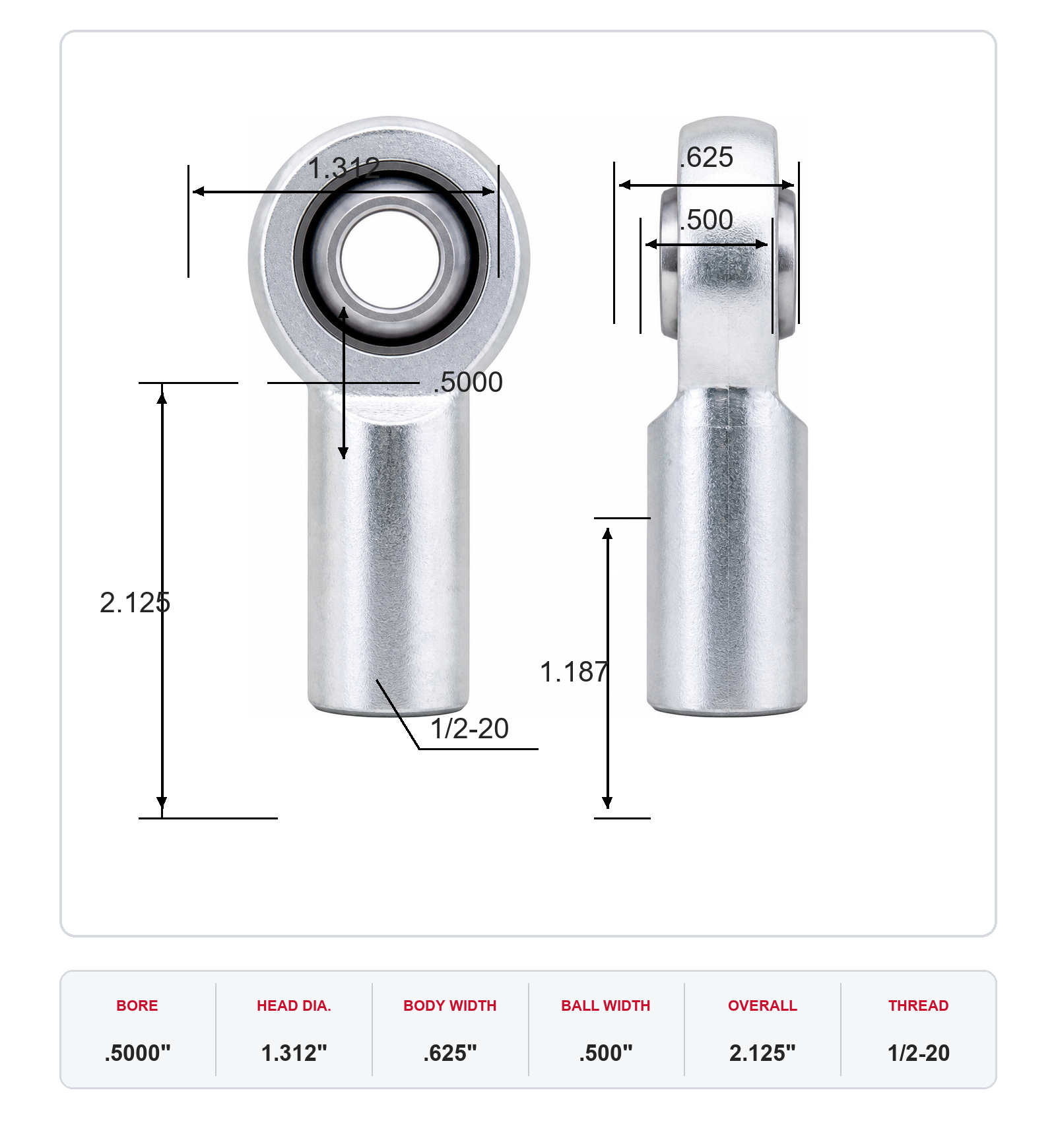

- 1/2-20tpi with 1/2” hole .500"
- 16000-pound load rating
- Nylon/PTFE lined
- Includes Jam nut
- 1.5" Thread length
- 16-degree misalignment"
They are heat-treated and hard chrome plated to give you a better finish for longer.
The race is Teflon impregnated nylon for superior durability.
These rod ends have a 1/2” female thread with 20tpi.
The 1/2” bore is the strongest way to make this heim.
Used on sand rails, a-arms, drag cars, rock crawlers or anywhere a high-quality heim is needed.
These HeimJoints.net joints are a great fit for your rock crawler Jeep Toyota Buggy or any project you may be building.
Common uses are steering joints and link joints on hot rods drag racing 4-link lowrider or custom builds.
